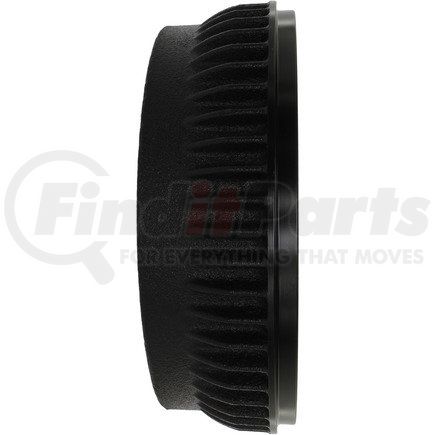

(888) 312-8812 Login SignupCENTRIC 122.66031 Centric Premium Brake Drum
Tap to view 4 more
$13899
Limited availability at this price!
1 Day Lead Time
Get it by Friday, Jul 3
CENTRIC 122.66031 Part Description
Manufacturer
Product Description
Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Black Painted Exterior
- For corrosion resistance
CENTRIC 122.66031 Specifications
Product Attributes
| Weight [cntrc] Kgs | 11.364 |
| Weight [cntrc] Lbs | 25.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 127.000 |
| Bolt Circle Diameter [cntrc] In | 5.000 |
| Hub Hole / Register [cntrc] Mm | 78.486 |
| Hub Hole / Register [cntrc] In | 3.090 |
| Height [cntrc] Mm | 97.282 |
| Height [cntrc] In | 3.830 |
| Friction Surface Width [cntrc] Mm | 84.074 |
| Friction Surface Width [cntrc] In | 3.310 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 285.500 MM |
| Maximum Brake Diameter (Discard) | 11.240 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 345.186 MM |
| Outside Diameter | 13.590 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 14.732 MM |
| Mounting Hole Diameter | 0.580 IN |
| Nominal Drum Diameter | 283.200 MM |
| Nominal Drum Diameter | 11.150 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00805890045878 |
CENTRIC 122.66031 Cross References
| Brand | Part Number |
|---|---|
| 9530, BD125207 | |
| N/A | FT09006, BD125207, E127-71-036, 8998, 6393500, 119530, 8998G, 15650085, 15693465, 15048488, 140622, 440-1662, 4401662, 6401662, 1009, AD8631, D9422, E9811, E12771036, 15622364, 87530, 1408-25514, YH140622, A4751, 23061, X21750, BD1618, 8844031, 36547058, 18B276, 18B276A, 177392 |
| RAYBESTOS | 9530, 9530R |
| Raybestos Brakes | 9530, 9530R |
| WAGNER | BD125207 |
CENTRIC 122.66031 Fits Vehicles
- Chevrolet Cargo Van (1997-2000, 2003-2004)
- GMC Yukon (1998-2000)
- GMC Savana 1500 (1996-2002)
- GMC C1500 Suburban (1992-1999)
- Chevrolet Tahoe (1998-2000)
- Chevrolet Suburban 1500 (2000)
- Chevrolet Express 1500 (1996-2002)
- Chevrolet C1500 Suburban (1992-1999)
