(888) 312-8812 Login SignupCENTRIC 122.66009 Centric Premium Brake Drum
Tap to view 4 more
$20899
Limited availability at this price!
In Stock
Get it by Friday, Jul 24
CENTRIC 122.66009 Part Description
Manufacturer
Product Description

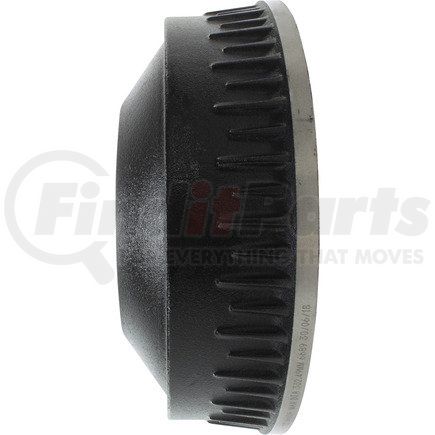

Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Black Painted Exterior
- For corrosion resistance
CENTRIC 122.66009 Specifications
Product Attributes
| Weight [cntrc] Kgs | 20.682 |
| Weight [cntrc] Lbs | 45.500 |
| Mounting Type [cntrc] | Behind the Hub |
| Bolt Circle Diameter [cntrc] Mm | 165.100 |
| Bolt Circle Diameter [cntrc] In | 6.500 |
| Hub Hole / Register [cntrc] Mm | 116.586 |
| Hub Hole / Register [cntrc] In | 4.590 |
| Height [cntrc] Mm | 141.986 |
| Height [cntrc] In | 5.590 |
| Friction Surface Width [cntrc] Mm | 91.186 |
| Friction Surface Width [cntrc] In | 3.590 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 332.500 MM |
| Maximum Brake Diameter (Discard) | 13.090 IN |
| Bolt Hole Quantity | 8 |
| Outside Diameter | 388.874 MM |
| Outside Diameter | 15.310 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 15.494 MM |
| Mounting Hole Diameter | 0.610 IN |
| Nominal Drum Diameter | 330.200 MM |
| Nominal Drum Diameter | 13.000 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00805890045755 |
CENTRIC 122.66009 Cross References
| Brand | Part Number |
|---|---|
| 8027, BD60359, 06260588, 6260588, W8810550 | |
| BENDIX | 140363 |
| EUCLID | E8365 |
| N/A | BD60359, E127-71-014, 63 93 760, 6393760, 8851, 8851C, 8851CG, 118027, 6260588, 06260588, W8810550, 440-1225, 4401225, 6401225, 823, AD8609, D5277, E12771014, 15545363, 48716, 738027, 87282, 1408-25368, YH140363, 23070, X21576, BD1149, 8844009, 18B111, 177286, 177368, 36547040 |
| RAY | 8027 |
| RAYBESTOS | 8027, 8027R |
| Raybestos Brakes | 8027, 8027R |
| WAGNER | BD60359 |
CENTRIC 122.66009 Fits Vehicles
- GMC C3500HD (1996)
- Workhorse P42 (1999-2005)
- Workhorse P32 (1999-2005)
- Workhorse P30 (2000-2005)
- GMC P35/P3500 Van (1974)
- GMC P25/P2500 Van (1974)
- GMC K25/K2500 Suburban (1972-1974)
- GMC K25/K2500 Pickup (1972-1974)
- GMC G35/G3500 Van (1974)
- GMC C35/C3500 Pickup (1974)
- GMC C25/C2500 Suburban (1973-1974)
- GMC C25/C2500 Pickup (1973-1974)
- Chevrolet P30 Van (1974)
- Chevrolet P20 Van (1974)
- Chevrolet K20 Pickup (1972-1974)
- Chevrolet G30 Van (1974)
- Chevrolet C30 Pickup (1974)
- Chevrolet C20 Pickup (1973-1974)
- GMC R2500 Suburban (1987-1991)
- GMC R2500 (1987-1989)
- GMC P3500 (1979-1999)
- GMC P35 (1975-1978)
- GMC P2500 (1979-1989)
- GMC P25 (1975-1978)
- GMC K3500 (1990-1996)
- GMC K2500 Suburban (1979-1980, 1992-1996)
- GMC K25 Suburban (1975-1978)
- GMC K2500 (1979-1980, 1990-2000)
- GMC K25 (1975-1978)
- GMC G3500 (1979-1982, 1990-1995)
- GMC G35 (1975-1978)
- GMC C3500 (1979-1980, 1990-1996)
- GMC C35 (1975-1978)
- GMC C2500 Suburban (1979-1986, 1992-1996)
- GMC C25 Suburban (1975-1978)
- GMC C2500 (1979-1986, 1992-2000)
- GMC C25 (1975-1978)
- Chevrolet R2500 Suburban (1989-1991)
- Chevrolet R2500 (1989)
- Chevrolet R20 Suburban (1987-1988)
- Chevrolet R20 (1987-1988)
- Chevrolet P30 (1975-1999)
- Chevrolet P20 (1975-1989)
- Chevrolet K3500 (1990-1996)
- Chevrolet K2500 Suburban (1992-1996)
- Chevrolet K2500 (1990-2000)
- Chevrolet K20 Suburban (1972-1980)
- Chevrolet K20 (1975-1980)
- Chevrolet G30 (1975-1982, 1990-1995)
- Chevrolet C3500 (1990-1996)
- Chevrolet C30 (1975-1980)
- Chevrolet C2500 Suburban (1992-1996)
- Chevrolet C2500 (1992-2000)
- Chevrolet C20 Suburban (1973-1986)
- Chevrolet C20 (1975-1986)
