CENTRIC 122.63004 Part Description
Manufacturer
Features & Benefits
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Black Painted Exterior
- For corrosion resistance

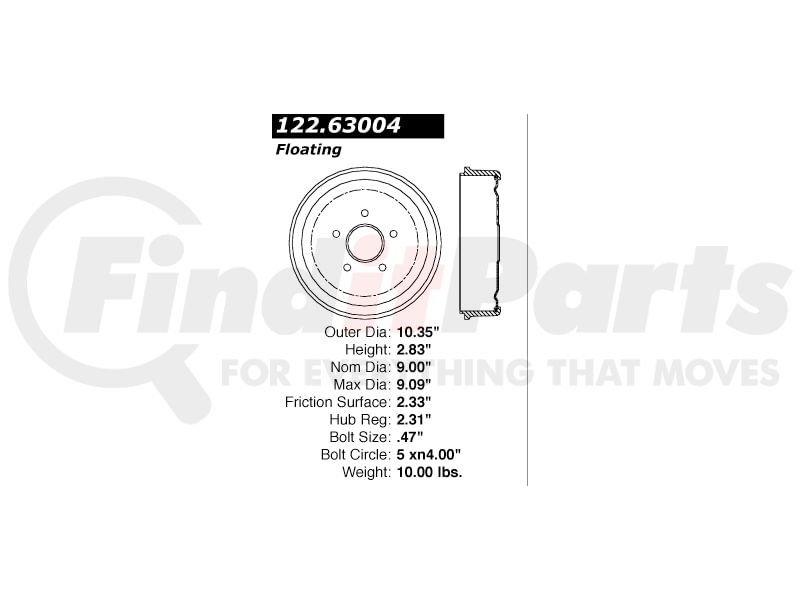

CENTRIC 122.63004 Specifications
Product Attributes
| Weight [cntrc] Kgs | 4.545 |
| Weight [cntrc] Lbs | 10.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 101.600 |
| Bolt Circle Diameter [cntrc] In | 4.000 |
| Hub Hole / Register [cntrc] Mm | 58.674 |
| Hub Hole / Register [cntrc] In | 2.310 |
| Height [cntrc] Mm | 71.882 |
| Height [cntrc] In | 2.830 |
| Friction Surface Width [cntrc] Mm | 59.182 |
| Friction Surface Width [cntrc] In | 2.330 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 230.900 MM |
| Maximum Brake Diameter (Discard) | 9.090 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 262.890 MM |
| Outside Diameter | 10.350 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 11.940 MM |
| Mounting Hole Diameter | 0.470 IN |
| Nominal Drum Diameter | 228.600 MM |
| Nominal Drum Diameter | 9.000 IN |
