MPA Electrical BR55003G - Quality-Built Black Series Coated Rotor
- Part Number
- BR55003G
- Manufacturer
- MPA ELECTRICAL
- Description
-
Quality-Built Black Series Coated Rotor
details
$10299
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MPA ELECTRICAL part description

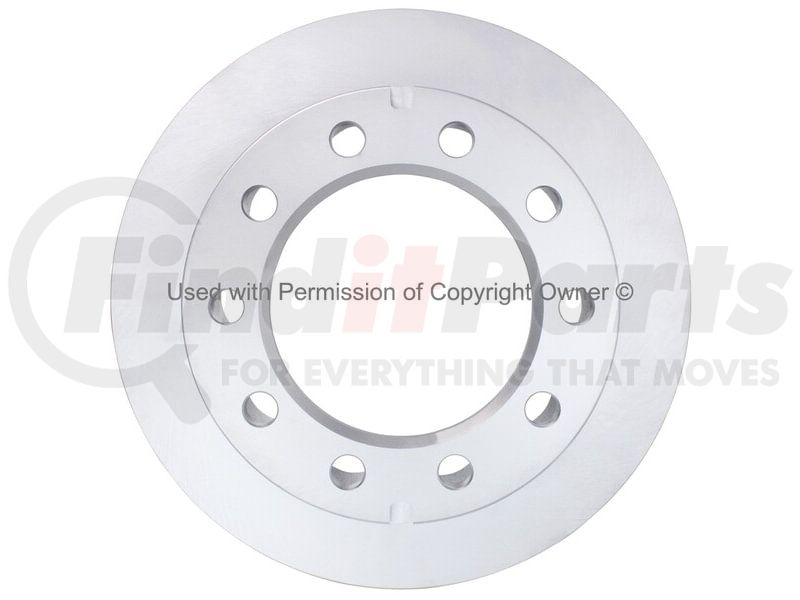

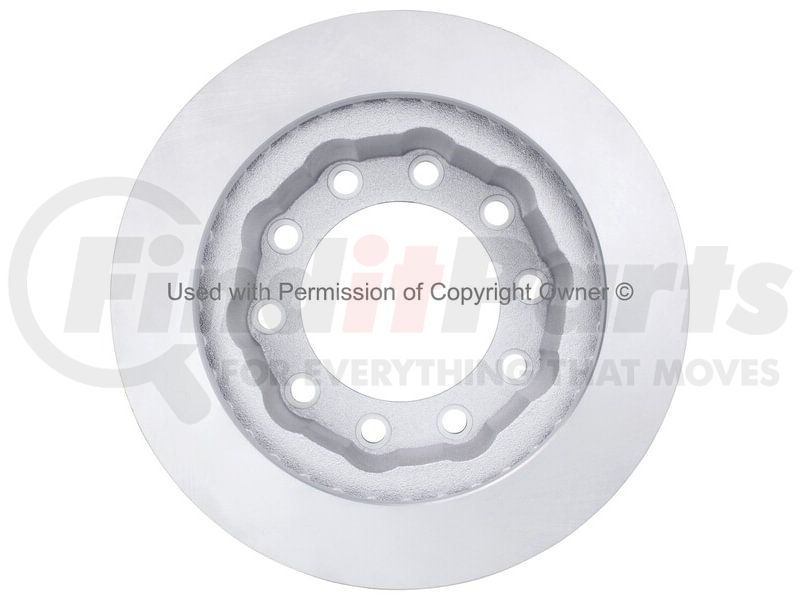

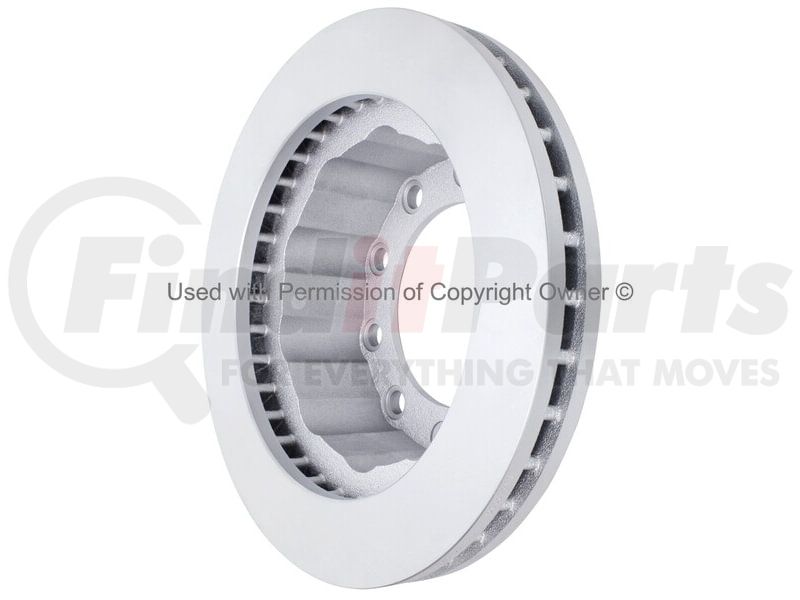

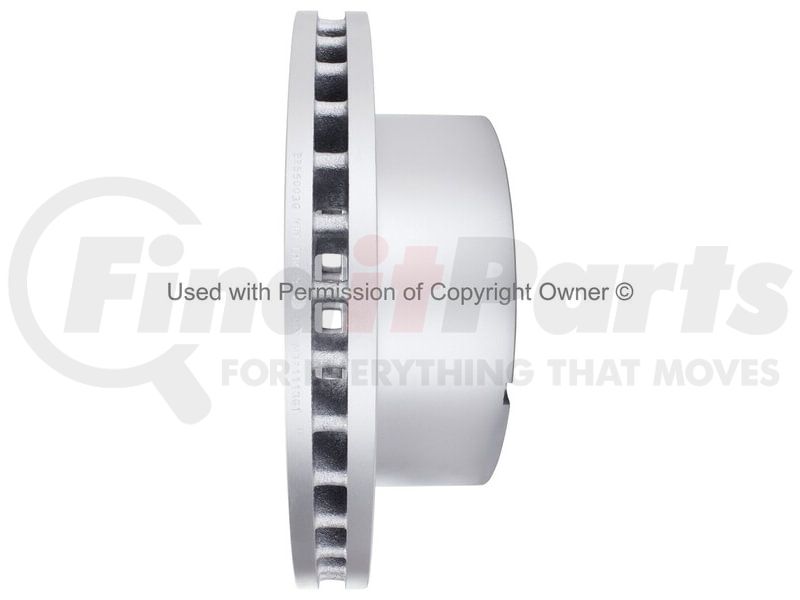

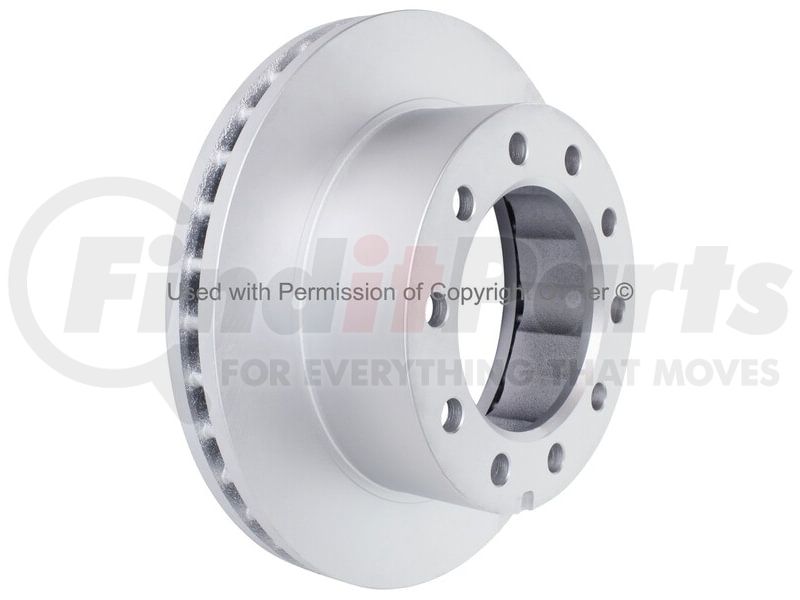

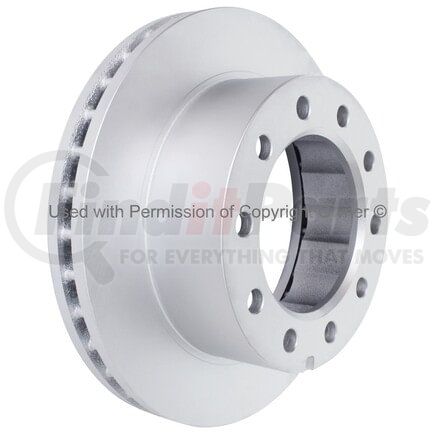

Disc Brake Rotor
Product Description
Quality-Built Black Series Coated Rotor
Application Summary
Chevrolet C3500HD 1994-1992, P30 1996-1979, GMC C3500HD 1994-1991, P35 1978-1975, P3500 1996-1979
Features & Benefits
- OE Style Symmetric Vane Designs
- Non-directional friction surfaces
- Precision machined mounting surfaces
- Installation-ready without cleaning
- Q-Shield Protective Coatings
- High-Carbon Metullargy
- G11H18 Alloys
- Mill balanced
- Straddle Cut to eliminate DTV
Black Series Brake Rotor, Brake Rotor, MPA Brake Rotot, Quality-Built Brake Rotor, Coated Rotor, Black Coated Rotor
Product Attributes
| Finish | Coated |
| Product Condition | New |
| Discard Thickness | 37.2 MM |
| Discard Thickness | 1.5 IN |
| Nominal Thickness | 39.0 MM |
| Nominal Thickness | 1.5 IN |
| Disc Finish | Coated |
| Hat Finish | Coated |
| Rust Resistant Coating | Yes |
| Outside Diameter | 349.0 MM |
| Outside Diameter | 13.7 IN |
| Grade Type | Regular |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 139.8 MM |
| Mounting Bolt Hole Circle Diameter | 184.2 MM |
| Mounting Bolt Hole Circle Diameter | 7.250 IN |
| Mounting Bolt Hole Diameter | 0.673 IN |
| Mounting Bolt Hole Diameter | 17.1 MM |
| Stud/Lug Hole Quantity | 10 |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00190037436344 |
Fits Vehicles
- Chevrolet C3500HD (1992-1994)
- GMC C3500HD (1991-1994)
- GMC P3500 (1979-1996)
- GMC P35 (1975-1978)
- Chevrolet P30 (1979-1996)
