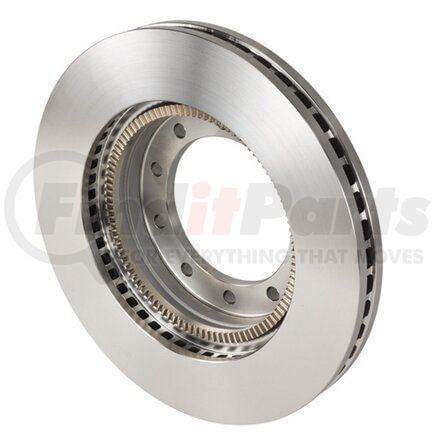

PERFORMANCE FRICTION part description

Varies One-Piece Rotors (Smooth): U-shaped Retrofit Disc Cross to D6178AM

Product Description

Medium Duty Retrofit Rotor

Product Attributes

Rust Resistant Coating None
Unspsc 25171715
ABS Sensor Ring Included Yes
Bolt Pattern 10x11.25in / 10x285.75mm
Center Hole Size (in) 8.34
Center Hole Size (mm) 211.9
Construction Full cast
Cross Drilled No
Discard Thickness (in) 1.309
Discard Thickness (mm) 33.3
Inner Bearing Included None
Number of Bolt Holes 10
Number of Studs None
Outside Diameter (In) 15.00
Outside Diameter (MM) 381
Overall Height (in) 7.13
Overall Height (MM) 181.0
Rotation Direction Non-directional
Slotted No
Solid Or Vented Vented
Studs Included None
Style OE Replacement
Surface Finish Non-directional
Part Type Code 1896

PERFORMANCE FRICTION 381.181.20 Cross Reference

We have 2 alternatives for the 381.181.20 by PERFORMANCE FRICTION:

Fits Vehicles

  • International S1954 (1984-1989)
  • International S1854 (1984-1989)
  • International S1853 (1984-1989)
  • International S1754 (1981-1989)
  • International S1753 (1984-1989)
  • International S1724 (1980-1984)
  • International S1723 (1980-1985)
  • International S1654 (1984-1989)
  • International 7100 (1990-1992)
  • International 4900 (1990-2001)
  • International 4800 (1990-2001)
  • International 4700LPX (1996-2001)
  • International 4700LP (1991-2001)
  • International 4700 (1990-2001)
  • International 4600LP (1990-1994)
  • International 4600 (1990-1994)
  • International 3900FC (1991-1994)
  • International 3800 (1990-1997)
  • International 3700 (1990-1994)
  • International 3600 (1992-1997)
  • International M1600 Metro II (1987-1989)
  • International M1400 Metro II (1987-1989)
  • International 1652SC (1987-2001)
  • International 1452SC (1987-1991)
  • Kenworth T370 (2008)
  • Kenworth T270 (2008)
  • Kenworth T170 (2008)
  • Freightliner M2 106 (2004-2008)
  • Peterbilt 335 (2008-2010)
  • Peterbilt 330 (2008-2010)
  • Workhorse W20 (2007-2008)
  • Workhorse W22 (2001-2009)

Headquartered in Clover, South Carolina, Performance Friction® is a leading brake manufacturer worldwide. It traces its roots to 1984 when it first launched its revolutionary brake pads made of non-asbestos friction material under the CarbonMetallic© brand. Ten years after its founding, it began developing iron brake discs using unique dynamic symmetry properties. Since then, the company has constantly been evolving, launching new product lines and gaining even more recognition in the racing world. PFC Brakes continues to live up to its promise of creating products with “No Compromises.” Whether severe duty or motorsport brakes, PFC Brakes delivers consistent quality in any condition.
