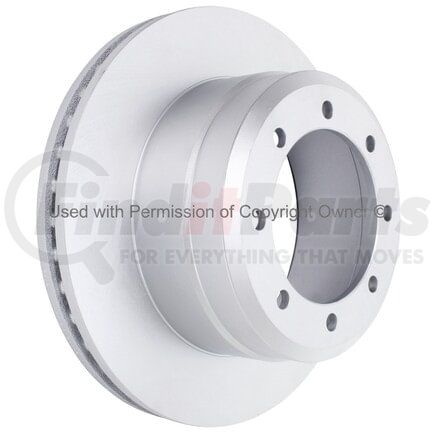

MPA Electrical BR54136G - Quality-Built Disc Brake Rotor - Black Series, Coated
- Part Number
- BR54136G
- Manufacturer
- MPA ELECTRICAL
- Description
-
Quality-Built Disc Brake Rotor - Black Series, Coated
details
$9099
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MPA ELECTRICAL part description
Quality-Built Disc Brake Rotor - Black Series, Coated
Product Description
Quality-Built Black Series Coated Rotor
Application Summary
Ford F-350 Super Duty 2013-2005, F-450 Super Duty 2012-2010, F-550 Super Duty 2012-2011
Features & Benefits
- OE Style Symmetric Vane Designs
- Non-directional friction surfaces
- Precision machined mounting surfaces
- Installation-ready without cleaning
- Q-Shield Protective Coatings
- High-Carbon Metullargy
- G11H18 Alloys
- Mill balanced
- Straddle Cut to eliminate DTV
Black Series Brake Rotor, Brake Rotor, MPA Brake Rotot, Quality-Built Brake Rotor, Coated Rotor, Black Coated Rotor
Product Attributes
| Product Condition | New |
| Finish | Coated |
| Discard Thickness | 32.4 MM |
| Discard Thickness | 1.3 IN |
| Nominal Thickness | 34.0 MM |
| Nominal Thickness | 1.3 IN |
| Disc Finish | Coated |
| Hat Finish | Coated |
| Rust Resistant Coating | Yes |
| Outside Diameter | 340.0 MM |
| Outside Diameter | 13.4 IN |
| Grade Type | Regular |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 128.1 MM |
| Mounting Bolt Hole Circle Diameter | 156.0 MM |
| Mounting Bolt Hole Circle Diameter | 6.142 IN |
| Mounting Bolt Hole Diameter | 0.512 IN |
| Mounting Bolt Hole Diameter | 13.0 MM |
| Stud/Lug Hole Quantity | 8 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00190037436115 |
Fits Vehicles
- Ford F-550 Super Duty (2011-2012)
- Ford F-450 Super Duty (2010-2012)
- Ford F-350 Super Duty (2005-2013)
