CENTRIC 122.61027 Part Description
Manufacturer
Product Description

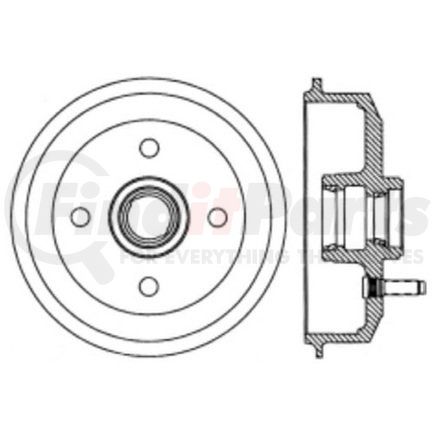

Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
CENTRIC 122.61027 Specifications
Product Attributes
| Weight [cntrc] Kgs | 5.227 |
| Weight [cntrc] Lbs | 11.500 |
| Mounting Type [cntrc] | Hub & Drum |
| Bolt Circle Diameter [cntrc] Mm | 107.950 |
| Bolt Circle Diameter [cntrc] In | 4.250 |
| Stud Thread Pitch [cntrc] In | 20 |
| Hub Hole / Register [cntrc] Mm | 62.992 |
| Hub Hole / Register [cntrc] In | 2.480 |
| Height [cntrc] Mm | 77.724 |
| Height [cntrc] In | 3.060 |
| Friction Surface Width [cntrc] Mm | 42.164 |
| Friction Surface Width [cntrc] In | 1.660 |
| Product Grade [cntrc] | Premium |
| Stud Thread Size | 0.500 IN |
| Maximum Brake Diameter (Discard) | 181.500 MM |
| Maximum Brake Diameter (Discard) | 7.146 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 216.916 MM |
| Outside Diameter | 8.540 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 12.700 MM |
| Nominal Drum Diameter | 177.800 MM |
| Nominal Drum Diameter | 7.000 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| UPC | 805890037750 |
CENTRIC 122.61027 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 2689, 2689R |
| N/A | BD60546, 87126, 8936, X30715, 8936C, 8936CG, 123.61027, E1FZ1113A, E3FZ1113A, BD1125, PDR0416, 140416, 202361, 6401443, 783, 8834027, AD8127, 177329, D2689, 36554024 |
CENTRIC 122.61027 Fits Vehicles
- Mercury Lynx (1981-1983)
- Ford Escort (1981-1983)
CENTRIC 122.61027 Cross References
We have 4 alternatives for the 122.61027 by CENTRIC:
