Centric 122.51014 - Centric Premium Brake Drum
$5549
MSRP: $63.41
Save: $7.92
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

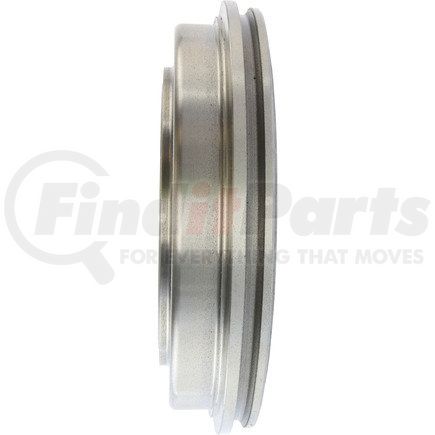

Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
Product Attributes
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 4.114 |
| Weight [cntrc] Lbs | 9.050 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 76.000 |
| Hub Hole / Register [cntrc] In | 2.992 |
| Height [cntrc] Mm | 55.600 |
| Height [cntrc] In | 2.189 |
| Friction Surface Width [cntrc] Mm | 41.000 |
| Friction Surface Width [cntrc] In | 1.614 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 205.200 MM |
| Maximum Brake Diameter (Discard) | 7.070 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 244.700 MM |
| Outside Diameter | 9.634 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 12.500 MM |
| Mounting Hole Diameter | 0.492 IN |
| Nominal Drum Diameter | 203.000 MM |
| Nominal Drum Diameter | 7.992 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890432791 |
Part Interchanges
CENTRIC 122.51014 Cross Reference
We have 3 alternatives for the 122.51014 by CENTRIC:
Fits Vehicles
- Hyundai Elantra (2007-2008)
