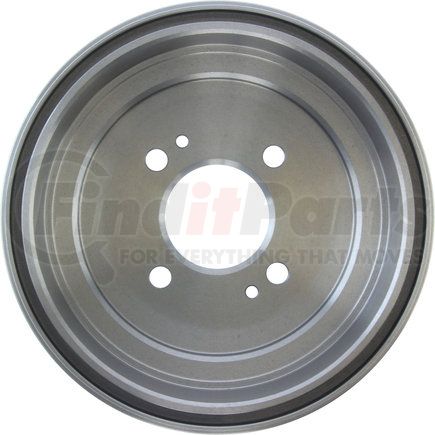

Centric 122.51013 - Centric Premium Brake Drum
$2499
MSRP: $44.26
Save: $19.27
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
Product Attributes
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 4.091 |
| Weight [cntrc] Lbs | 9.000 |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Hub Hole / Register [cntrc] Mm | 62.500 |
| Hub Hole / Register [cntrc] In | 2.461 |
| Height [cntrc] Mm | 57.700 |
| Height [cntrc] In | 2.272 |
| Friction Surface Width [cntrc] Mm | 40.100 |
| Friction Surface Width [cntrc] In | 1.579 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 205.200 MM |
| Maximum Brake Diameter (Discard) | 7.070 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 243.100 MM |
| Outside Diameter | 9.571 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 12.200 MM |
| Mounting Hole Diameter | 0.480 IN |
| Nominal Drum Diameter | 203.200 MM |
| Nominal Drum Diameter | 8.000 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890291275 |
Part Interchanges
CENTRIC 122.51013 Cross Reference
We have 3 alternatives for the 122.51013 by CENTRIC:
Fits Vehicles
- Hyundai Grand i10 (2015-2018)
- Dodge Attitude (2006-2012)
- Hyundai Accent (2006-2011)
- Kia Rio5 (2006-2011)
- Kia Rio (2006-2011)
