CENTRIC 122.45022 Part Description
Manufacturer
Product Description

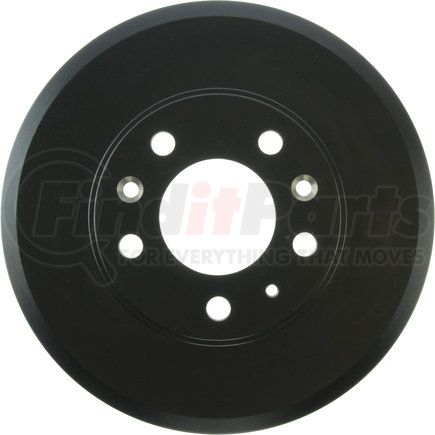

Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Black Painted Exterior
- For corrosion resistance
CENTRIC 122.45022 Specifications
Product Attributes
| Misc Holes [cntrc] | 3 |
| Weight [cntrc] Kgs | 7.500 |
| Weight [cntrc] Lbs | 16.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 72.000 |
| Hub Hole / Register [cntrc] In | 2.835 |
| Height [cntrc] Mm | 78.200 |
| Height [cntrc] In | 3.079 |
| Friction Surface Width [cntrc] Mm | 61.500 |
| Friction Surface Width [cntrc] In | 2.421 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 255.500 MM |
| Maximum Brake Diameter (Discard) | 10.060 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 295.000 MM |
| Outside Diameter | 11.614 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 13.750 MM |
| Mounting Hole Diameter | 0.541 IN |
| Nominal Drum Diameter | 253.700 MM |
| Nominal Drum Diameter | 9.988 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890106920 |
