CENTRIC part description

Technical Specifications:

Series C-Tek Series
Solid Or Vented Type Rotor Vented
Outside Diameter 11.61 in.
Discard Thickness 1.21 in.
Nominal Thickness 1.28 in.
Hub Hole/Whl Reg mm 77.7
Mounting Type Hub & Rotor
Vane Style Straight
UPC 805890051312
Harmonized Tariff Code 8708305030

Application Summary:

  • 1995 - 1998 Dodge Ram 1500 Van

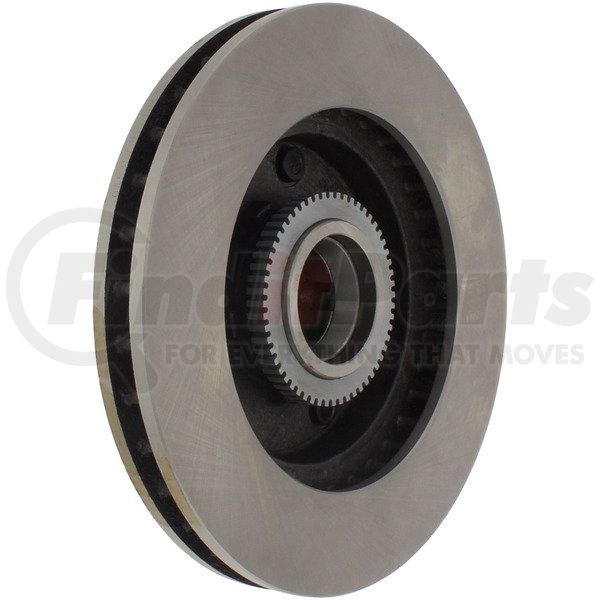

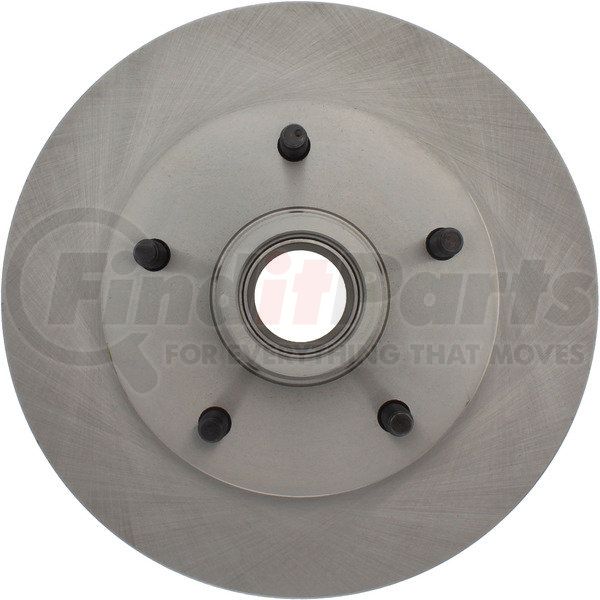

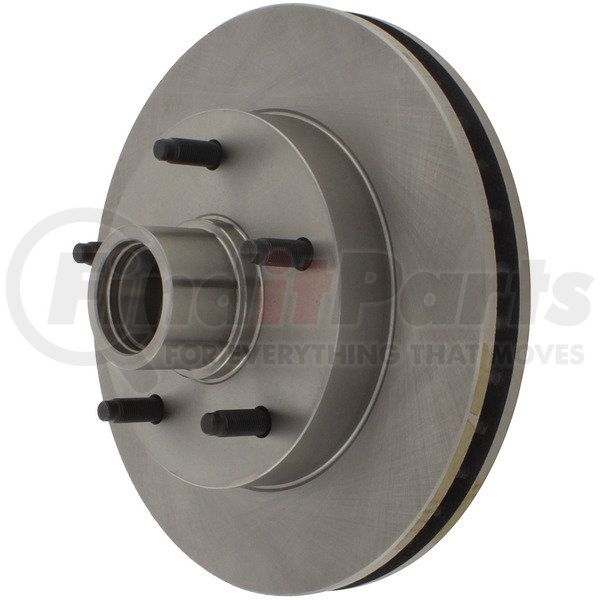

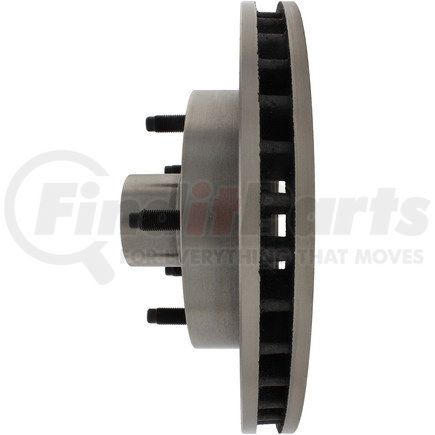

Centric® C-Tek™ Standard Disc Brake Rotor

Drive confidently knowing that you have a Centric® C-Tek™ standard disc brake rotor that ensures smoother and quieter stops. Engineered to original equipment specifications and using OE production processes, this brake rotor is an ideal choice for daily commuters looking for a straightforward replacement for their worn-out rotor.

Features & Benefits

  • Crafted using premium-quality G11H18 metallurgy for superior braking power and durability
  • Built and tested by experts to meet QS and ISO Quality System Standards
  • Centric’s machining processes ensure smooth braking for a more confident brake application
  • Double disc grinding prevents run out and guarantees parallelism for ideal disc thickness variation
  • Friction surface area features non-directional finish, which improves brake rotor and pad break-in
  • Precision-machined non-frictional surfaces for rotor balance and cleaner look
  • With high-quality protective coating for long-lasting rust protection
  • OE-style vane configurations provide thermal efficiency and proper heat transfer
Make Dodge
Model Ram 1500 Van
Year 1995

Product Description

C-Tek Standard Brake Rotor

Application Summary

1995 - 1998 Dodge Ram 1500 Van

Features & Benefits

  • Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket

C-Tek; Centric; Standard brake rotor; brake rotor; break rotor; rotors; rotor

Product Attributes

Discard Thickness 1.215 IN
Discard Thickness 30.86 MM
Nominal Thickness 1.283 IN
Nominal Thickness 32.60 MM
Stud Thread Diameter 0.500 IN
Outside Diameter 11.614 IN
Outside Diameter 295.00 MM
ABS Tone Ring Included Yes
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Bolt Thread Pitch 20.000 IN
Center Hole Diameter 3.059 IN
Center Hole Diameter 77.70 MM
Mounting Bolt Hole Circle Diameter 5.500 IN
Mounting Bolt Hole Circle Diameter 139.70 MM
Stud/Lug Hole Quantity 5
California Proposition 65 Text [basic] WARNING: Cancer and Reproductive Harm
Disc Mounting [cntrc] Hub & Rotor
Hub Hole/whl Reg [cntrc] Mm 77.7
Inner Bearing # [cntrc] 410.91005
Inner Seal # [cntrc] 417.660
Misc Holes [cntrc] 2
Outer Bearing # [cntrc] 410.91003
Prop 65 [cntrc] California Proposition 65
Unassigned_31 4.508 IN
Unassigned_31 114.50 MM
Vane Style [cntrc] Straight
Weight [cntrc] Kgs 12.050
Weight [cntrc] Lbs 26.500
Disc Mounting Hub & Rotor
Height 4.508 in
Height 114.50 MM
Hub Hole Diameter 77.7
Inner Bearing 410.91005
Inner Seal 417.660
Misc Holes 2
Outer Bearing 410.91003
Vane Style Straight
Weight 26.500

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 8708300050
Harmonized Tariff Code (HTS) 8708305030
NAFTA Preference Criterion Code B
UPC 00805890051312

CENTRIC 121.67028 Cross Reference

We have 8 alternatives for the 121.67028 by CENTRIC:

Fits Vehicles

  • Dodge Ram 1500 (1994-1999)
  • Dodge Ram 1500 Van (1995-1998)
