(888) 312-8812 Login SignupCENTRIC 121.66016 C-Tek Standard Brake Rotor
Tap to view 4 more
$8999
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jun 25
CENTRIC 121.66016 Part Description
Manufacturer
Product Description

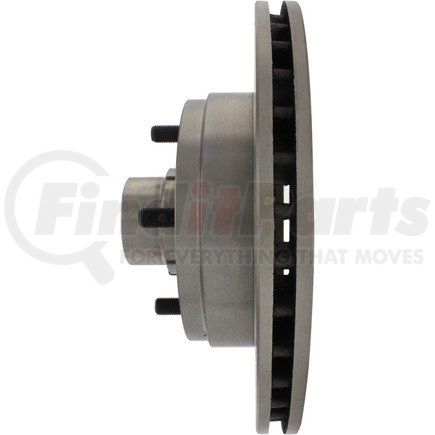

C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
CENTRIC 121.66016 Specifications
Product Attributes
| Product Grade [cntrc] | Standard |
| Inner Seal # [cntrc] | 417.66004 |
| Outer Bearing # [cntrc] | 410.91003 |
| Disc Mounting [cntrc] | Hub & Rotor |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 12.050 |
| Weight [cntrc] Lbs | 26.500 |
| Inner Bearing # [cntrc] | 410.91006 |
| Misc Holes [cntrc] | 0 |
| Discard Thickness | 24.500 MM |
| Discard Thickness | 0.965 IN |
| Nominal Thickness | 26.400 MM |
| Nominal Thickness | 1.039 IN |
| Stud Thread Diameter | 0.500 IN |
| Overall Height | 117.800 MM |
| Overall Height | 4.638 IN |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| Rotor Outside Diameter | 301.000 MM |
| Rotor Outside Diameter | 11.850 in |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 77.800 MM |
| Center Hole Diameter | 3.063 IN |
| Mounting Bolt Hole Circle Diameter | 127.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.000 IN |
| Stud/Lug Hole Quantity | 5 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890050988 |
CENTRIC 121.66016 Cross References
| Brand | Part Number |
|---|---|
| 56152, 56152RGS, 1056152, 52-125171, 52125171, BD125171 | |
| MAGMA PRODUCTS | PMR225190 |
| N/A | 52-125171, 52125171, BD125171, E126-71-021, 5578, BR5578, R93 720, 5578G, 107242, 15604984, 15679654, 15979754, PRT1464, 141464, 101780, 101780E, 86152, 483, AR8616E, D17494, E12671021, X50579, 27144, BR1785, 1056152, 56152, 56152R, 56152RGS, ZAR8616, 78-44016, 78944016, 7844016, 65355, 60048015, 177695 |
| RAYBESTOS | 56152, 56152FZN, 56152R |
| WAGNER | BD125171 |
CENTRIC 121.66016 Fits Vehicles
- GMC Safari (1990-2002)
- Chevrolet Astro (1990-2002)
