CENTRIC 121.66005 Part Description
Manufacturer
Product Description

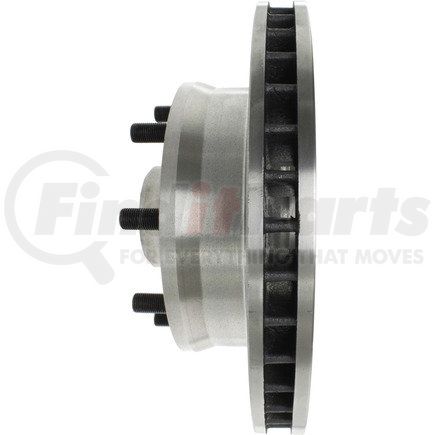

C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
CENTRIC 121.66005 Specifications
Product Attributes
| Outer Race # [cntrc] | 416.66000 |
| Weight [cntrc] Lbs | 38.600 |
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Standard |
| Inner Bearing # [cntrc] | 410.91035 |
| Vane Style [cntrc] | Straight |
| Disc Mounting [cntrc] | Hub & Rotor |
| Inner Seal # [cntrc] | 417.66000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Outer Bearing # [cntrc] | 415.66000 |
| Weight [cntrc] Kgs | 17.550 |
| Discard Thickness | 30.860 MM |
| Discard Thickness | 1.215 IN |
| Nominal Thickness | 32.800 MM |
| Nominal Thickness | 1.291 IN |
| Stud Thread Diameter | 0.563 IN |
| Overall Height | 121.000 MM |
| Overall Height | 4.764 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 317.500 MM |
| Rotor Outside Diameter | 12.500 in |
| Stud/Lug Hole Quantity | 8 |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Center Hole Diameter | 4.591 IN |
| Center Hole Diameter | 116.600 MM |
| Bearings Included | No |
| Bolt Thread Pitch | 18.000 IN |
| Solid Or Vented Type Rotor | Vented |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Country of Origin (Primary) | CN |
| NAFTA Preference Criterion Code | B |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00805890050889 |
CENTRIC 121.66005 Cross References
| Brand | Part Number |
|---|---|
| 105010, 5010, 5010RGS, 52-60402, 5260402, BD60402, 3990928, 14012952, 15641577, 15674408, 18001433, 18008456, 141939, PRT1186, 105010R, 5010R, BD125330 | |
| BENDIX | 141186 |
| EUCLID | E8405 |
| N/A | 52-60402, BD60402, BD125330, 5260402, E126-71-010, E125-71-010, 5535, BR5535, R93 740, 64 93 740, 5518, 107221, 5535G, 15641577, 15674408, 14012952, 18001433, 18008456, 3990928, 141186, 141939, PRT1186, 101350, 85679, 4885679, 517, AR8605, AR8605E, D5010, E8405, E12571010, E12671010, 5535DSR, 210098, 210098C, 55358, 5535DSL, 27057, X50216, BR1009, 105010, 105010R, 5010, 5010R, 5010RGS, 7844005, 78944005, 8944005, 78-44005, 65245, 177613, 60048004 |
| RAY | 5010 |
| RAYBESTOS | 5010R |
| WAGNER | 5260402, BD60402 |
CENTRIC 121.66005 Fits Vehicles
- Chevrolet P30 (1975-1995)
- Chevrolet P20 (1975-1989)
- Chevrolet P30 Van (1971-1974)
- Chevrolet P20 Van (1971-1974)
- Chevrolet G30 Van (1971-1974)
- Chevrolet C30 Pickup (1971-1974)
- Chevrolet C20 Pickup (1971-1974)
- Chevrolet G30 (1975-1992)
- Chevrolet C30 (1975-1980)
- Chevrolet C20 Suburban (1971-1986)
- Chevrolet C20 (1975-1986)
- GMC R2500 Suburban (1987-1991)
- GMC R2500 (1987-1989)
- GMC P3500 (1979-1995)
- GMC P35 (1975-1978)
- GMC P2500 (1979-1989)
- GMC P25 (1975-1978)
- GMC G3500 (1979-1992)
- GMC G35 (1975-1978)
- GMC C3500 (1979-1980)
- GMC C35 (1975-1978)
- GMC C2500 Suburban (1979-1986)
- GMC C25 Suburban (1975-1978)
- GMC C2500 (1979-1986)
- GMC C25 (1975-1978)
- GMC P35/P3500 Van (1971-1974)
- GMC P25/P2500 Van (1971-1974)
- GMC G35/G3500 Van (1971-1974)
- GMC C35/C3500 Pickup (1971-1974)
- GMC C25/C2500 Suburban (1971-1974)
- GMC C25/C2500 Pickup (1971-1974)
- Chevrolet R2500 Suburban (1989-1991)
- Chevrolet R2500 (1989)
- Chevrolet R20 Suburban (1987-1988)
- Chevrolet R20 (1987-1988)
