(888) 312-8812 Login SignupU-Type Disc Brake Rotor with 17.08" Diameter, 1.77" Disc Thickness, 10-Holes

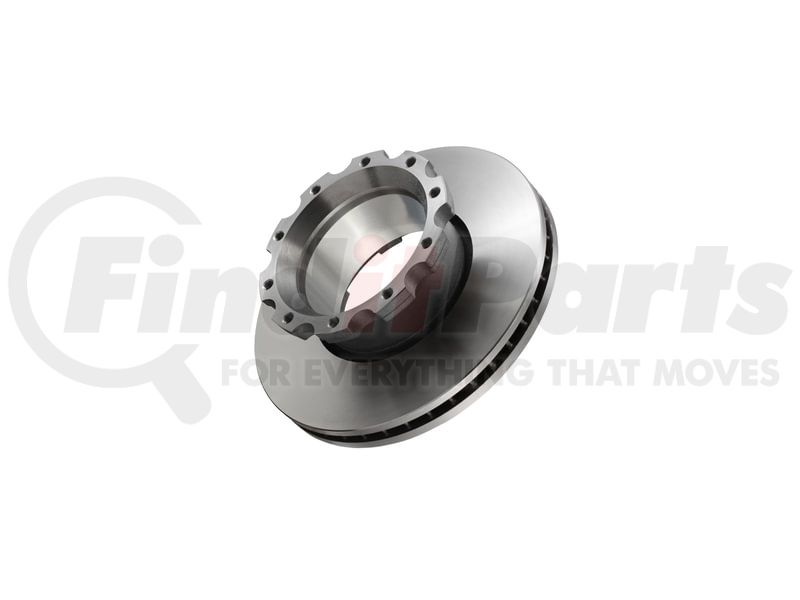

The Webb Disc Brake Rotor brings a fresh braking surface to MCI coach drive axles equipped with Meritor EX225 air disc brakes. As a U-type rotor with ten bolt holes on a 10.50-inch bolt circle and an 8.50-inch pilot, it follows the mounting pattern of that brake, so those details decide the fit. Supplied in protective packaging, the Webb 55060P reaches the shop without the nicks and surface rust that unprotected rotors can pick up in storage. Coach operators get smooth, even stops for passengers and a brake job that goes together right the first time.
| Bolt Circle Diameter (in) | 10.5 |
| Bolt Hole Quantity | 10 |
| Overall Diameter (in) | 17.08 |
| Brake System | ADB |
| Disc Thickness (in) | 1.77 |
| Minimum Thickness - Discard (in) | 1.46 |
| Overall Depth (in) | 5.65 |
| Pilot Diameter (in) | 8.5 |
| Type | U |
| Bolt Hole Size (in) | 5/8-18 UNF |
Be the first to review this product!
In business since 1946, Webb® has been a trusted brand for high-quality brake and wheel hub components in the heavy duty transportation industry. The company maintains an extensive catalog of OEM and aftermarket brake drums, brake rotors and calipers, and wheel hubs for Class 6, 7, and 8 trucks and heavy duty trailers. Each Webb product is made of premium materials and engineered for reduced weight without compromising structural strength or balance. All parts are also manufactured using the latest innovations, including advanced wear indicators and cool running vent technology to help minimize wear and make maintenance and repairs easier. Combined with a first-class customer service and after-sales support, customers can count on Webb products to keep their trucks running safely and smoothly for years to come.
