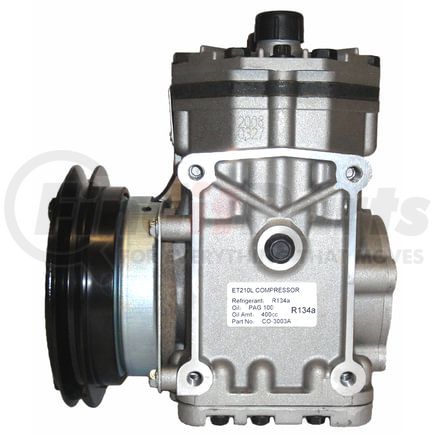

Name: Sunair CO-3103CA A/C Compressor
SKU: co3103ca
Price: 560.99 USD
Availability: InStock

SUNAIR part description

Product Description

A/C Compressor

Product Attributes

Refrigerant Type	R134A
Compatible Refrigerant Oil Type	PAG 46
Oil Filled	Yes
Pulley Groove Quantity	A1
Terminal Type	Pin
Distance From Clutch To Mounting Flange	2.72 IN
Distance From Clutch To Mounting Flange	69 MM
Clutch Included	Yes
Coil Clock Position	Wire Lead
Compressor Type	ET210L
Coil Voltage	12 2H
Terminal Quantity	1
Pulley Belt Type	V-belt
Mounting Type	Tube-O
Pulley Outside Diameter	6 IN
Pulley Outside Diameter	152 MM

Additional Information

Country of Origin (Primary)	CN
Canadian Harmonizing Tariff Code	8414308030
Harmonized Tariff Code (Schedule B)	8414308030
Harmonized Tariff Code (HTS)	8414308030
Warranty Time	12
Warranty Time UOM	MO
UPC	00818836021911
VMRS Code	001001002

Part Interchanges
