SUNAIR CO-1048CA Part Description
Manufacturer
Product Description

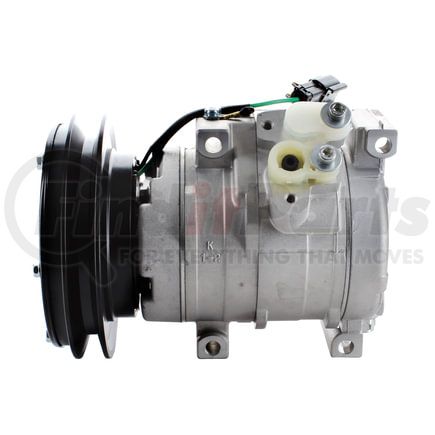

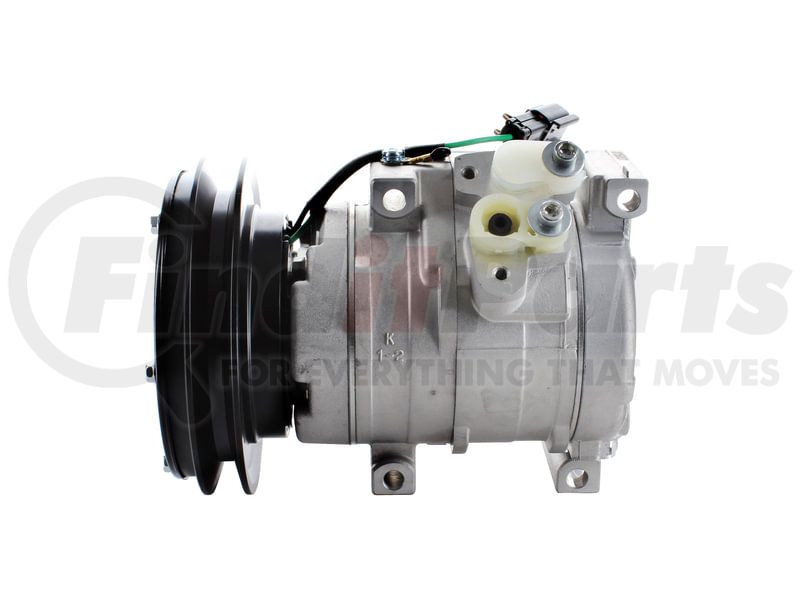

A/C Compressor 10S15C B1 152mm 24V PT-4114
Features & Benefits
- 24V A/C system with a failed compressor in 24V equipment using the 10S15C direct-mount compressor style
- Combines with 152 mm pulley, 24V clutch and PAG 46 oil
- 10S15C compressor with single-groove V-belt pulley for 24V equipment using the 10S15C direct-mount compressor style
- Circulates refrigerant in the heavy-duty A/C system for the matching application
Sunair 10S15C A/C Compressor
If a 24V A/C system loses refrigerant circulation through a failed compressor, the Sunair 10S15C A/C Compressor pairs a 10S15C compressor with a 152 mm single-groove pulley and 24V clutch. Designed with a 24V compressor assembly charged with PAG 46 oil, the design suits 24V equipment that uses the 10S15C direct-mount compressor style. Within the supported system, the Sunair CO-1048CA uses the single-groove belt drive while circulating refrigerant through the heavy-duty A/C loop. In operation, it returns the compressor and clutch in the electrical and pulley design required by the system.
SUNAIR CO-1048CA Specifications
Product Attributes
| Compressor Type | 10S15C |
| Coil Voltage | 24 2H |
| Gauge Line (IN) | 2.88 IN |
| Gauge Line (MM) | 73.2 MM |
| Mounting Type | Direct Mount |
| New Or Remanufactured Compressor | New |
| Oil Filled | Yes |
| Pulley Belt Type | V-belt |
| Pulley Groove Quantity | 1 |
| Pulley Outside Diameter (in) | 5.98 IN |
| Pulley Outside Diameter (mm) | 152 mm |
| Terminal Quantity | 1 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Coil Clock Position | Wire Lead |
| Clutch Included | Yes |
Additional Information
| Country of Origin (Primary) | MY |
| Harmonized Tariff Code (Schedule B) | 8414308030 |
| UPC | 00814341021958 |
| VMRS Code | 001001002 |
SUNAIR CO-1048CA Cross References
| Brand | Part Number |
|---|---|
| 1-800-Radiator | C2501 |
| 1800RADIATOR | C2501 |
| A&I Products | A4436025 |
| AIRSOURCE | 5938, MEI5938 |
| AP AIR INC | 503124, 5031243 |
| APEX | 124259 |
| COOL STAR | 3101604 |
| DENSO | 4472204052, 4472204053, 4472204781 |
| Everco | 967105 |
| FJC | 212143 |
| FOUR SEASONS | 967105, 198318 |
| GPD | 6512875 |
| Global Parts Distributors LLC | 6512875 |
| HITACHI AUTOMOTIVE | 4431081, 4436025 |
| Hitachi Automotive | 263G672131 |
| JOHN DEERE | 4431081, 4436025, SE502087 |
| KENWORTH | 7787650163 |
| KOBELCO | 20Y9796120, 20Y9796121 |
| KOMATSU | 1549117842, 4185623162, 4210711210, 4210731220, 4210731221, 4472204781, 17A9114810, 20Y8101260, 20Y9796121, 418S623160, 418S623161 |
| Komatsu | 0K24261K00A, 1959118990, 4210731228 |
| NAPA SVP | 111050 |
| OMEGA-DONOTUSE | 2011582, 2011582AM |
| Omega | 2011582, 2011582AM |
| Omega Environmental Technologies | 2011582, 2011582AM |
| RANSHU | 140230NEW |
| RED DOT | 75R9034, RD5140690P |
| RIG TOUGH | 3101604 |
| ROAD CHOICE | RCACC1272 |
| Sunair Products | 3003855, 3003855A, 3101604 |
| TRUCK AIR | 033179 |
| UNIVERSAL AIR CONDITIONER (UAC) | CO11301C |
