CENTRIC 120.79022 Part Description
Manufacturer
Product Description

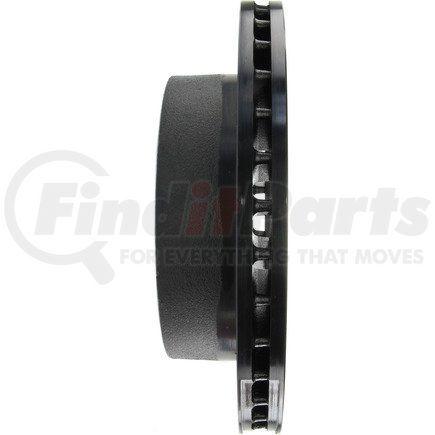

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.79022 Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| Notes [cntrc] | Hat Shaped |
| Weight [cntrc] Kgs | 15.910 |
| Disc Mounting [cntrc] | Behind the Hub |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 35.000 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 31.120 MM |
| Discard Thickness | 1.225 IN |
| Nominal Thickness | 34.200 MM |
| Nominal Thickness | 1.346 IN |
| Overall Height | 3.803 IN |
| Overall Height | 96.600 MM |
| Outside Diameter | 374.600 MM |
| Outside Diameter | 14.748 IN |
| Mounting Bolt Hole Quantity | 10 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 6.004 IN |
| Center Hole Diameter | 152.500 MM |
| Mounting Bolt Hole Circle Diameter | 184.200 MM |
| Mounting Bolt Hole Circle Diameter | 7.252 IN |
| Mounting Bolt Hole Diameter | 20.000 MM |
| Mounting Bolt Hole Diameter | 0.787 IN |
| Hat Finish | Painted |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890044253 |
CENTRIC 120.79022 Cross References
| Brand | Part Number |
|---|---|
| 66501, BD125617, F4HZ1125A, 23123439002 | |
| BENDIX | 145058 |
| EUCLID | E11306 |
| MERITOR | 23123439 |
| N/A | BD125617, E125-84-027, 23123439002, 23123439, 123439, 36501, 54054, 54054G, F4HZ1125A, 102985, 4886501, 86501, 86814, 8950021, 8950022, AR8921, AR8922, 90054247, E12584027 |
| RAY | 66501 |
| RAYBESTOS | 66501, 66501R |
| Raybestos Brakes | 66501, 66501R |
| WAGNER | BD125617 |
CENTRIC 120.79022 Fits Vehicles
- Ford B-700 (1993-1994)
- Ford B-600 (1993-1994)
- Ford F-800 (1993-1999)
- Ford F-700 (1993-1998)
- Ford F-600 (1993-1994)
- Ford F-800 LPO (1995-1998)
- Ford F-600 LPO (1993-1994)
- Ford F-700 LPO (1993-1998)
