(888) 312-8812 Login SignupCENTRIC 120.69002 Centric Premium Brake Rotor
Tap to view 4 more
$5299
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jul 23
CENTRIC 120.69002 Part Description
Manufacturer
Product Description

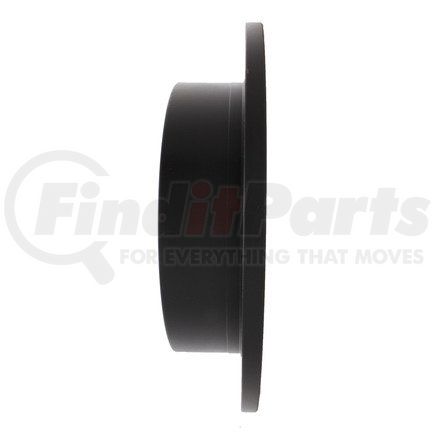

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.69002 Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 2 |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Kgs | 6.500 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Lbs | 14.300 |
| Discard Thickness | 10.500 MM |
| Discard Thickness | 0.413 IN |
| Nominal Thickness | 12.000 MM |
| Nominal Thickness | 0.472 IN |
| Overall Height | 68.000 MM |
| Overall Height | 2.677 IN |
| Outside Diameter | 312.000 MM |
| Outside Diameter | 12.283 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Bearings Included | No |
| Center Hole Diameter | 101.000 MM |
| Center Hole Diameter | 3.976 IN |
| Mounting Bolt Hole Circle Diameter | 139.700 MM |
| Mounting Bolt Hole Circle Diameter | 5.500 IN |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 0.543 IN |
| Stud/Lug Hole Diameter | 13.800 MM |
| Hat Finish | Painted |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890229759 |
CENTRIC 120.69002 Cross References
| Brand | Part Number |
|---|---|
| 580358, BD126360 | |
| ADVICS | L6R196U |
| N/A | 120.69002, BD126360, BD126360E, E125-74-007, YH145609, 1407-80330, 5704, 27415, 5704G, 15111376, 880358, 90093001, 1770994, E12574007 |
| NEOTEK | 1072028GF |
| Neotek Premium Drums and Rotors | 1072028GF |
| RAYBESTOS | 580358, 580358FZN, 580358PER, 580358R |
| Raybestos Brakes | 580358, 580358FZN, 580358PER, 580358R |
| WAGNER | BD126360, BD126360E |
CENTRIC 120.69002 Fits Vehicles
- Hummer H3T (2009-2010)
- Hummer H3 (2006-2010)
