(888) 312-8812 Login SignupCENTRIC 120.67032 Centric Premium Brake Rotor
Tap to view 4 more
$4649
Limited availability at this price!
1 Day Lead Time
Get it by Tuesday, Jul 7
CENTRIC 120.67032 Part Description
Manufacturer
Product Description

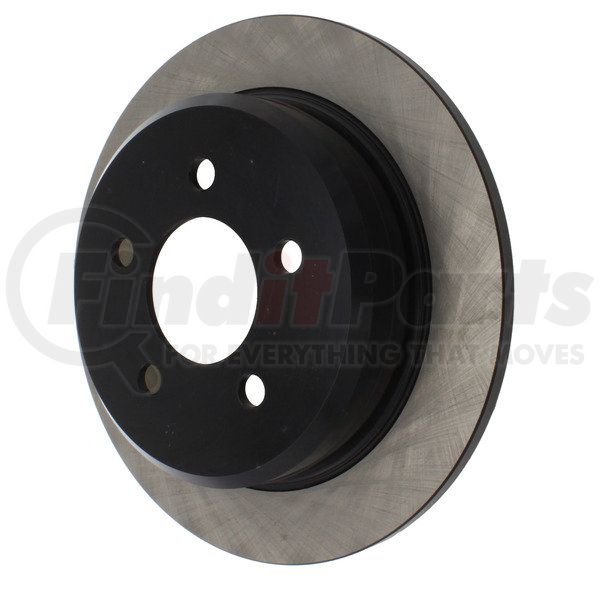

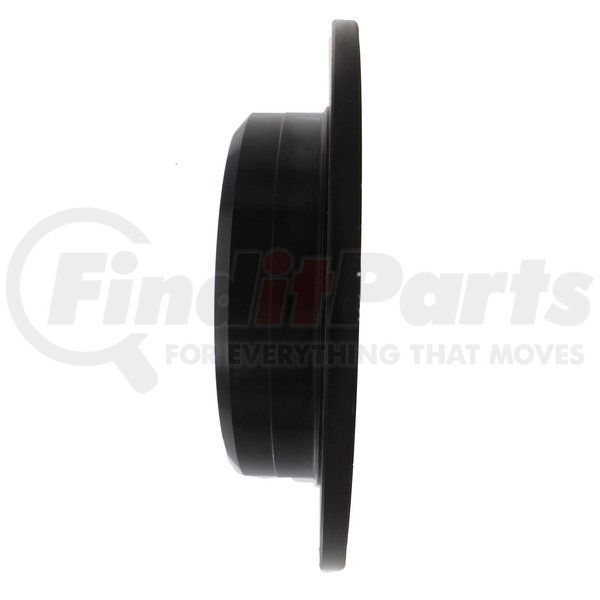

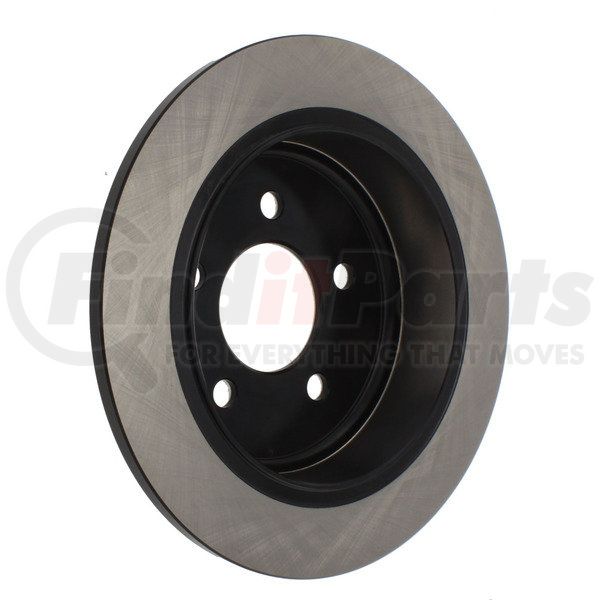

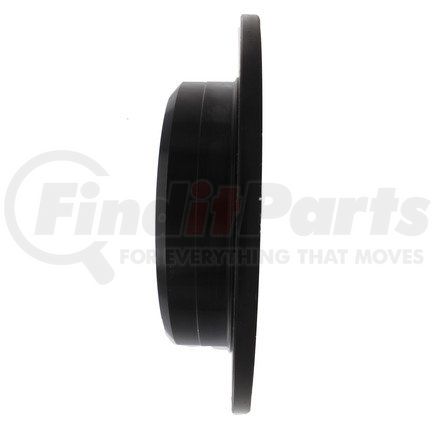

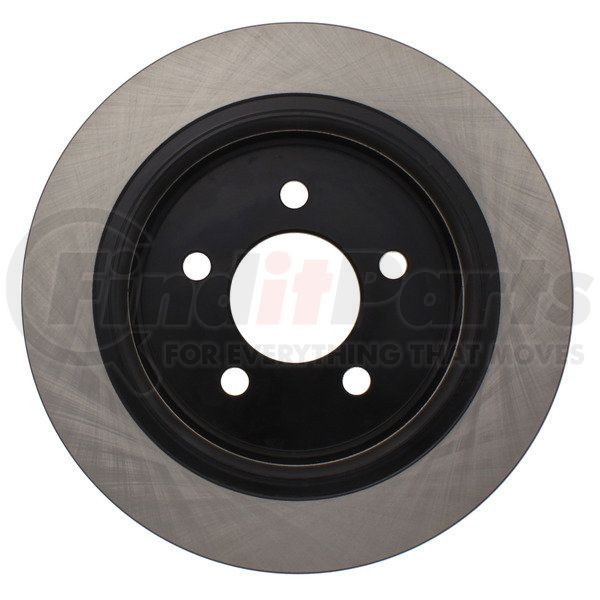

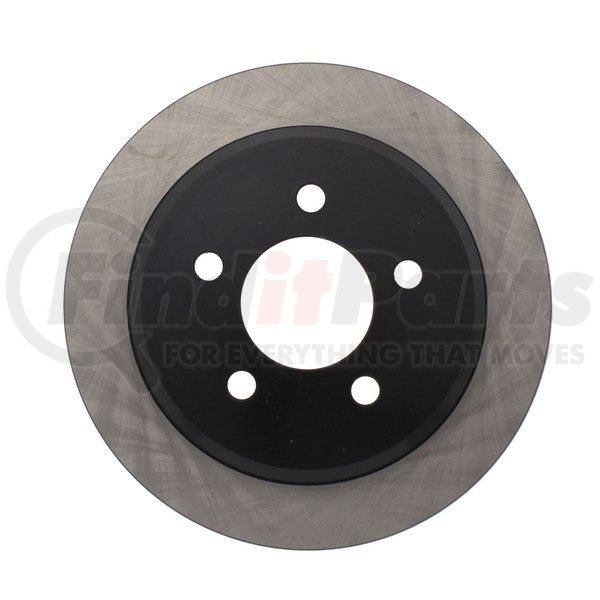

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.67032 Specifications
Product Attributes
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 12.000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 5.450 |
| Disc Mounting [cntrc] | Floating / DIH |
| Max Pb Drum Dia [cntrc] In | 7.303 |
| Product Grade [cntrc] | Premium |
| Max Pb Drum Dia [cntrc] Mm | 185.500 |
| Discard Thickness | 0.374 IN |
| Discard Thickness | 9.500 MM |
| Nominal Thickness | 11.000 MM |
| Nominal Thickness | 0.433 IN |
| Hat Finish | Painted |
| Overall Height | 60.500 MM |
| Overall Height | 2.382 IN |
| Outside Diameter | 284.700 MM |
| Outside Diameter | 11.209 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 184.000 MM |
| Nominal Drum Diameter | 7.244 IN |
| Bearings Included | No |
| Center Hole Diameter | 72.000 MM |
| Center Hole Diameter | 2.835 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.600 MM |
| Stud/Lug Hole Diameter | 0.614 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890044154 |
CENTRIC 120.67032 Cross References
| Brand | Part Number |
|---|---|
| 76451, BD125396 | |
| N/A | BD125396, BD125396E, E125-72-037, 6491460, 64 91 460, 5360, 5360G, 107306, 52008184AB, 52008184, 141901, 4886451, 86451, 86465, 1239, AR8732, D17742, E12572037, 120.67032, 5360DSR, 5360DSL, 1407-25498, YH141901, 27147, X50782, BR1936, 76451P, DDF1186, 19769, 8940032, 90042023 |
| RAYBESTOS | 76451, 76451FZN, 76451R |
| Raybestos Brakes | 76451, 76451FZN, 76451R |
| WAGNER | BD125396E, BD125396 |
CENTRIC 120.67032 Fits Vehicles
- Jeep Grand Wagoneer (1993)
- Jeep Grand Cherokee (1994-1998)
