(888) 312-8812 Login SignupRAYBESTOS 76451R Raybestos R-Line Brake Rotor
MSRP: $62.12
$4849
Save $13.63
Limited availability at this price!
In Stock
Get it by Friday, Jul 17
RAYBESTOS 76451R Part Description
Manufacturer
Product Description

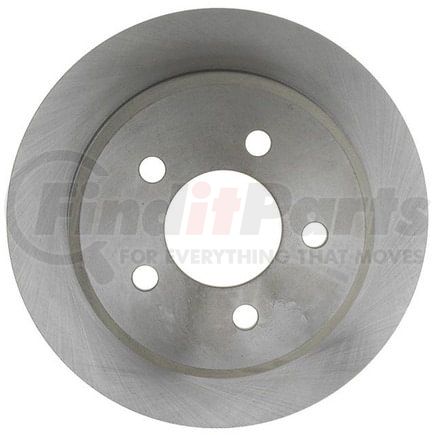

Raybestos R-Line Brake Rotor
Application Summary
1998-1994 Jeep Grand Cherokee Rear, 1993 Jeep Grand Wagoneer Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 76451R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.83 IN |
| Center Hole Diameter | 71.9 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.374 IN |
| Discard Thickness | 9.5 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.609 IN |
| Mounting Bolt Hole Diameter | 15.45 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.43 IN |
| Nominal Thickness | 10.9 MM |
| Outside Diameter | 11.22 IN |
| Outside Diameter | 285 MM |
| Overall Height | 2.33 IN |
| Overall Height | 59.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352366851 |
RAYBESTOS 76451R Cross References
| Brand | Part Number |
|---|---|
| 829352366851 | |
| ADVANCE AUTO PARTS | 141901, YH141901, YH141901C, YH141901P |
| AMERICAN REMANUFACTURED | 789-40032, 89-40032 |
| AUTOPART INTERNATIONAL | 25498 |
| AUTOSPECIALTY | AR8732, AR8732E |
| AUTOZONE | 5360, 5360B, 5360DG, DL5360 |
| BENDIX | 141901 |
| BOSCH | 16010857, RBR5360 |
| BRAKE HEADQUARTERS | BR01006 |
| BRAKEBEST | 16010857, 76451, 76451R, 76451RGS, 81-125396, BD125396 |
| BREMBO | 08.8264.85, 27147 |
| BrakeBest | 66455RGS, 66456RGS, 66457RGS, 76452RGS |
| Brembo | 08.8264.81 |
| Bridgestone | 7002424 |
| CALIFORNIA DRUM & ROTOR | 125396 |
| CENTRIC | 120.67032, 120.67032CRY, 121.67032, 125.67032, 126.67032CSL, 126.67032CSR, 126.67032SL, 126.67032SR, 127.67032CL, 127.67032CR, 127.67032L, 127.67032R, 128.67032CL, 128.67032CR, 128.67032L, 128.67032R, 227.67032L, 227.67032R, 320.67032, 320.67032F, 321.67032 |
| CENTURY | 7071 |
| CHRYSLER | 52008184 |
| CONTINENTAL-CONTITECH | CW11704 |
| Casting Numbers | 210847-C, 325172, 53601 |
| Centric Parts | 120.67032, 120.67032CRY, 121.67032, 125.67032, 126.67032CSL, 126.67032CSR, 126.67032SL, 126.67032SR, 127.67032CL, 127.67032CR, 127.67032L, 127.67032R, 128.67032CL, 128.67032CR, 128.67032L, 128.67032R, 227.67032L, 227.67032R, 320.67032, 320.67032F, 321.67032 |
| DELPHI | RB422 |
| DURA CORP | BR5360 |
| DuraGo | BR5360 |
| EIS BRAKES | D17742 |
| EUROROTOR | 5121 |
| GREN | 606901 |
| GUARDIAN | 52-125396 |
| MAGMA PRODUCTS | PMR145137 |
| MIDAS | BR1936 |
| MIGHTY DISTRIBUTING SYSTEM | 5360 |
| MONROE BRAKES | BD125396 |
| NEWTEK AUTOMOTIVE | 5360 |
| Newtek Automotive USA | 5360 |
| PARTS MASTER | P125396 |
| POWERSTOP | AR8732EVC |
| PROMAX | 14-5360 |
| QUALIS | 5360 |
| QUALITEE INTERNATIONAL | 64-91-460 |
| QUALITY BRAND | 5360 |
| QUINTON HAZELL | BDC4777 |
| STANDARD ROTORS AND DRUMS | 5360 |
| THE UNIVERSAL GROUP | 105105 |
| TRUSTAR | 491460, R91460 |
| TRW | 4878 |
| UAP | 5360 |
| Ultra Brake | 5121 |
| Universal | 105105 |
| VAICO | V3340006 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50782 |
| WABCO | PS125396 |
| WABCO - Archived | PS125396 |
| WAGNER | BD125396E, BD125396 |
| WAGNER BRAKE | BD125396 |
| WINHERE | 441113, YH1113 |
| WORLDPAC | 1407-25498 |
| Wagner Brake | BD125396E |
RAYBESTOS 76451R Fits Vehicles
- Jeep Grand Wagoneer (1993)
- Jeep Grand Cherokee (1994-1998)
