CENTRIC 120.66069 Part Description
Manufacturer
Product Description

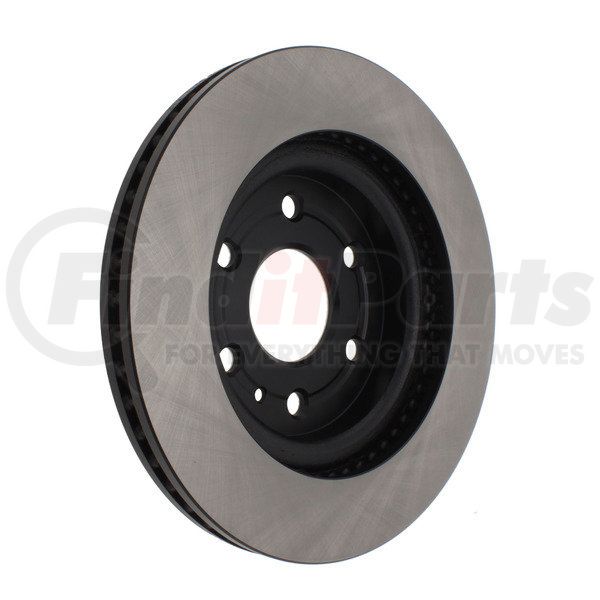

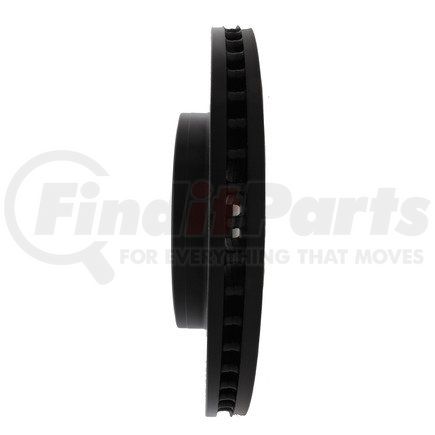

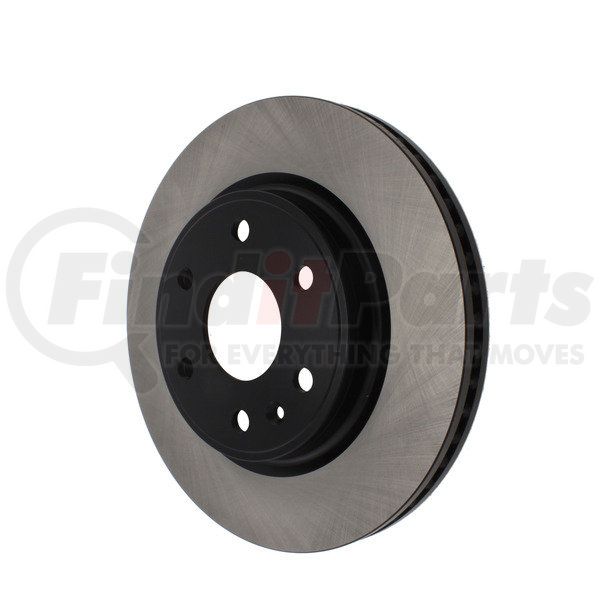

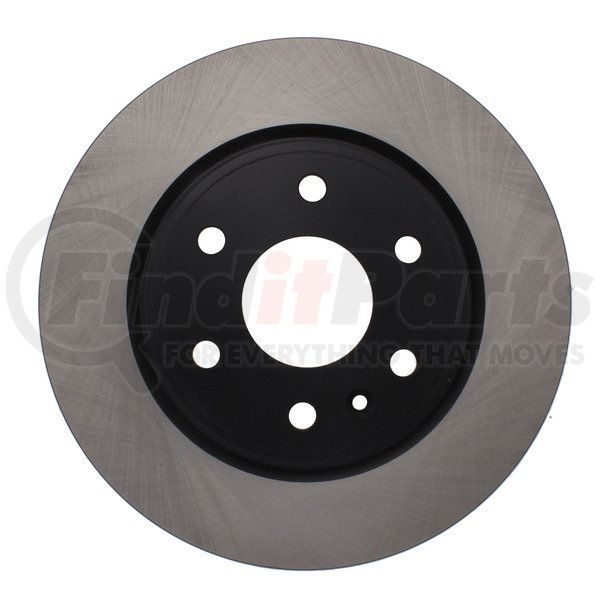

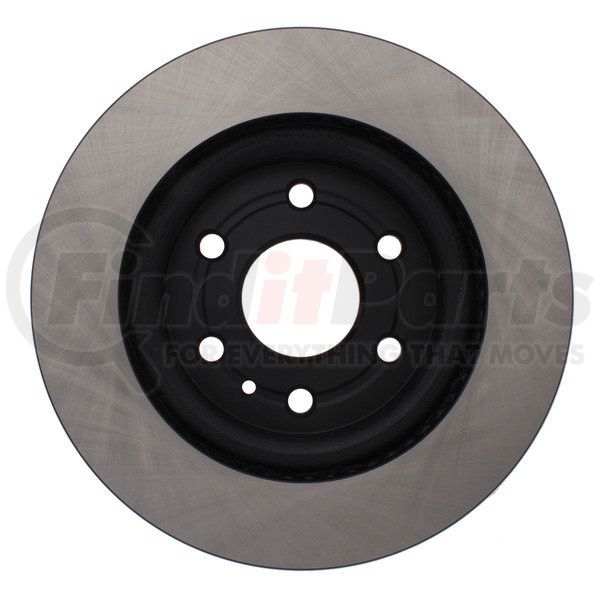

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.66069 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 1 |
| Hat Id [cntrc] Mm | 170.500 |
| Hat Id [cntrc] In | 6.713 |
| Weight [cntrc] Kgs | 10.520 |
| Weight [cntrc] Lbs | 23.150 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 1.083 IN |
| Discard Thickness | 27.500 MM |
| Nominal Thickness | 29.000 MM |
| Nominal Thickness | 1.142 IN |
| Hat Finish | Painted |
| Overall Height | 54.800 MM |
| Overall Height | 2.157 IN |
| Outside Diameter | 325.000 MM |
| Outside Diameter | 12.795 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 75.500 MM |
| Center Hole Diameter | 2.972 IN |
| Mounting Bolt Hole Circle Diameter | 132.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.197 IN |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 15.700 MM |
| Stud/Lug Hole Diameter | 0.618 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890394440 |
CENTRIC 120.66069 Cross References
| Brand | Part Number |
|---|---|
| 580560, BD126467, BD180297 | |
| ADVICS | L6F176U |
| N/A | 120.66069, BD126467, BD126467E, BD180297, E125-71-074, BR90032202, 41232, YH145748, 1407-75744, 41232G, 25853001, 22955495, 10390111, 880560, 55150, 2055150, 90048054, 18A2497, 18A2497A, 1771063, 1771150, E12571074 |
| NEOTEK | 1072030GF |
| Neotek Premium Drums and Rotors | 1072030GF |
| PRONTO | BR90032202 |
| RAYBESTOS | 580560, 580560FZN, 580560PER, 580560R, 580560R2 |
| Raybestos Brakes | 580560, 580560FZN, 580560PER, 580560R |
| WAGNER | BD126467E, Z478, PAB481, BD126467, BD180297 |
CENTRIC 120.66069 Fits Vehicles
- Saturn Outlook (2007-2010)
- GMC Acadia (2007-2017)
- GMC Acadia Limited (2017)
- Buick Enclave (2008-2017)
- Chevrolet Traverse (2009-2017)
