RAYBESTOS 580560 Part Description
Manufacturer
Product Description

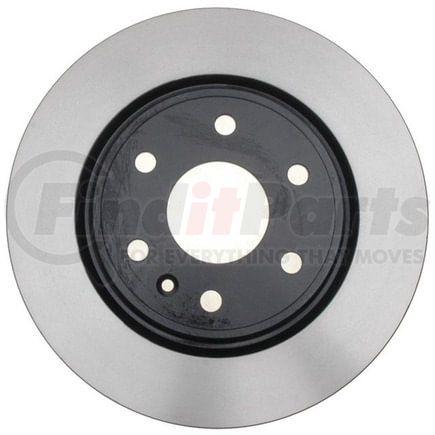

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2017-2009 Chevrolet Traverse Front, 2016-2007 GMC Acadia Front, 2017-2008 Buick Enclave Front, 2010-2007 Saturn Outlook Front, 2017 GMC Acadia Limited Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 580560 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.98 IN |
| Center Hole Diameter | 75.7 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.083 IN |
| Discard Thickness | 27.5 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.197 IN |
| Mounting Bolt Hole Circle Diameter | 132 MM |
| Mounting Bolt Hole Diameter | 0.61 IN |
| Mounting Bolt Hole Diameter | 15.5 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.142 IN |
| Nominal Thickness | 29 MM |
| Outside Diameter | 12.795 IN |
| Outside Diameter | 325 MM |
| Overall Height | 2.15 IN |
| Overall Height | 54.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352590829 |
RAYBESTOS 580560 Cross References
| Brand | Part Number |
|---|---|
| BD180312, 829352590829 | |
| ADVANCE AUTO PARTS | YH145748, YH145748C, YH145748P |
| API | 1407-75744 |
| AUTOPARTSOURCE | 593915 |
| AUTOXTRA | AX900322 |
| AUTOZONE | 41232, 41232DG, DL41232 |
| Autoxtra | AX900322P |
| BENDIX | PRT5748 |
| BOSCH | 25010696 |
| BRAKEBEST | 25010696, 580560, 580560FZN, 580560PER, 580560R, 580560RGS |
| Brembo | 09.C005.11 |
| CENTRIC | 120.66069, 121.66069, 126.66069SR, 126.66069CSL, 126.66069CSR, 126.66069SL, 127.66069CL, 127.66069CR, 127.66069L, 127.66069R, 128.66069L, 128.66069R, 227.66069L, 227.66069R, 320.66069, 321.66069 |
| Casting Numbers | 326364 |
| Centric Parts | 120.66069, 121.66069, 126.66069CSL, 126.66069CSR, 126.66069SL, 126.66069SR, 127.66069CL, 127.66069CR, 127.66069L, 127.66069R, 128.66069L, 128.66069R, 227.66069L, 227.66069R, 320.66069, 321.66069 |
| DURA CORP | BR55150, BR900322, BR900322-02 |
| DuraGo | 60375, 900322, BR60375, BR900322, BR90032202, BR900322-02 |
| Dynamic Friction Company | 604-48054 |
| Eurorotor | 55387 |
| GM | 10390111, 22955495 |
| General Motors | 10390111, 22955495 |
| MAGMA PRODUCTS | PSR225247 |
| MONROE BRAKES | BD126467 |
| NEOTEK | 1072030GF |
| NEWTEK AUTOMOTIVE | 55150 |
| Newtek Automotive USA | 55150 |
| Omnicraft | QBRR160 |
| POWERSTOP | AR8696EVC |
| PROMAX | 14-55150, 20-55150 |
| PRONTO | BR900322 |
| Parts Master | 900322 |
| QUALIS | 41232 |
| SATURN | 25853001 |
| TRUSTAR | 493915 |
| TopNotch | TN580560GEO |
| UAP | 2055150, 55150 |
| WABCO | PS126467 |
| WABCO - Archived | PS126467 |
| WAGNER | BD126467E, PAB481 |
| WAGNER BRAKE | BD126467, BD126467E, BD180297 |
| WINHERE | 6620713 |
| WORLDPAC | 1407-75744, 1427-731758 |
RAYBESTOS 580560 Fits Vehicles
- GMC Acadia Limited (2017)
- Chevrolet Traverse (2009-2017)
- Buick Enclave (2008-2017)
- Saturn Outlook (2007-2010)
- GMC Acadia (2007-2017)
