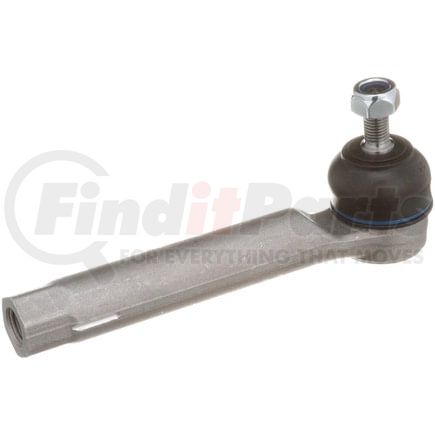

(888) 312-8812 Login SignupDELPHI TA6505 Tie Rod End
Tap to view 20 more
$1899
Limited availability at this price!
In Stock
Get it by Thursday, Feb 19
DELPHI TA6505 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Tie Rod End
DELPHI TA6505 Specifications
Product Attributes
| Position(s) | Right Outer |
| Item Grade | Standard Replacement |
| Length | 152.00 MM |
| Color | Gray |
| End 1 Gender | Female |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 38 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 10.00 MM |
| Height | 68.00 MM |
| Housing Material | Aluminum |
| Greaseable | No |
| Bearing Material | Plastic |
| End 1 Thread Direction | Counterclockwise (Left) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.25 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 152.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| Washer(s) Included | No |
| Stud Length | 21.00 MM |
| Finish | Uncoated |
| Grade Type | Standard Replacement |
| Adjustable | No |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Weight | 0.695 lb |
| Cone Outside Diameter | 14.00 MM |
| Grade | Premium |
| Head Drive Type | Hex |
| End 1 Thread Diameter | 14.00 MM |
| Stud Length | 0.827 IN |
| End 2 Thread Diameter | 0.394 IN |
| Cone Outside Diameter | 0.551 IN |
| Length - Stud Center to End | 5.984 IN |
| End 1 Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604376102 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
DELPHI TA6505 Cross References
DELPHI TA6505 Fits Vehicles
- Honda Insight (2000-2006)
