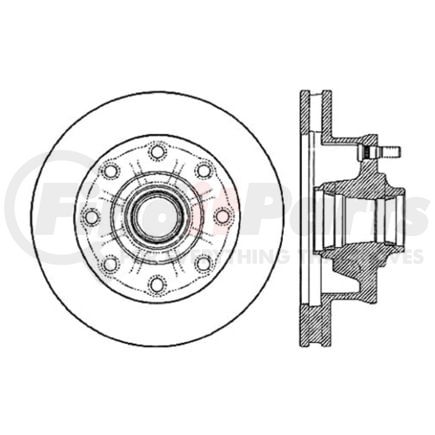

(888) 312-8812 Login SignupCENTRIC 120.66002 Premium Brake Rotor
Tap to view 1 more
$89.45
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.66002 Part Description
Manufacturer
CENTRIC 120.66002 Specifications
Product Attributes
| Inner Seal # [cntrc] | 417.66000 |
| Weight [cntrc] Kgs | 19.320 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 42.500 |
| Product Grade [cntrc] | Premium |
| Vane Style [cntrc] | Straight |
| Outer Bearing # [cntrc] | 415.66000 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Outer Race # [cntrc] | 416.66000 |
| Inner Bearing # [cntrc] | 410.91035 |
| Discard Thickness | 37.210 MM |
| Discard Thickness | 1.465 IN |
| Nominal Thickness | 38.990 MM |
| Nominal Thickness | 1.535 IN |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.563 IN |
| Overall Height | 131.300 MM |
| Overall Height | 5.169 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 317.500 MM |
| Rotor Outside Diameter | 12.500 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 18.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 116.500 MM |
| Center Hole Diameter | 4.587 IN |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Stud/Lug Hole Quantity | 8 |
CENTRIC 120.66002 Cross References
CENTRIC 120.66002 Fits Vehicles
- Workhorse Custom Chassis P32 (1999-2007)
- Workhorse P32 (1999-2005)
- GMC P35/P3500 Van (1974)
- GMC G35/G3500 Van (1974)
- GMC C35/C3500 Pickup (1974)
- Chevrolet P30 Van (1974)
- Chevrolet G30 Van (1974)
- Chevrolet C30 Pickup (1974)
- GMC R3500 (1987-1991)
- GMC P3500 (1979-1992)
- GMC P35 (1975-1978)
- GMC G3500 (1995-1996)
- GMC G35 (1975-1978)
- GMC C3500 (1979-1986)
- GMC C35 (1975-1978)
- Chevrolet R3500 (1989-1991)
- Chevrolet R30 (1987-1988)
- Chevrolet P30 (1975-1995)
- Chevrolet G30 (1975-1978, 1995-1996)
- Chevrolet C30 (1975-1986)
