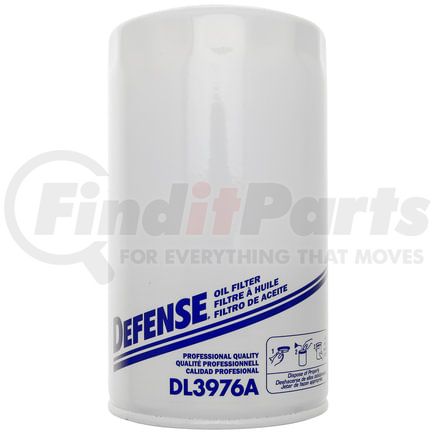

FRAM DL3976A Part Description
Defense, DL3976A, Oil Filters
FRAM DL3976A Specifications
Product Attributes
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Drain Plug Included | No |
| Filter Type | Spin-On Canister |
| Gasket Inside Diameter | 2.488 IN |
| Gasket Or Seal Included | Yes |
| Gasket Outside Diameter | 2.832 IN |
| Gasket Thickness | 0.203 IN |
| Gasket Type | Base |
| Grade | Advanced |
| Grade Type | Regular |
| Height | 7.669 IN |
| Outside Diameter | 3.673 IN |
| Reusable | No |
| Thread Size | Standard |
Additional Information
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8421230000 |
| UPC | 00009100029997 |
| UNSPSC | 15121501 |
FRAM DL3976A Cross References
| Brand | Part Number |
|---|---|
| ACDelco | PF1070, PF1070F |
| Alliance Parts | ABP/N10G-LF3552 |
| Amsoil | ASF80, EAO80, SDF80 |
| Autopar - Archived | FE302, FE334 |
| Baldwin | B7181, BK6479, BK6485, BT339, BT7339, BT7349 |
| Big A | 92604, 92607 |
| Bosch | 3520 |
| Carquest | 84136, 85604, 85607, R84620, R84620MP |
| Case | J903264, J908615, J932217 |
| Casite Filters | CF608 |
| Caterpillar | 3I-1376 |
| Cenex | CO780 |
| Certified | CPH3976A |
| Champ | LFP780 |
| Champion | 41607T, COS3976A |
| Chrysler | 05083285AA, 4429395, 4429615, 4761277, 5016547AA, 5016547AB, 5016547AC, 5083285AA, 5093092AA |
| Coach Guard | T17-1056 |
| Crosland | 2069 |
| Cummins | 3903264, 3903964, 3908615, 3914395, 3932217, 3937145, 3937695, 3937743, 3937763, 3949561, 3977910, 4378319 |
| Deutsch | D651, DL3976A |
| Donaldson | P550909, P558615, P559305, P559310 |
| Doosan | 65.05510-5028A |
| Driveworks | DW-5335 |
| EXXON/MOBIL OIL | M1403, M1403A |
| FRAM | M1-403A, M1-403 |
| FVP | R1607 |
| Firestone | LFP780 |
| Fleetguard | LF16006, LF16035, LF3349, LF3552, LF3806, LF3885, LF3935, LF3959, LF3972, MK12405, MK12428, MK13072, MK13074, MK13077, MK13149, MK13152 |
| Fleetrite | LFR-83349 |
| Ford | F3HZ-6731-A, F3HZ-6731-B, F3HZ-6731-C |
| Franklin Equipment | 1507032 |
| General Motors | 25011997 |
| Grand Prix | LFP780 |
| Group 7 | V5335 |
| Hastings | B7181, LF508, LF508F, LF608, LF608F |
| Havoline | T-40 |
| Installer Edge | AL3976A |
| International Harvester IHC | 1240388H1 |
| JCB | 02/910140, 2/910970 |
| Jiffy Lube | HL3976, L44422 |
| John Deere | TY22013 |
| K&N | HP-4003, PS-4003 |
| Kendall | K39, K42 |
| Kobelco | YN50VU0001DA |
| Komatsu | 6735-51-5140, 6735-51-5141, 6735-51-5143, 6736-51-5141, 6736-51-5142 |
| Kralinator | L249 |
| Kubota | 30004-6300 |
| LUBER-FINER | LFP780 |
| MAHLE | OC1001 |
| MOBIL OIL | M1403, M1403A |
| Mann-Filter | ML 1023, W950/18, W950/21 |
| MicroGard | MGL3976A |
| Mileguard | MO3976 |
| Mobil 1 | M1-403, M1-403A |
| Mopar | MO-285 |
| MotoMaster | MPH3976A |
| Motorcraft | FL-896 |
| NAPA | 1604, 1607, 7620 |
| NAPA ProSelect Filters | 27620 |
| Onan | 187-0014 |
| PREMIUM GUARD | PG5335 |
| PUROLATOR | TL45335 |
| Parts Master | 61607, 67620, 67620BP |
| Parts Plus | LFP780 |
| Pennzoil | PZ-47, PZ47, PZ47BP |
| Pentius | PLB3976A |
| Performax | PO-47 |
| Phillips 66 | WO1607 |
| Pit Stop | PSL42 |
| Professionals Choice - Archived | Q5335 |
| Promotive | PH5335 |
| Pronto | PO-5335 |
| Purolator | L44422, L45335 |
| Purolator BOSS | PBL45335 |
| PurolatorONE | PL45335 |
| Quaker State | QS3976, QS45335 |
| STP | S3976 |
| SUPERTECH | ST3976A |
| Service Champ | OF4422 |
| Service Pro | M5335 |
| Shell - Archived | SH47 |
| Timberjack | 414572, 841457200 |
| Tough Guard | TG3976A |
| Trojan | 4614877 |
| Trust | LFP780 |
| Ultra | XG3976A |
| Unocal 76 | OF1607 |
| Valvoline | L-780, VO-64 |
| Volvo | 15155622, 3946298 |
| Warner | LFP780 |
| White | 30-3455696 |
| Wix | 51607 |
FRAM DL3976A Fits Vehicles
- Suzuki Aerio (2002)
- Chevrolet Express 3500 (1997-1998)
- Ram 5500 (2011-2023)
- Ram 4500 (2011-2023)
- Ram 3500 (2011-2024)
- Ram 2500 (2011-2024)
- Dodge Ram 5500 (2008-2010)
- Dodge Ram 4500 (2008-2010)
- Dodge W350 (1989-1993)
- Dodge W250 (1989-1993)
- Dodge Ram 3500 (1994-2010)
- Dodge Ram 2500 (1994-2010)
- Dodge D350 (1989-1993)
- Dodge D250 (1989-1993)
