(888) 312-8812 Login SignupCENTRIC 120.65118 Centric Premium Brake Rotor
Tap to view 4 more
$103.69
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.65118 Part Description
Manufacturer
Product Description

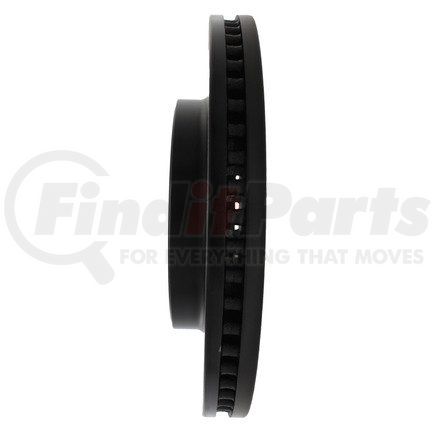

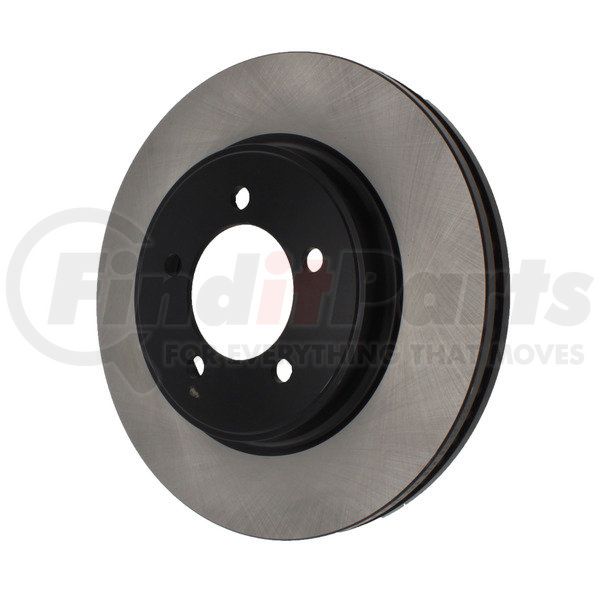

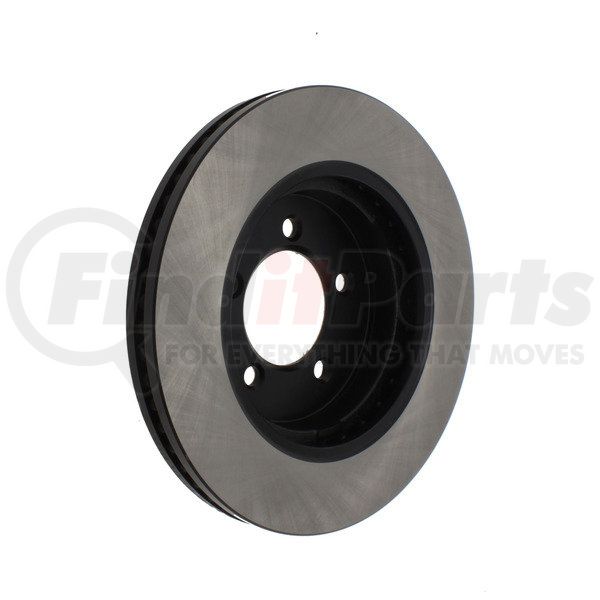

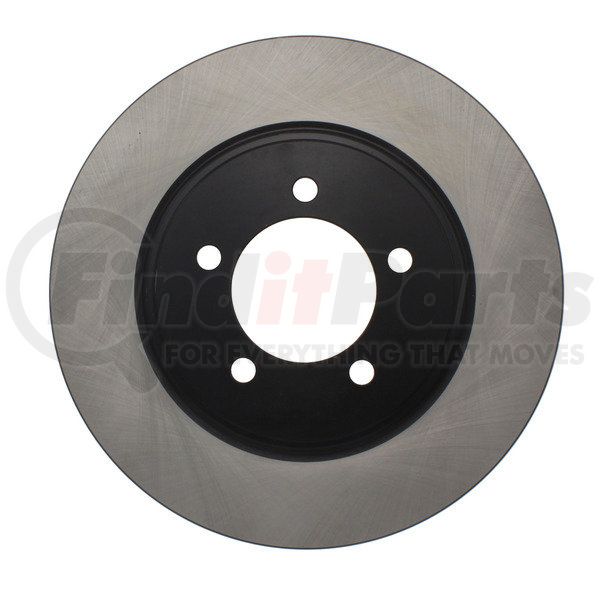

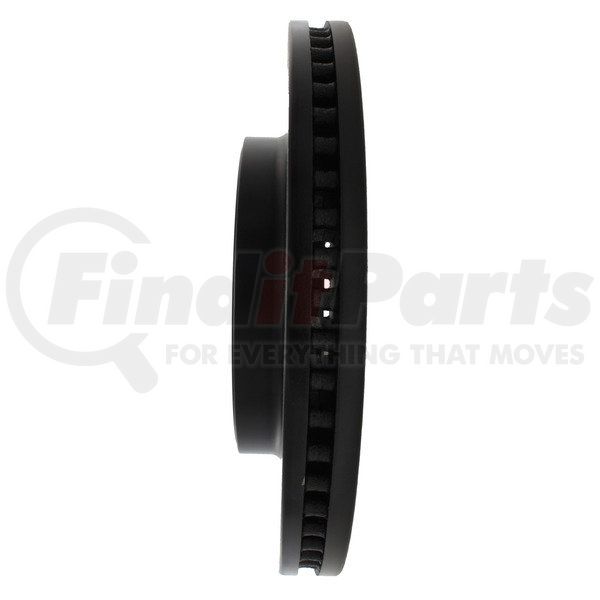

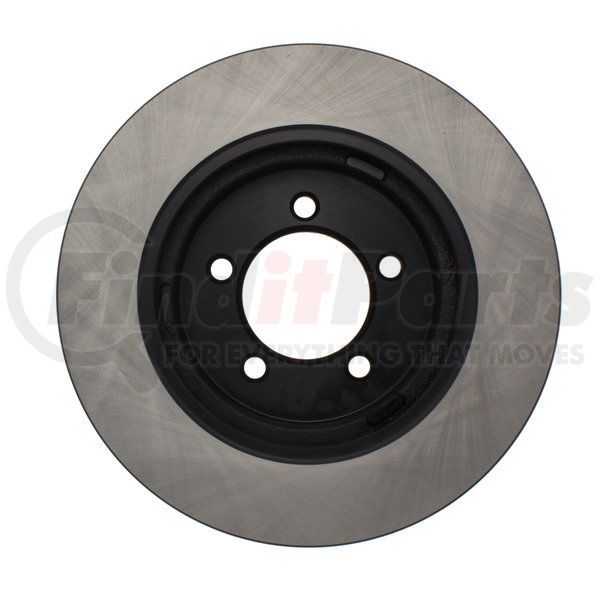

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.65118 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Kgs | 9.890 |
| Weight [cntrc] Lbs | 21.750 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 28.500 MM |
| Discard Thickness | 1.122 IN |
| Nominal Thickness | 30.000 MM |
| Nominal Thickness | 1.181 IN |
| Hat Finish | Painted |
| Overall Height | 54.300 MM |
| Overall Height | 2.138 IN |
| Outside Diameter | 305.200 MM |
| Outside Diameter | 12.016 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.228 IN |
| Center Hole Diameter | 82.000 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.537 IN |
| Stud/Lug Hole Diameter | 13.650 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00805890246862 |
CENTRIC 120.65118 Cross References
| Brand | Part Number |
|---|---|
| 680416, BD126346 | |
| ADVICS | K6F144U |
| N/A | 120.65118, BD126346, BD126346E, E125-70-123, BR5414302, 0204302626, 6L241125A, YH145734, 42248, 1407-80285, 42248G, 6U2Z1V125C, 6L2Z1125AA, 880416, 54143, 2054143, 90054203, 18A2352, E12570123, 42248HC |
| NEOTEK | 1071075GF |
| Neotek Premium Drums and Rotors | 1071075GF |
| PRONTO | BR5414302 |
| RAYBESTOS | 680416, 680416FZN, 680416PER, 680416R, 680416R2 |
| Raybestos Brakes | 680416, 680416FZN, 680416PER, 680416R |
| WAGNER | BD126346, BD126346E |
CENTRIC 120.65118 Fits Vehicles
- Mercury Mountaineer (2006-2010)
- Ford Explorer Sport Trac (2007-2010)
- Ford Explorer (2006-2010)
