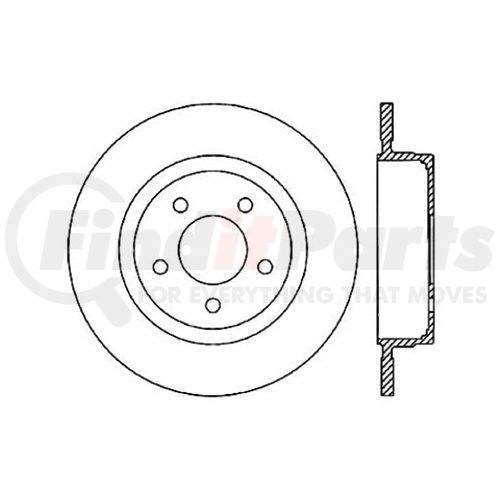

Centric 120.65096 - Centric Premium Brake Rotor
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
Product Attributes
| Disc Mounting [cntrc] | Floating / DIH |
| Misc Holes [cntrc] | 0 |
| Max Pb Drum Dia [cntrc] In | 7.272 |
| Weight [cntrc] Lbs | 13.500 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Max Pb Drum Dia [cntrc] Mm | 184.700 |
| Weight [cntrc] Kgs | 6.140 |
| Discard Thickness | 0.413 IN |
| Discard Thickness | 10.500 MM |
| Nominal Thickness | 0.472 IN |
| Nominal Thickness | 12.000 MM |
| Hat Finish | Coated |
| Overall Height | 58.300 MM |
| Overall Height | 2.295 IN |
| Outside Diameter | 300.000 MM |
| Outside Diameter | 11.811 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 184.000 MM |
| Nominal Drum Diameter | 7.244 IN |
| Bearings Included | No |
| Center Hole Diameter | 71.200 MM |
| Center Hole Diameter | 2.803 IN |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.500 MM |
| Stud/Lug Hole Diameter | 0.571 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 805890136699 |
Part Interchanges
CENTRIC 120.65096 Cross Reference
We have 5 alternatives for the 120.65096 by CENTRIC:
Fits Vehicles
- Ford Explorer Sport (2003)
- Ford Explorer Sport Trac (2003-2005)
