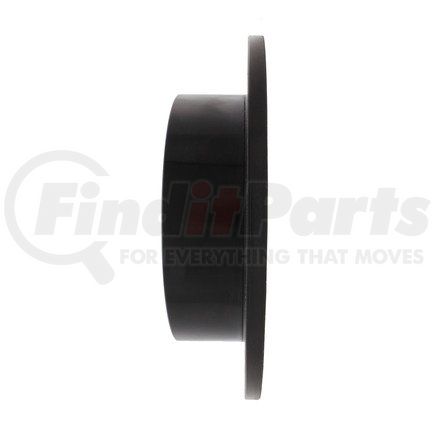

CENTRIC 120.63066 Centric Premium Brake Rotor

Name: Centric 120.63066 Centric Premium Brake Rotor
SKU: 12063066
Price: 50.96 USD
Availability: OutOfStock

Tap to view 4 more

$50.96

MSRP Pricing shown.

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

CENTRIC 120.63066 Part Description

Centric Premium Brake Rotor

Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
Painted hat and outer edge for corrosion resistance
Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
Painted Hat and Outer Edge
Optimal Surface Finish
Optimal surface finish for consistent stopping feel from the first stop
Advanced Metallurgy
Advanced metallurgy for optimal heat transfer and structural strength
OE Vane Design and Plate Thickness
OE vane design and plate thickness for heat capacity and strength
Low Initial Lateral Run-Out
Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
Precision Balance
Precision balance for vibration free performance

Disc Mounting [cntrc]	Floating / DIH
Hat Id [cntrc] In	6.571
Weight [cntrc] Lbs	9.800
California Proposition 65 Text [cntrc]	WARNING: Cancer and Reproductive Harm
Max Pb Drum Dia [cntrc] Mm	169.000
Misc Holes [cntrc]	1
Max Pb Drum Dia [cntrc] In	6.654
Product Grade [cntrc]	Premium
Hat Id [cntrc] Mm	166.900
Weight [cntrc] Kgs	4.450
Discard Thickness	8.400 MM
Discard Thickness	0.331 IN
Nominal Thickness	0.394 IN
Nominal Thickness	10.000 MM
Hat Finish	Painted
Overall Height	2.370 IN
Overall Height	60.200 MM
Outside Diameter	262.000 MM
Outside Diameter	10.315 IN
ABS Tone Ring Included	No
Surface Type	Smooth
Solid Or Vented Type Rotor	Solid
Nominal Drum Diameter	167.900 MM
Nominal Drum Diameter	6.610 IN
Bearings Included	No
Center Hole Diameter	80.000 MM
Center Hole Diameter	3.150 IN
Mounting Bolt Hole Circle Diameter	114.300 MM
Mounting Bolt Hole Circle Diameter	4.500 IN
Stud/Lug Hole Quantity	5
Stud/Lug Hole Diameter	0.496 IN
Stud/Lug Hole Diameter	12.600 MM

Harmonized Tariff Code (Schedule B)	8708300050
Harmonized Tariff Code (HTS)	8708305030
NAFTA Preference Criterion Code	B
Country of Origin (Primary)	CN
UPC	00805890299035

Brand	Part Number
	780457, BD126539
ADVICS	P6R216U
ATE BRAKE PRODUCTS	410345, 410363
N/A	BD180412, BD126539, BD126539E, E125-68-071, 44725, BR90033402, 43154, 43154G, 44725G, 4615A1024, 4615A119, 4615A194, 5105515AA, MN116332, 15105515AA, 880457, 53036, DF4973, E12568071, 43154HC, 120.63066, 43154GT, 63909L, 515AA, YH145672, 1407-79993, DDF1762, 2053036, 90039022
NEOTEK	107318GF
Neotek Premium Drums and Rotors	107318GF
PRONTO	BR90033402
RAYBESTOS	780457, 780457FZN, 780457R, 780457R2
Raybestos Brakes	780457FZN, 780457R, 780457
WAGNER	BD126539E, BD126539
