(888) 312-8812 Login SignupCENTRIC 120.63063 Premium Brake Rotor
Tap to view 1 more
$152.88
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.63063 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

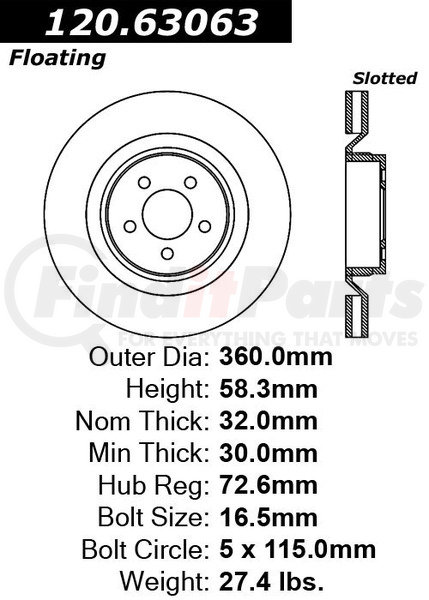

CENTRIC 120.63063 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| Hat Id [cntrc] In | 6.256 |
| Product Grade [cntrc] | Premium |
| Hat Id [cntrc] Mm | 158.900 |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 26.950 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 12.250 |
| Stud/Lug Hole Diameter | 16.700 MM |
| Stud/Lug Hole Diameter | 0.657 IN |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 4.528 IN |
| Mounting Bolt Hole Circle Diameter | 115.000 MM |
| Center Hole Diameter | 72.600 MM |
| Center Hole Diameter | 2.858 IN |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 14.173 IN |
| Outside Diameter | 360.000 MM |
| Overall Height | 58.300 MM |
| Overall Height | 2.295 IN |
| Hat Finish | Painted |
| Nominal Thickness | 1.260 IN |
| Nominal Thickness | 32.000 MM |
| Discard Thickness | 30.000 MM |
| Discard Thickness | 1.181 IN |
CENTRIC 120.63063 Cross References
CENTRIC 120.63063 Fits Vehicles
- Dodge Magnum (2006-2007)
- Chrysler 300 (2005-2007, 2021-2023)
- Dodge Challenger (2021-2023)
- Dodge Charger (2006, 2021-2023)
