(888) 312-8812 Login SignupCENTRIC 120.63017 Centric Premium Brake Rotor
Tap to view 1 more
$51.74
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.63017 Part Description
Manufacturer
Product Description
Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

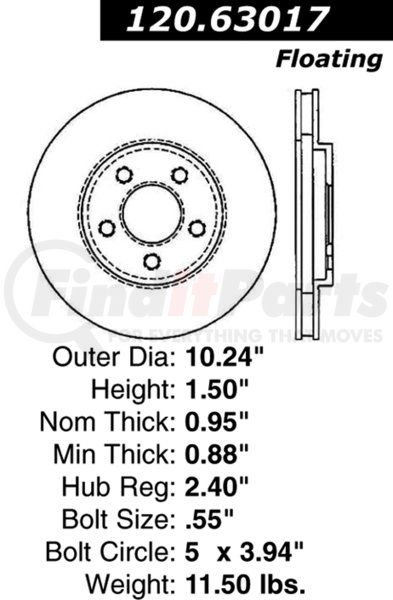

CENTRIC 120.63017 Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 11.500 |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 5.230 |
| Discard Thickness | 0.882 IN |
| Discard Thickness | 22.400 MM |
| Nominal Thickness | 0.945 IN |
| Nominal Thickness | 24.000 MM |
| Hat Finish | Painted |
| Overall Height | 1.504 IN |
| Overall Height | 38.200 MM |
| Outside Diameter | 260.000 MM |
| Outside Diameter | 10.236 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.402 IN |
| Center Hole Diameter | 61.000 MM |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.551 IN |
| Stud/Lug Hole Diameter | 14.000 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890042914 |
CENTRIC 120.63017 Cross References
| Brand | Part Number |
|---|---|
| 7063, BD61946 | |
| N/A | BD61946, 0832203, 120.63017, 6491680, 64 91 680, 5329, 5329G, 107007, 4313633, 4383968, 141379, 4885842, 85771, 85842, 578, AR8317, D17063, E12568022, E9243, YH141379, X50339, 27024, BR1413, DDF1376, 19712, 8932017, 65025, 60040046 |
| RAYBESTOS | 7063, 7063FZN, 7063R |
| Raybestos Brakes | 7063, 7063FZN, 7063R |
| WAGNER | BD61946 |
CENTRIC 120.63017 Fits Vehicles
- Dodge Dart (1987-1988)
- Chrysler Spirit (1990-1993)
- Chrysler Shadow (1989-1994)
- Chrysler Dynasty (1988-1993)
- Chrysler Daytona (1984-1992)
- Plymouth Voyager (1991-1995)
- Plymouth Sundance (1987-1994)
- Plymouth Reliant (1985-1989)
- Plymouth Grand Voyager (1991-1995)
- Plymouth Caravelle (1985-1988)
- Plymouth Acclaim (1990-1995)
- Dodge Spirit (1990-1995)
- Dodge Shadow (1987-1994)
- Dodge Omni (1985-1986)
- Dodge Lancer (1985-1989)
- Dodge Grand Caravan (1991-1995)
- Dodge Dynasty (1988-1993)
- Dodge Daytona (1984-1993)
- Dodge Charger (1985-1987)
- Dodge Caravan (1991-1995)
- Dodge Aries (1985-1989)
- Dodge 600 (1984-1988)
- Chrysler Town & Country (1984-1988, 1991-1995)
- Chrysler TC Maserati (1989-1991)
- Chrysler New Yorker (1984-1993)
- Chrysler LeBaron (1984-1995)
- Chrysler Laser (1984-1986)
- Chrysler Imperial (1990-1993)
- Chrysler Executive Limousine (1985-1986)
