Centric 120.51009 - Centric Premium Brake Rotor
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description

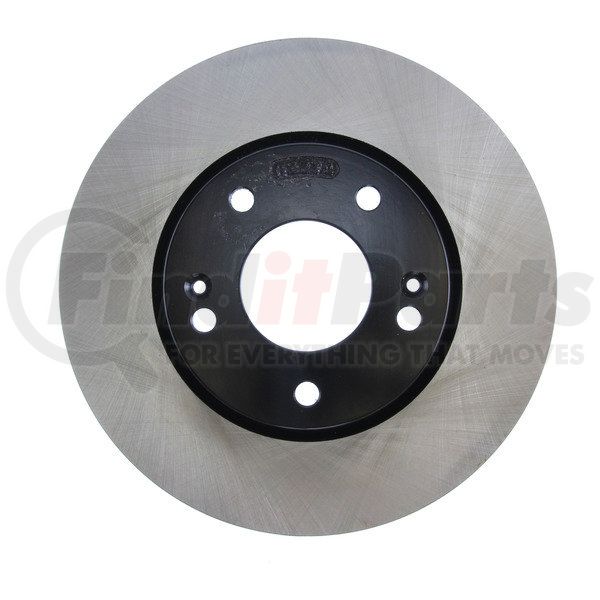

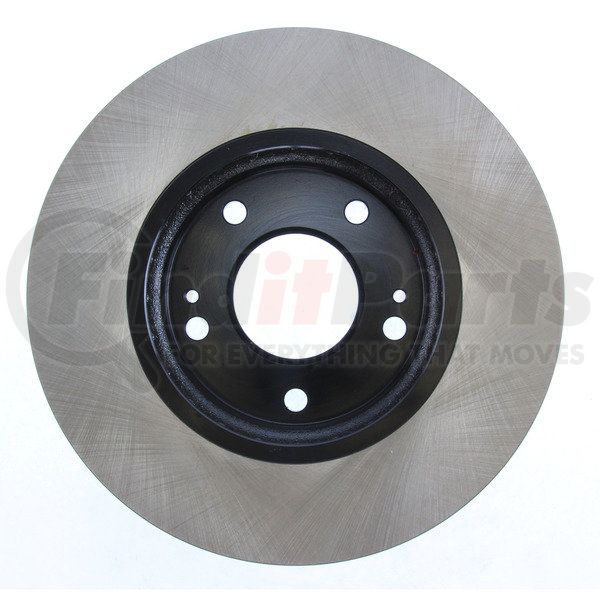

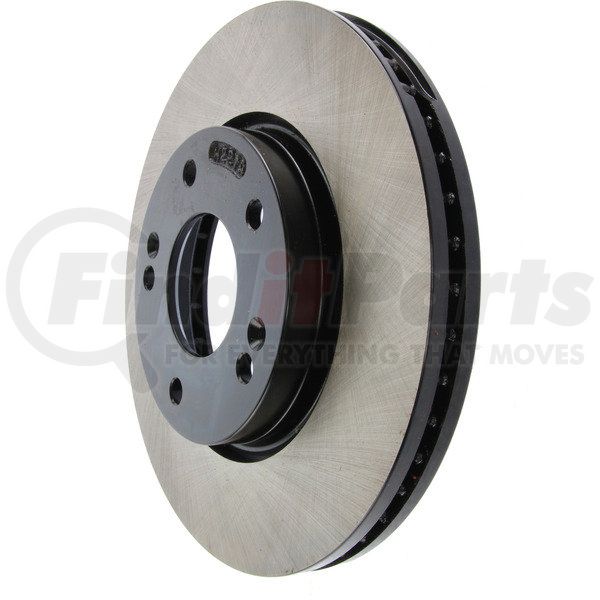

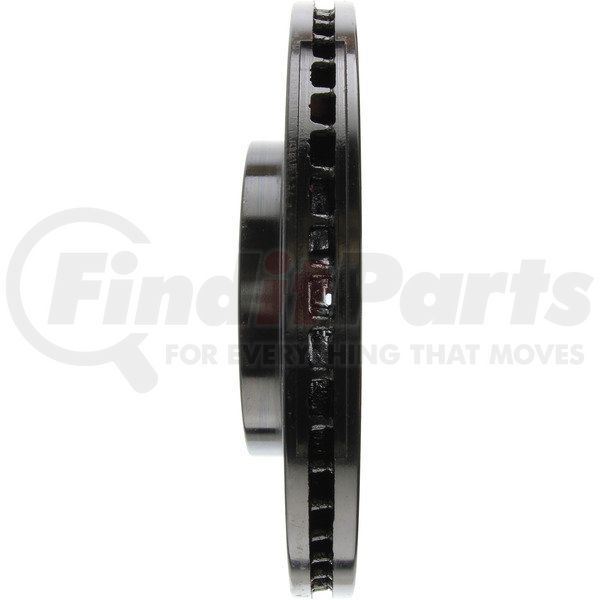

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
Product Attributes
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 13.500 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 6.140 |
| Misc Holes [cntrc] | 2 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 24.400 MM |
| Discard Thickness | 0.961 IN |
| Nominal Thickness | 1.024 IN |
| Nominal Thickness | 26.000 MM |
| Hat Finish | Coated |
| Overall Height | 46.300 MM |
| Overall Height | 1.823 IN |
| Outside Diameter | 276.000 MM |
| Outside Diameter | 10.866 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.717 IN |
| Center Hole Diameter | 69.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.600 MM |
| Stud/Lug Hole Diameter | 0.496 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 805890009573 |
Part Interchanges
CENTRIC 120.51009 Cross Reference
We have 5 alternatives for the 120.51009 by CENTRIC:
Fits Vehicles
- Hyundai Santa Fe (2001-2005)
