CENTRIC 120.47011 Part Description
Manufacturer
Product Description

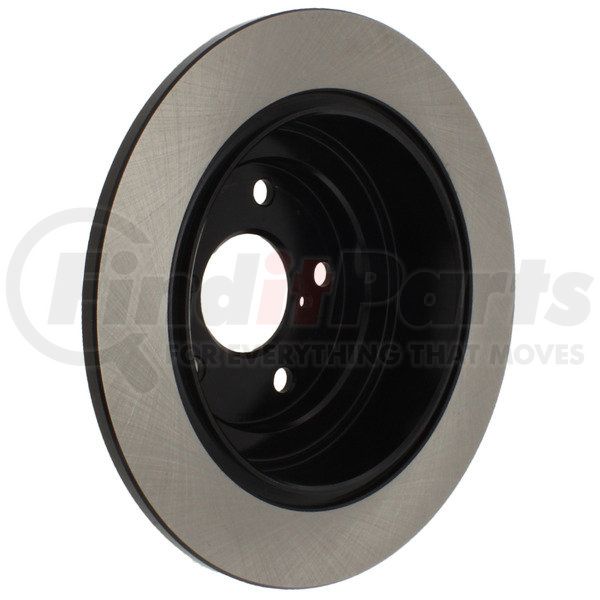

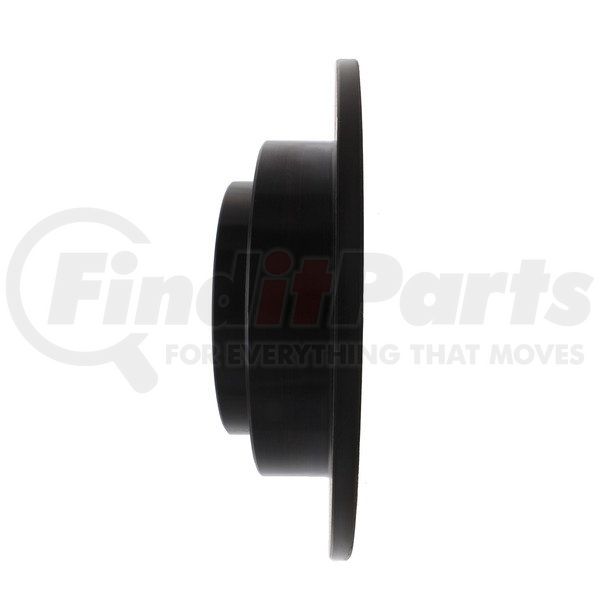

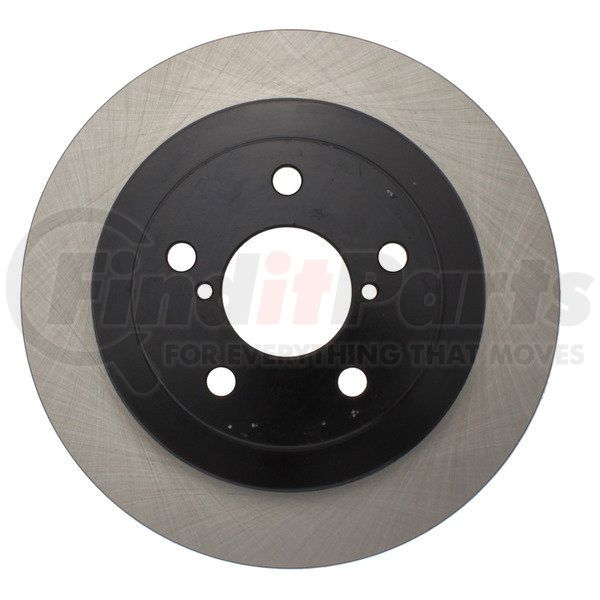

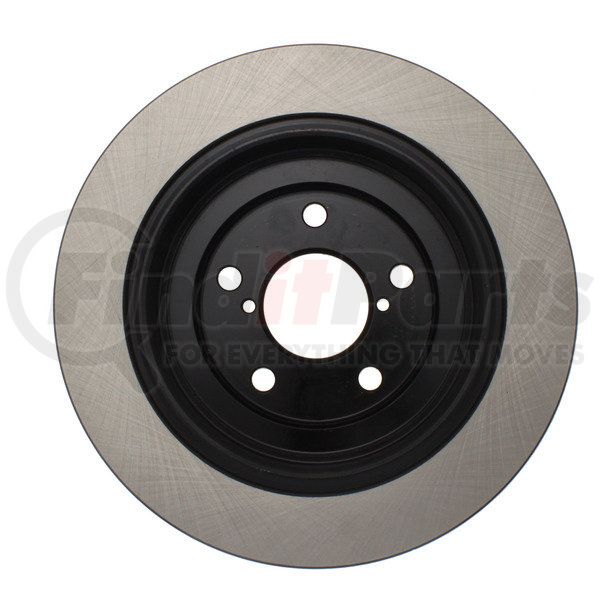

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.47011 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating / DIH |
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Lbs | 10.500 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 4.770 |
| Discard Thickness | 8.500 MM |
| Discard Thickness | 0.335 IN |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10.000 MM |
| Hat Finish | Painted |
| Overall Height | 2.587 IN |
| Overall Height | 65.700 MM |
| Outside Diameter | 265.500 MM |
| Outside Diameter | 10.453 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 170.100 MM |
| Nominal Drum Diameter | 6.697 IN |
| Bearings Included | No |
| Center Hole Diameter | 58.100 MM |
| Center Hole Diameter | 2.287 IN |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.800 MM |
| Stud/Lug Hole Diameter | 0.504 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890041795 |
CENTRIC 120.47011 Cross References
| Brand | Part Number |
|---|---|
| 96121, BD125046, BD125371, BD126494 | |
| N/A | BD125046, BD125046E, BD125371, BD126494, E125-52-016, BR3104302, 6477100, 64 77 100, 26310AA050, 31043, 31043G, 106402, 26310AA040, 26310AA051, 26700FE010, 26700FE030, 26700FE080, 26710AC020, 32006222, 32009802, 141474, 86121, 4886121, 207, JBR359, D17633, E12552016, 31043HC, 1.4715.5.4, 1471554, 120.47011, 31043GT, 31043DSR, 1407-52292, 1407-78292, YH141474, 31043DSL, X50744, 25190, BR1694, 96121, 96121P, 2031043, DDF678, 19885, 8918011, 90013008, 18A396A |
| NEOTEK | 106402GF |
| Neotek Premium Drums and Rotors | 106402GF |
| PRONTO | BR3104302 |
| RAYBESTOS | 96121FZN, 96121R, 96121R2 |
| Raybestos Brakes | 96121FZN, 96121R |
| WAGNER | BD126494, BD125046, BD125046E |
CENTRIC 120.47011 Fits Vehicles
- Saab 9-2X (2005-2006)
- Subaru Legacy (1990-1999)
- Subaru Impreza (1993-1996, 1998-2007)
- Subaru Forester (1998-2008)
