(888) 312-8812 Login SignupRAYBESTOS 96121R Raybestos R-Line Brake Rotor
$6049
Limited availability at this price!
In Stock
Get as soon as Tuesday, Oct 6
RAYBESTOS 96121R Part Description
Manufacturer
Product Description

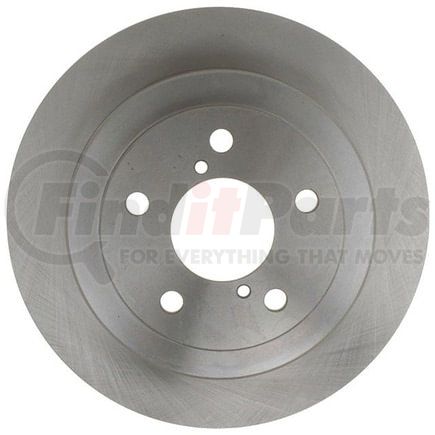

Raybestos R-Line Brake Rotor
Application Summary
2008-1998 Subaru Forester Rear, 2007-1993 Subaru Impreza Rear, 1999-1990 Subaru Legacy Rear, 2006-2005 Saab 9-2X Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96121R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.29 IN |
| Center Hole Diameter | 58.15 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.335 IN |
| Discard Thickness | 8.5 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 3.93 IN |
| Mounting Bolt Hole Circle Diameter | 99.8 MM |
| Mounting Bolt Hole Diameter | 0.495 IN |
| Mounting Bolt Hole Diameter | 12.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10 MM |
| Outside Diameter | 10.47 IN |
| Outside Diameter | 265.95 MM |
| Overall Height | 2.66 IN |
| Overall Height | 67.55 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352370018 |
RAYBESTOS 96121R Cross References
| Brand | Part Number |
|---|---|
| 829352370018 | |
| ADVANCE AUTO PARTS | 141474, YH141474, YH141474C, YH141474P |
| ALTROM IMPORTS | A31043 |
| AMERICAN REMANUFACTURED | 789-18011, 89-18011 |
| AUTOPART INTERNATIONAL | 78292 |
| AUTOSPECIALTY | JBR359, JBR359E |
| AUTOXTRA | 125046, 8096121, AX31043 |
| AUTOZONE | 31043, 31043B, 31043DG |
| BECK/ARNLEY | 080-2486, 083-2486 |
| BENDIX | 141474 |
| BRAKE HEADQUARTERS | BR20444 |
| BRAKEBEST | 48011209, 81-125046, 96121, 96121FZN, 96121R, 96121RGS, BD125046 |
| BREMBO | 08.6897.10, 08.6897.11, 25190 |
| Bridgestone | 7005623 |
| CALIFORNIA DRUM & ROTOR | 125046 |
| CENTRIC | 120.47011, 120.47011CRY, 121.47011, 125.47011, 125.47011CRY, 126.47011CSL, 126.47011CSR, 126.47011SL, 126.47011SR, 127.47011CL, 127.47011CR, 127.47011L, 127.47011R, 128.47011CL, 128.47011CR, 128.47011L, 128.47011R, 227.47011L, 227.47011R, 320.47011, 321.47011 |
| CENTURY | 9497 |
| CONTINENTAL-CONTITECH | CW10705 |
| Casting Numbers | 210629-C, 310431, 325011 |
| Centric Parts | 120.47011, 120.47011CRY, 121.47011, 125.47011, 125.47011CRY, 126.47011CSL, 126.47011CSR, 126.47011SL, 126.47011SR, 127.47011CL, 127.47011CR, 127.47011L, 127.47011R, 128.47011CL, 128.47011CR, 128.47011L, 128.47011R, 227.47011L, 227.47011R, 320.47011, 321.47011 |
| DELPHI | RB260 |
| DURA CORP | BR31043, BR3104302 |
| DuraGo | BR31043, BR3104302 |
| EIS BRAKES | D17633 |
| EUROROTOR | SU786 |
| GREN | 61501 |
| GUARDIAN | 52-125046 |
| ITM ENGINE COMPONENTS | 1601321 |
| MAGMA PRODUCTS | PMR525025 |
| MIDAS | BR1694 |
| MIGHTY DISTRIBUTING SYSTEM | 31043 |
| MONROE BRAKES | BD125046 |
| NAPA BRAKES | SDK6266, TSR644 |
| NEWTEK AUTOMOTIVE | 31043 |
| Newtek Automotive USA | 31043 |
| Omnicraft | QBRR59 |
| PARTS MASTER | P125046 |
| POWERSTOP | JBR359EVC |
| PROMAX | 14-31043 |
| QUALIS | 31043 |
| QUALITY BRAND | 31043, Q505 |
| QUINTON HAZELL | BDC4604 |
| ROCKHILL | 31043 |
| SAAB | 32006222, 32009802 |
| STANDARD ROTORS AND DRUMS | 31043 |
| SUBARU | 26310AA040, 26310AA050, 26310AA051, 26700FE010, 26700FE030, 26700FE080, 26710AC020 |
| THE UNIVERSAL GROUP | 139431 |
| TRW | DF3092S |
| TopNotch | TN96121GEO |
| UAP | 31043 |
| Ultra Brake | SU-786 |
| Universal | 139431 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50744 |
| WABCO | PS125046 |
| WABCO - Archived | PS125046 |
| WAGNER | BD125046, BD125046E |
| WAGNER BRAKE | BD125046, BD125371, BD126494, SB96121 |
| WINHERE | 661123, YH1123 |
| WORLDPAC | 1407-78292, 1427-499362 |
| Wagner Brake | BD125046E |
RAYBESTOS 96121R Fits Vehicles
- Saab 9-2X (2005-2006)
- Subaru Forester (1998-2008)
- Subaru Impreza (1993-2007)
- Subaru Legacy (1990-1999)
