CENTRIC 120.46053 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

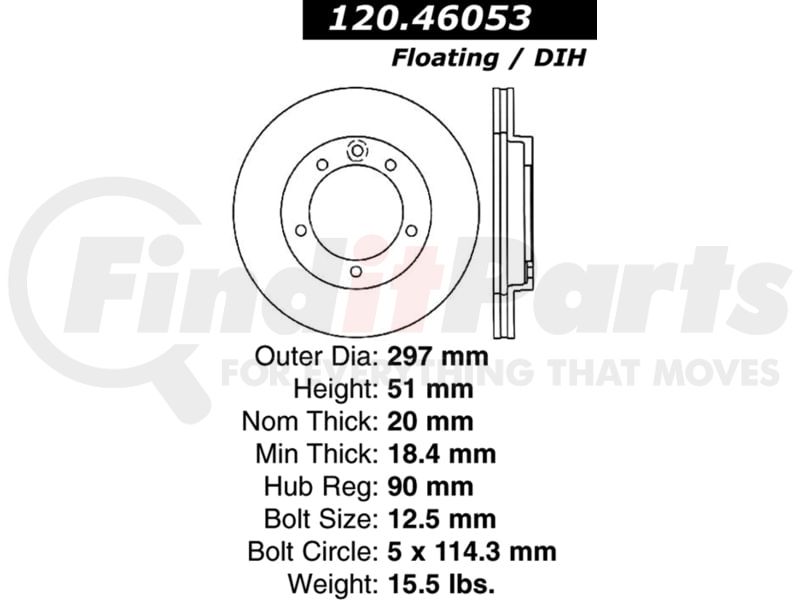

CENTRIC 120.46053 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating / DIH |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 3 |
| Max Pb Drum Dia [cntrc] Mm | 169.000 |
| Max Pb Drum Dia [cntrc] In | 6.654 |
| Weight [cntrc] Kgs | 7.050 |
| Weight [cntrc] Lbs | 15.500 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 18.400 MM |
| Discard Thickness | 0.724 IN |
| Nominal Thickness | 0.787 IN |
| Nominal Thickness | 20.000 MM |
| Hat Finish | Painted |
| Overall Height | 51.000 MM |
| Overall Height | 2.008 IN |
| Outside Diameter | 297.000 MM |
| Outside Diameter | 11.693 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 168.000 MM |
| Nominal Drum Diameter | 6.614 IN |
| Bearings Included | No |
| Center Hole Diameter | 90.000 MM |
| Center Hole Diameter | 3.543 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.500 MM |
| Stud/Lug Hole Diameter | 0.492 IN |
CENTRIC 120.46053 Cross References
| Brand | Part Number |
|---|---|
| ESW14501400 | |
| WAGNER | BD125421 |
CENTRIC 120.46053 Fits Vehicles
- Mitsubishi 3000GT (1994-1999)
- Dodge Stealth (1994-1996)
