(888) 312-8812 Login SignupCENTRIC 120.45018 Premium Brake Rotor
Tap to view 1 more
$19.11
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.45018 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

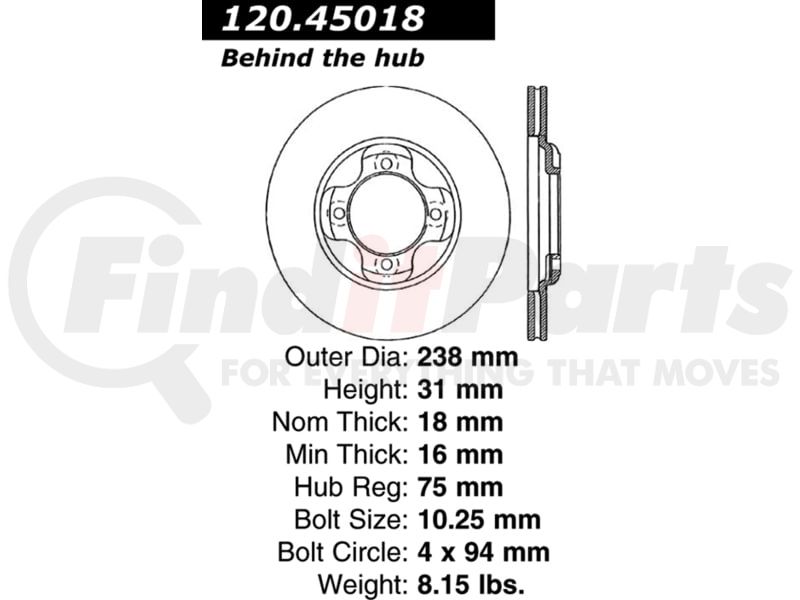

CENTRIC 120.45018 Specifications
Product Attributes
| Vane Style [cntrc] | Curved |
| Weight [cntrc] Lbs | 8.150 |
| Disc Mounting [cntrc] | Behind the Hub |
| Weight [cntrc] Kgs | 3.700 |
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 16.000 MM |
| Discard Thickness | 0.630 IN |
| Nominal Thickness | 0.709 IN |
| Nominal Thickness | 18.000 MM |
| Hat Finish | Painted |
| Overall Height | 1.220 IN |
| Overall Height | 31.000 MM |
| Outside Diameter | 238.000 MM |
| Outside Diameter | 9.370 IN |
| Mounting Bolt Hole Quantity | 4 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 75.000 MM |
| Center Hole Diameter | 2.953 IN |
| Mounting Bolt Hole Circle Diameter | 94.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.701 IN |
| Mounting Bolt Hole Diameter | 10.250 MM |
| Mounting Bolt Hole Diameter | 0.404 IN |
CENTRIC 120.45018 Cross References
| Brand | Part Number |
|---|---|
| EHT890002GD | |
| RAYBESTOS | 96015, 96015R |
CENTRIC 120.45018 Fits Vehicles
- Mazda 323 (1986-1989)
- Mercury Tracer (1987-1989)
- Mercury Capri (1991-1994)
