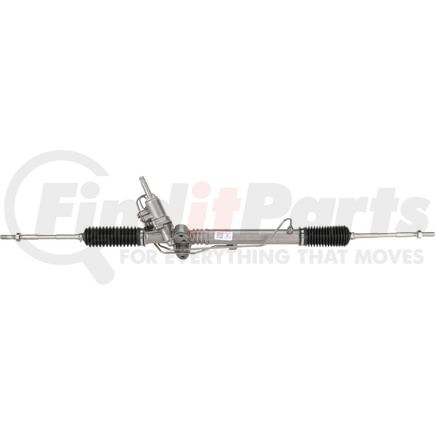

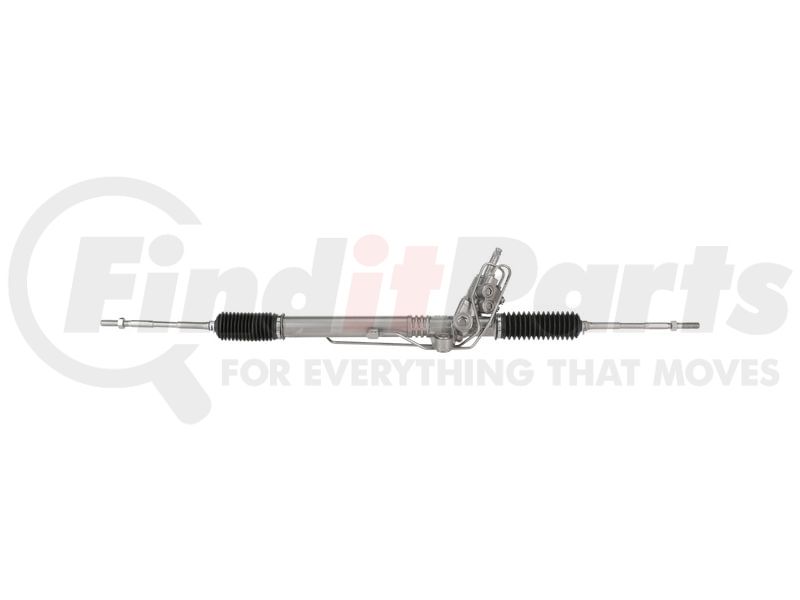

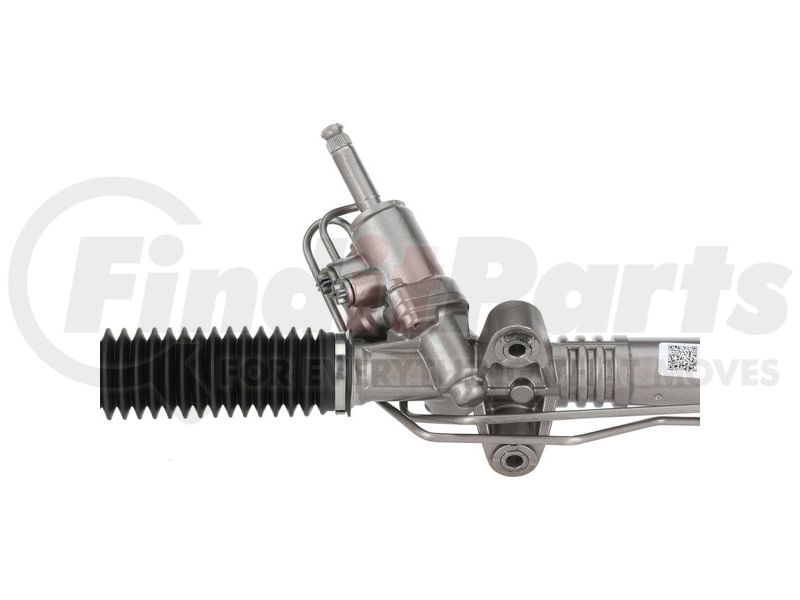

(888) 312-8812 Login SignupMAVAL 93337M Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93337M
Tap to view 2 more
$39199
+$200.00 core deposit
Total price w/ core: $591.99
In Stock
Get it by Thursday, Jan 8
MAVAL 93337M Part Description
Manufacturer
Product Description
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93337M
Features & Benefits
- Housings, shafts and critical components are thoroughly cleaned using the latest technology to greatly reduce the potential for contamination, and inspected thoroughly to detect any cracks or leaks
- Shafts and housings are polished, bearings and snap rings are replaced to restore rack performance and eliminate leaks
- Electronic solenoids are tested to verify proper performance
- All seals, PTFE and O-rings are replaced with new, OE-equivalent components to prevent leaks, ensure longevity and reliability
- A protective paint coating is applied, bellows and fasteners are high-quality components to protect against corrosion, rust and optimize the longevity of the unit
- Tested on our state-of-the-art test equipment to simulate actual operational conditions, inspecting for leaks, noises, and overall functionality to ensure the unit meets or exceeds OE specifications
- 100 percent centered after testing to reduce installation time
93337m
MAVAL 93337M Specifications
Product Attributes
| Casting Material | Steel; Aluminum |
| Distance Between Mounting Holes | 85.73 MM |
| Distance Between Mounting Holes | 3.38 IN |
| Hose Port Type | Seat |
| Input Shaft Diameter | 0.69 IN |
| Input Shaft Diameter | 17.42 MM |
| Input Shaft Length | 2.94 IN |
| Input Shaft Length | 74.6 MM |
| Mounting Hole Quantity | 2 |
| Pressure Port Thread Size | M14 x 1.5 |
| Rack Length | 1247.78 MM |
| Rack Length | 49.13 IN |
| Return Port Thread Size | M16 x 1.5 |
| Thread Length | 57.66 MM |
| Thread Length | 2.27 IN |
| Tie Rod Ends Included | Yes |
| Total Turns Lock To Lock | 2.81 |
Additional Information
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708940000 |
| Harmonized Tariff Code (HTS) | 8708940000 |
| NAFTA Preference Criterion Code | B |
| UPC | 00843613108738 |
MAVAL 93337M Fits Vehicles
- Subaru Impreza (2008-2011)
