Maval 93325M - Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93325M
$43849
+$133.33 Core Deposit
Total price w/ core: $571.82
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MAVAL part description
93325m
Product Description

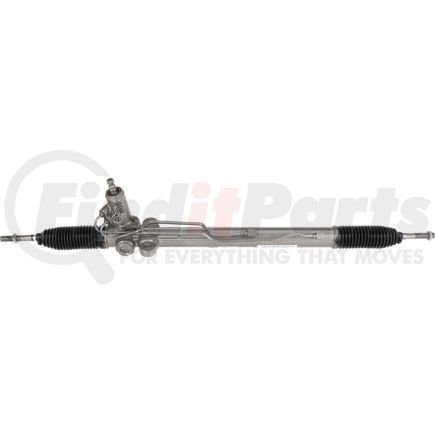

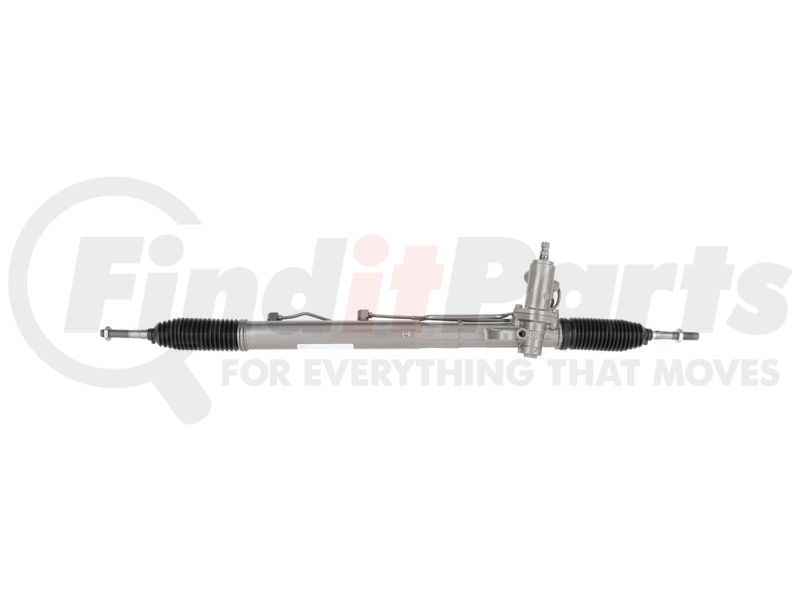

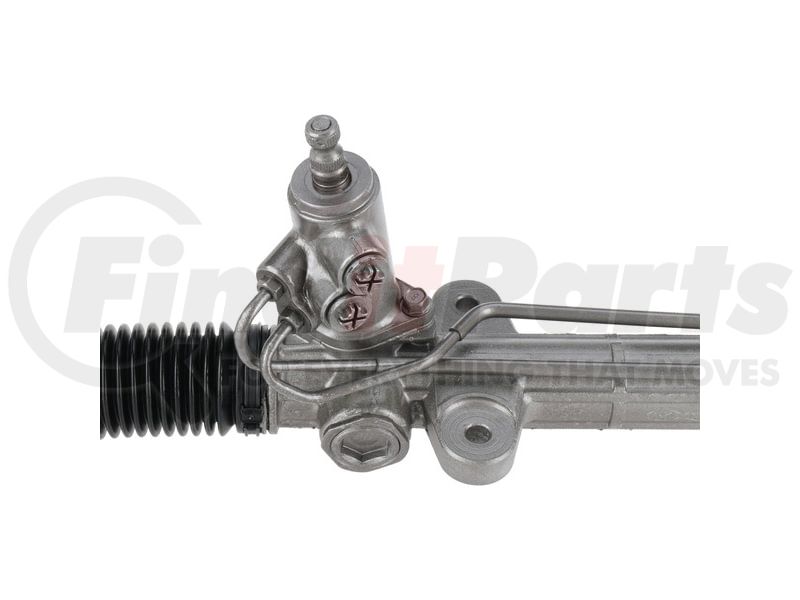

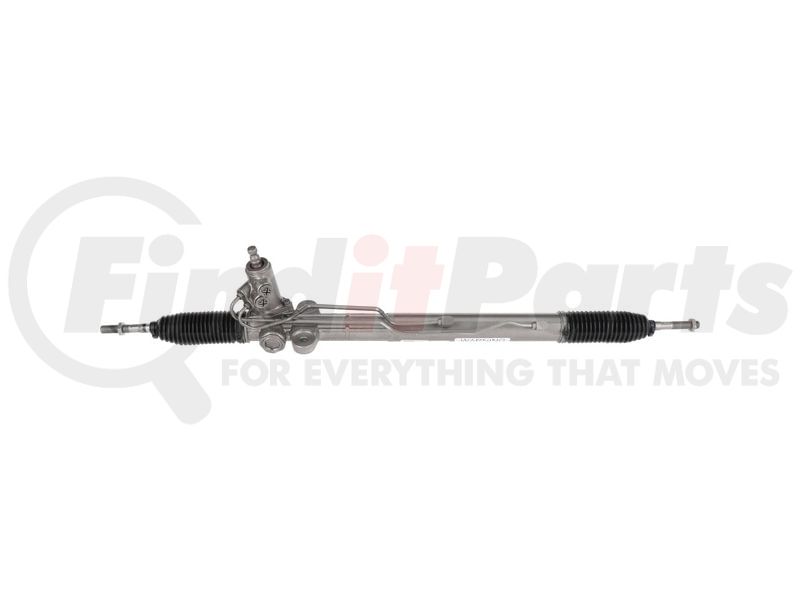

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93325M
Features & Benefits
- Housings, shafts and critical components are thoroughly cleaned using the latest technology to greatly reduce the potential for contamination, and inspected thoroughly to detect any cracks or leaks
- Shafts and housings are polished, bearings and snap rings are replaced to restore rack performance and eliminate leaks
- Electronic solenoids are tested to verify proper performance
- All seals, PTFE and O-rings are replaced with new, OE-equivalent components to prevent leaks, ensure longevity and reliability
- A protective paint coating is applied, bellows and fasteners are high-quality components to protect against corrosion, rust and optimize the longevity of the unit
- Tested on our state-of-the-art test equipment to simulate actual operational conditions, inspecting for leaks, noises, and overall functionality to ensure the unit meets or exceeds OE specifications
- 100 percent centered after testing to reduce installation time
Product Attributes
| Casting Material | Aluminum |
| Distance Between Mounting Holes | 3.78 IN |
| Distance Between Mounting Holes | 96 MM |
| Hose Port Type | O-Ring |
| Inner Tie Rods Included | Yes |
| Input Shaft Length | 31 MM |
| Input Shaft Length | 1.22 IN |
| Mounting Hole Quantity | 4 |
| Pressure Port Thread Size | M16 x 1.5 |
| Rack Length | 43.78 IN |
| Rack Length | 1112 MM |
| Return Port Thread Size | M16 x 1.5 |
| Thread Length | 55 MM |
| Thread Length | 2.17 IN |
| Total Turns Lock To Lock | 3 |
Additional Information
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708940000 |
| Harmonized Tariff Code (HTS) | 8708940000 |
| NAFTA Preference Criterion Code | B |
| UPC | 00843613108615 |
Fits Vehicles
- Hyundai Santa Fe (2010-2012)
- Kia Sorento (2011-2013)
