MAVAL part description

93275m

Product Description

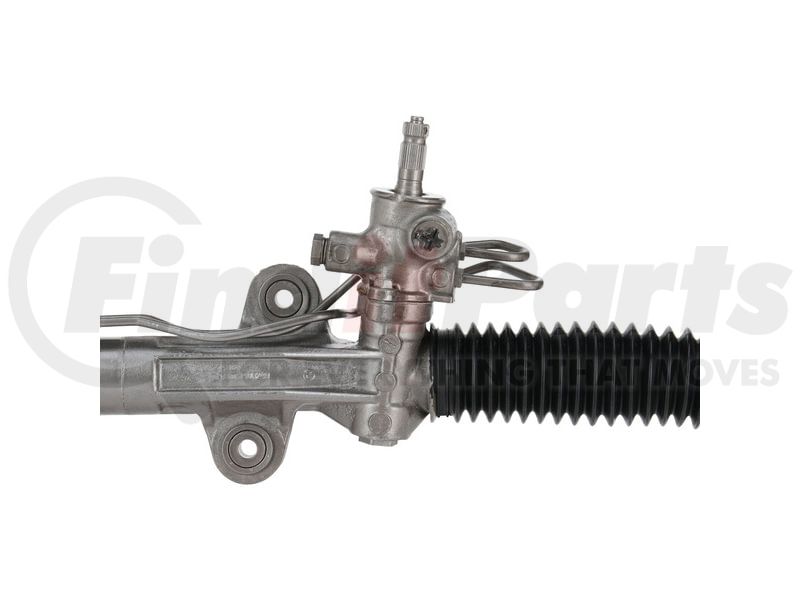

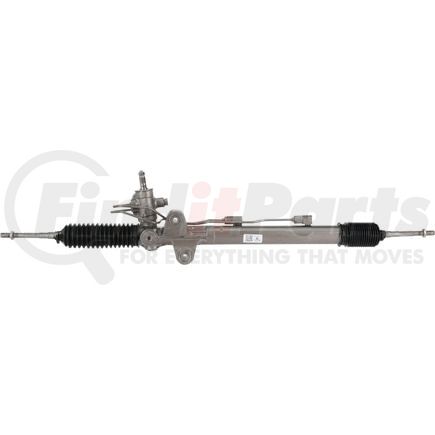

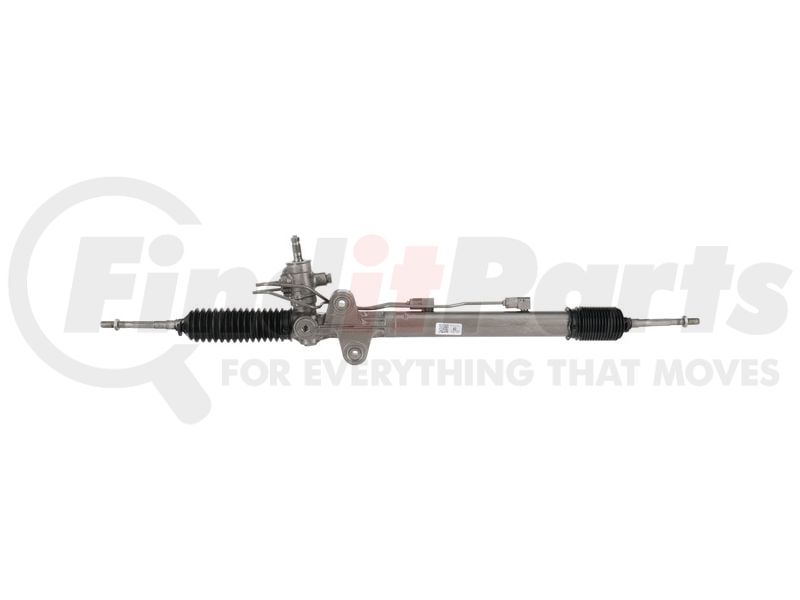

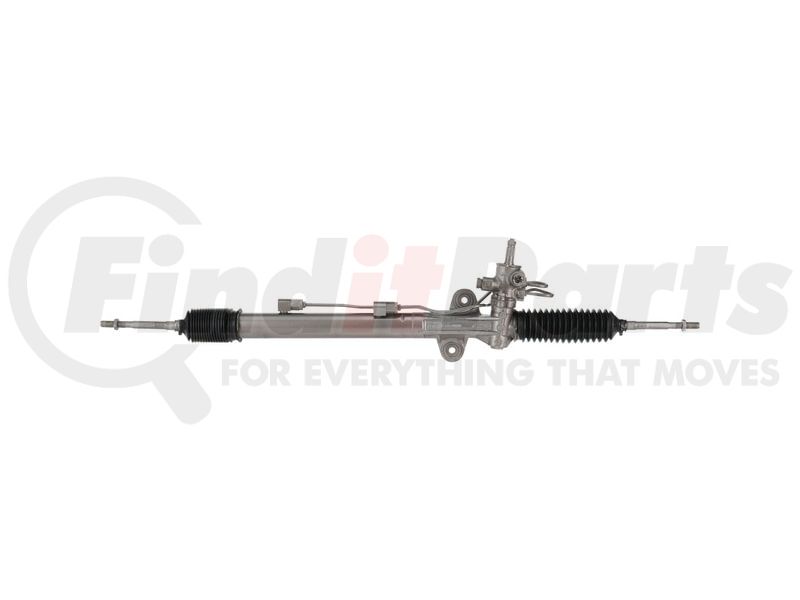

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93275M

Features & Benefits

  • Housings, shafts and critical components are thoroughly cleaned using the latest technology to greatly reduce the potential for contamination, and inspected thoroughly to detect any cracks or leaks
  • Shafts and housings are polished, bearings and snap rings are replaced to restore rack performance and eliminate leaks
  • Electronic solenoids are tested to verify proper performance
  • All seals, PTFE and O-rings are replaced with new, OE-equivalent components to prevent leaks, ensure longevity and reliability
  • A protective paint coating is applied, bellows and fasteners are high-quality components to protect against corrosion, rust and optimize the longevity of the unit
  • Tested on our state-of-the-art test equipment to simulate actual operational conditions, inspecting for leaks, noises, and overall functionality to ensure the unit meets or exceeds OE specifications
  • 100 percent centered after testing to reduce installation time
  • To avoid warranty and potential failure issues, we highly recommend flushing the system and to refill using the Honda/ Acura OE Fluid to ensure proper longevity and performance.

Product Attributes

Distance Between Mounting Holes 3.94 IN
Distance Between Mounting Holes 100.076 MM
Inner Tie Rods Included Yes
Input Shaft Diameter 16.599 MM
Input Shaft Diameter 0.654 IN
Input Shaft Length 63.5 MM
Input Shaft Length 2.5 IN
Mounting Hole Quantity 2
New Or Remanufactured Remanufactured
Pressure Port Thread Size M16x1.50
Rack Length 45.687 IN
Rack Length 1160.45 MM
Return Port Thread Size M16x1.50
Total Turns Lock To Lock 3.25
Type Hydraulic

Additional Information

Warranty Time 24
Warranty Time UOM MO
Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8708940000
Harmonized Tariff Code (HTS) 8708940000
NAFTA Preference Criterion Code B
UPC 00843613108127

Fits Vehicles

  • Acura MDX (2007-2013)
