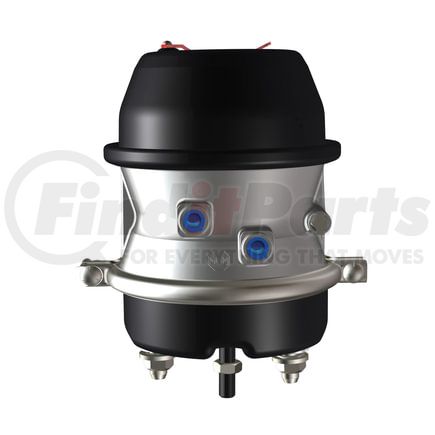

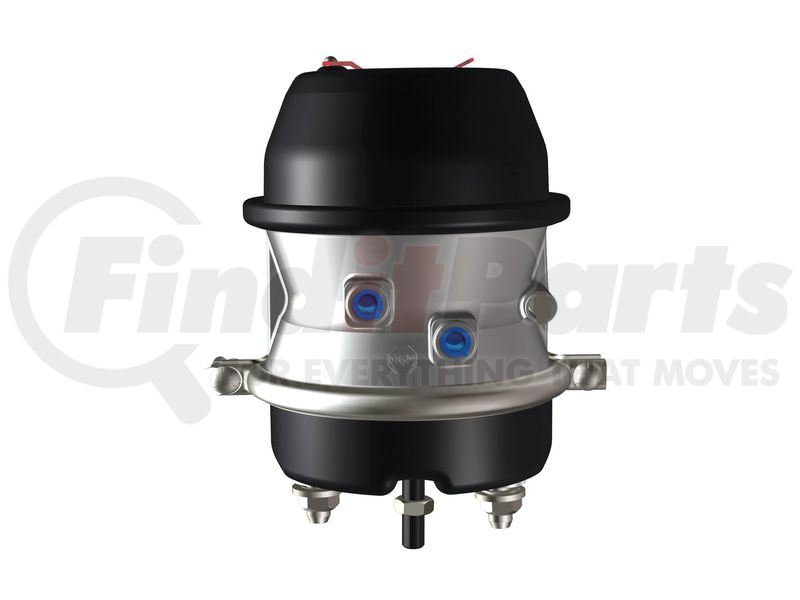

3232062 by MGM BRAKES - Air Brake Chamber - Combination

MGM Brakes 3232062 - Air Brake Chamber - Combination

Part Number
3232062
Manufacturer
MGM BRAKES
Description

Air Brake Chamber - Combination

details

$304.49

3 day lead time

We verify inventory within 1 business day before charging your payment method.
Order online or call us at (888) 312-8812 to confirm. We'll find it for you!
New! No hassle Return Policy details
Free Economy shipping on orders over $499 details
This item will ship about 3 days after the date of purchase
Pay over 3-12 months with Affirm Logo. Learn more

MGM BRAKES part description

General Description

On-Highway

Features and Benefits

  • Tamper Resistant Design
  • Center Hole Diaphragm (U.S Patent No. 5,507,217)
  • Epoxy-Coated Head, Non-Pressure Chamber and Lower Push-Rod Assembly
  • Epoxy Coated Return Spring
  • Center Hole Shield
  • Square Port Bosses (Long Stroke Identification)
  • Weatherseal Plug
  • Heavy-Duty 8-Gauge Steel Non-Pressure Chamber (Type 3030 Models)-(9-Gauge on All Other Sizes)
  • Polymer Push-Rod Guides
  • Heavy-Duty Nylon Reinforced Diaphragms
  • Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
  • Stroke Alert
  • Externally Stored Release Bolt
  • 3" (76.2 mm) Long Stroke
  • Molded Nitrile Rubber Air Seal
  • Heavy-Duty Power Spring 145 lb (65.8 kg) Additional Parking Brake Force @ 1.25 inches (31.8 mm) Of Stroke
  • Composite Guide -Corrosion Fighter Technology

Technical Specifications

Stroke 3.00" (76.2 mm)
Weight lb (kg) Combination 20.4 lb (9.3 kg)
Weight lb (kg) Single 11.7 lb (5.3 kg)
A 9.99" (253.7 mm)
B 7.61" (193.3 mm)
C 8.32" (211.3 mm)
D 8.21" (208.5 mm)
E 4.75" (120.7 mm)
F 5/8" - 11 UNC (M16 x 1.5 - 6g)
G 5/8" - 18 UNF (M16 x 1.5 - 6g)
Inlets 3/8" - 18 NPTF (M16 x 1.5 - 6H)
X - Min. (aftermarket unit only) 8.00" (203.2 mm)

Product Description

Double Diaphragm Brake Chamber

Features & Benefits

  • Tamper Resistant
  • Long Life Power Spring
  • Center Hole Diaphragm & Shield
  • Epoxy-Coated Head, NPC/Lower Push-Rod, Return Spring
  • HD NPC
  • Polymer Guide
  • HD Reinforced Diaphragm (or Neoprene)
  • Stroke Alert
  • Molded Rubber Seal
  • Composite Guide

Product Attributes

Artic Assembly Artic Assembly
Chamber Type Double Diaphragm Brake
Diaphragm Diameter Rubber IN
Heavy Duty Heavy Duty
Mounting Bolt Length 1.540 IN
Mounting Bolt Thread 5/8-11
Port Size 3/8-18 NPTF
Spring Size 30
Service Size 30
Stroke 3.00 IN
Welded Yoke Threaded Yoke
UNIT Production

Additional Information

Country of Origin (Primary) US
21
VMRS Code 013004000
California Proposition 65 Warning California residents see Prop 65 Warning(s)
