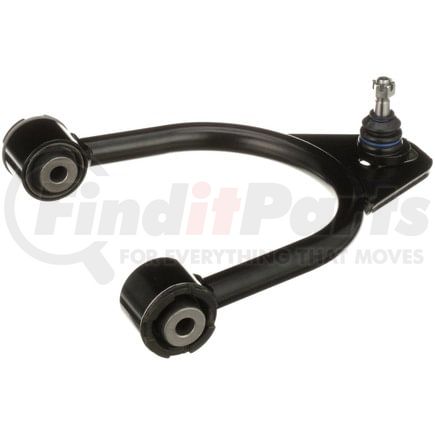

Delphi TC6172 - Control Arm and Ball Joint Assembly
$32699
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Tubular |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | Yes |
| Greaseable | No |
| Control Arm Maximum Width | 13.032 IN |
| Control Arm Maximum Width | 331.00 MM |
| Control Arm Color | Black |
| Ball Joint Stud Length | 2.638 IN |
| Ball Joint Stud Length | 67.00 MM |
| Control Arm Maximum Length | 11.713 IN |
| Control Arm Maximum Length | 297.50 MM |
| Mounting Hole Diameter | 1.890 IN |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Mounting Hole Diameter | 48.01 MM |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604334058 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
Fits Vehicles
- Dodge Challenger (2008)
- Dodge Charger (2006-2008)
- Chrysler 300 (2005-2008)
- Dodge Magnum (2005-2008)
