RANCHO part description
Product Description

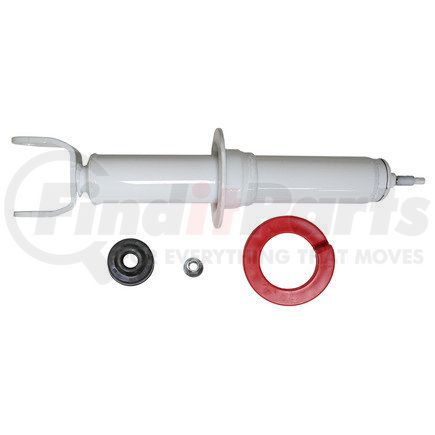

RS5000X Suspension Strut
Features & Benefits
- IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
- MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
- STRONG AND DURABLE -- Features a nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, application-specific sintered iron piston for enhanced structural integrity and polyvinyl protective boot
- HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248degF
- HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
- REDUCES FADE -- Nitrogen gas pressurized to 60 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
- MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
- BUY WITH CONFIDENCE -- Comes with Rancho's Limited Lifetime Warranty
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
Product Attributes
| Body Type | SS4 |
| Compressed Length | 16.54 IN |
| Travel Length | 5.54 in |
| Body Color | White |
| Internal Construction Type | Dual Tube |
| Grade Type | Performance |
| Extended Length | 22.08 in |
| Adjustable | No |
| Lower Mount Type | Clevis Bracket Mount |
| Gas Charged | Yes |
| Body Diameter | 2.13 IN |
| Adjustable Damping | No |
| Dust Shield Included | No |
| Includes Bump Stop | Yes |
| Internal Rebound Bumper | Yes |
| Finish | Painted |
| Hydraulic Lockout | No |
| Lower Mount Code | Clev |
| Parts Pack(s) | P01768 |
| Compressed Length | 420.1 MM |
| Extended Length | 560.8 MM |
| Travel Length | 140.7 MM |
| Body Diameter | 54.1 MM |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | 01164 |
| UPC | 00039703013116 |
| UNSPSC | 25172007 |
Part Interchanges
Fits Vehicles
- Ram 1500 (2019-2024)
