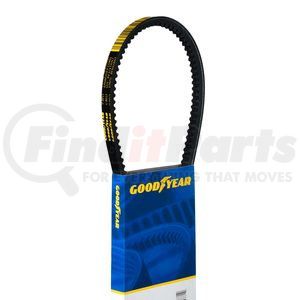

Goodyear Belts 24424 - Accessory Drive Belt - V-Belt, 42.4 in. Effective Length, EPDM
- Part Number
- 24424
- Manufacturer
- GOODYEAR BELTS
- Description
-
Accessory Drive Belt - V-Belt, 42.4 in. Effective Length, EPDM
details
$2149
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GOODYEAR BELTS part description
Product Description
V-Belt
Features & Benefits
- Meets or Exceeds OEM Specifications
- EPDM Rubber Compound known for its excellent resistance to heat, ozone, weathering, and abrasion, ensuring long-lasting durability in automotive applications.
- Long-life EPDM Rubber Compound
- Radial Cogged design reduces bending resistance and improves power transmission efficiency, leading to enhanced performance and longevity, ensuring the longevity of automotive engine systems.
- Radial Cog design to eliminate stress risers that can cause cracking
- Polyester Cord Reinforcement, providing superior tensile strength and resistance to stretching, ensuring reliable power transmission and reduced maintenance.
- Proprietary rubber formulation for quiet operation
- Precision ground sides helps reduce noise and vibration in automotive engine systems, enhancing overall driving comfort and smoothness.
- Precision ground sides for maximum pulley contact
- Temperature Resistance, suitable for automotive applications, these belts maintain their performance even in extreme operating conditions.
- High strength tensile cords designed for minimal tension decay and low maintenance
- Limited Lifetime Warranty
Product Attributes
| V-belt Profile | 17A |
| Top Width (mm) | 18.5 MM |
| Top Width (in) | 0.728 IN |
| Thickness (mm) | 11 mm |
| Thickness (in) | 0.433 In |
| Rib Angle | 36⁰ DD |
| Profile Series | 24 |
| Outside Circumference | 1091 mm |
| Outside Circumference | 42.97 in |
| Effective Length | 1077 mm |
| Effective Length | 42.4 in |
| Cord Material | Polyester |
| Item Weight (lbs) | 0.46 LB |
| Item Weight (kg) | 0.21 KG |
| Belt Material | EPDM |
| Angle | 36 DD |
| Color | Black |
| Construction | Cogged |
| Cross Section Designation | 17A |
| Grade Type | OE Performance |
| 9837 | Yes |
| Profile Type | 24 |
| Sae Standard | J636 |
| 9453 | J637 |
| Strand Quantity | 1 |
| Thickness | 0.433 IN |
| Thickness | 11 MM |
| Top Cogged | No |
| Top Width | 0.728 in |
| Top Width | 18.5 mm |
| Type | Automotive V-Belt |
Additional Information
| Stock Status | S |
| Warranty Time | 1 |
| Warranty Special | 1 Year Limited Warranty |
| Warranty Time UOM | YR |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (HTS) | 4010390000 |
| Harmonized Tariff Code (Schedule B) | 4010390000 |
| Canadian Harmonizing Tariff Code | 4010390000 |
| UPC | 00195199101826 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
Part Interchanges
GOODYEAR BELTS 24424 Cross Reference
We have 10 alternatives for the 24424 by GOODYEAR BELTS:
Fits Vehicles
- Freightliner FLC112 (1992, 1995-1996)
- Kenworth T600A (1991-1992)
- Peterbilt 375 (1993)
- Kenworth W900 (1993-1994)
- Kenworth T800 (1989, 1997-1998)
- Peterbilt 282 (1980)
- Peterbilt 200 (1978)
- Suzuki Aerio (2002)
- Ford F-250 (1974)
- Ford F-100 (1974)
- GMC Astro (1981-1988)
- Ford Custom (1970)
- Ford F4 (1948-1951)
- Ford F-3 (1948-1951)
- Ford F-2 (1948-1951)
- Ford F-1 (1948-1951)
- DeSoto Model SA (1932)
- DeSoto Model SC (1932)
- DeSoto Airflow (1934)
- Chrysler Series CO (1933)
- Saab Sonett (1974)
- Mercury Montego (1970-1972)
- Mercury Meteor (1962)
- Mercury Cyclone (1970)
- Mercury Cougar (1970-1972)
- Mercury Comet (1966-1967, 1971)
- Jaguar Mark X (1964-1966)
- Ford Torino (1970-1974)
- Ford Ranchero (1966-1967, 1971-1972)
- Ford Ranch Wagon (1958, 1970-1971)
- Ford Mustang (1970-1973)
- Ford Maverick (1971)
- Ford Gran Torino (1972-1974)
- Ford Falcon (1966-1967, 1970)
- Ford Fairlane (1957-1958, 1966-1968, 1970)
- Ford Custom 500 (1970-1971)
- Ford Country Squire (1958, 1971)
- Ford F-350 (1981)
- Ford E-350 Econoline Club Wagon (1977-1978)
- Ford E-350 Econoline (1977)
- Ford E-250 Econoline Club Wagon (1977-1978)
- Ford E-250 Econoline (1977)
- Ford E-150 Econoline Club Wagon (1977-1978)
- Ford E-150 Econoline (1977-1978)
- Ford E-100 Econoline Club Wagon (1977)
- Ford E-100 Econoline (1977)
