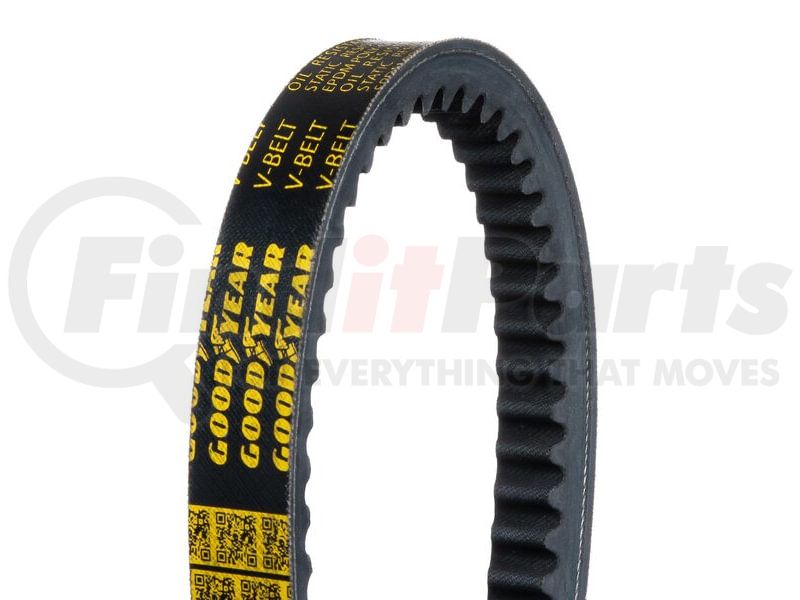

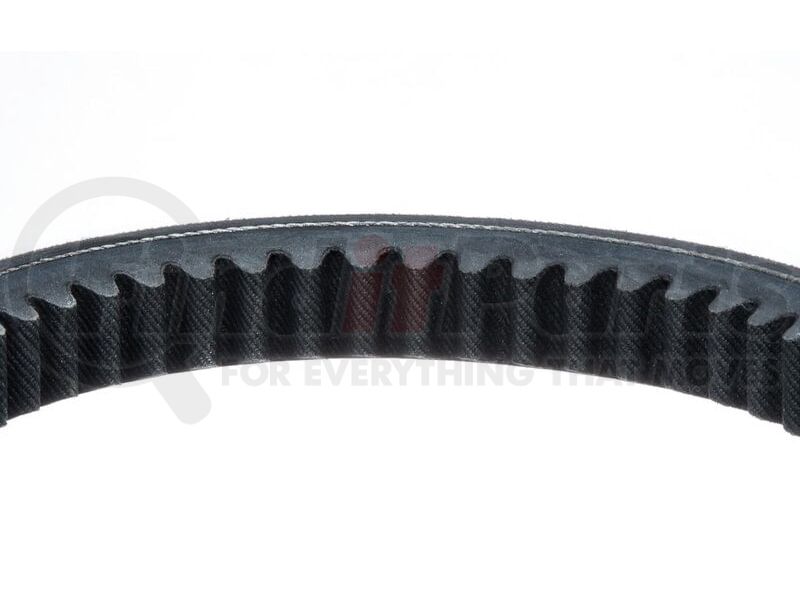

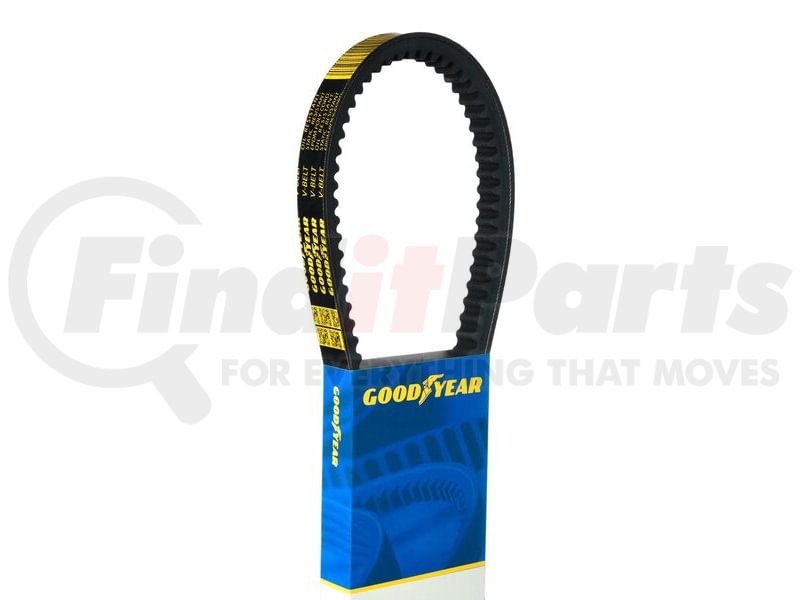

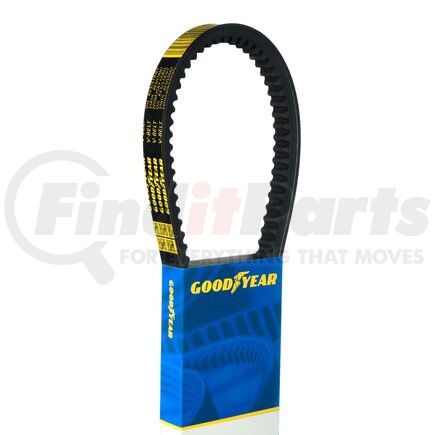

GOODYEAR BELTS 22517 - Accessory Drive Belt - V-Belt, 51.7 in. Effective Length, EPDM
- Part Number
- 22517
- Manufacturer
- GOODYEAR BELTS
- Description
-
Accessory Drive Belt - V-Belt, 51.7 in. Effective Length, EPDM
details
$2299
MSRP: $23.54
Save: $0.55
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
GOODYEAR BELTS part description
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
V-Belt

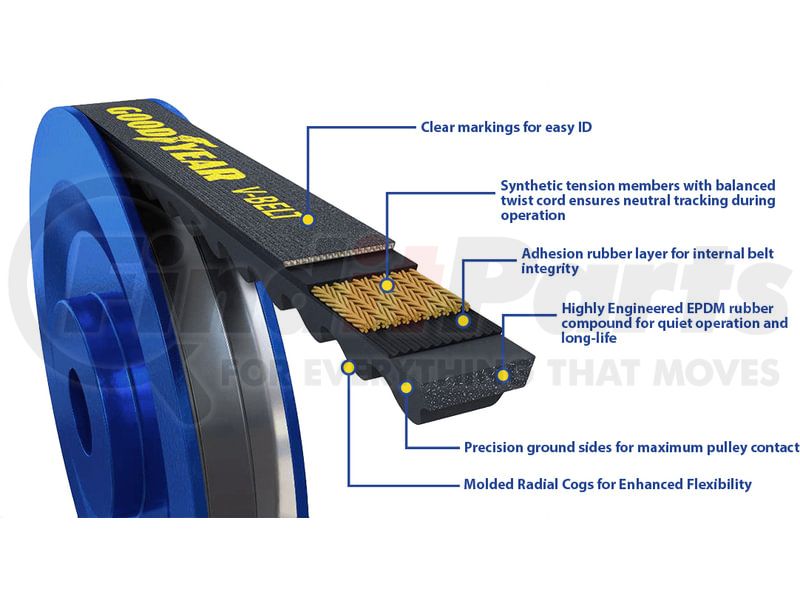

Features & Benefits
- Meets or Exceeds OEM Specifications
- Long-life EPDM Rubber Compound
- Radial Cog design to eliminate stress risers that can cause cracking
- Proprietary rubber formulation for quiet operation
- Precision ground sides for maximum pulley contact
- High strength tensile cords designed for minimal tension decay and low maintenance
- Limited Lifetime Warranty
Product Attributes
Rib Angle | 36⁰ DD |
Profile Series | 22 |
Outside Circumference | 1328 mm |
Outside Circumference | 52.27 in |
Effective Length | 1313 mm |
Effective Length | 51.7 in |
Cord Material | Polyester |
Item Weight (lbs) | 0.53 LB |
Item Weight (kg) | 0.24 KG |
Belt Material | EPDM |
V-belt Profile | 15A |
Top Width (mm) | 17 MM |
Top Width (in) | 0.669 IN |
Thickness (mm) | 10.5 mm |
Thickness (in) | 0.413 In |
Additional Information
Stock Status | S |
Warranty Time | 12 |
Warranty Special | 1 Year Limited Warranty |
Warranty Time UOM | MO |
Warranty Special UOM | TX |
Country of Origin (Primary) | IN |
Harmonized Tariff Code (HTS) | 4010323000 |
Harmonized Tariff Code (Schedule B) | 4010320000 |
UPC | 00195199101512 |
Part Interchanges
GOODYEAR BELTS 22517 Cross Reference
We have 3 alternatives for the 22517 by GOODYEAR BELTS:
Fits Vehicles
- Peterbilt 376 (1991-1992, 1994)
- Peterbilt 372 (1992-1994)
- Peterbilt 379 (1990-1994)
- Peterbilt 377 (1990-1994)
- Peterbilt 357 (1990-1994)
- Peterbilt 378 (1990-1994)
- Hino FA1415 (1993-1995)
- Hino FB1715 (1993-1995)
- Hino FB15 (1992)
- Hino FA15 (1992)
- Hino FA14 (1989-1991)
- Hino FB14 (1988-1991)
- UD 3000 (1996-1997)
- UD 3000HD (1994)
- UD 1800 (1995-1998)
- UD 2300 (1994-1997)
- UD 2800 (1994)
- UD 2600 (1994-1997)
- UD 2000 (1994)
