Goodyear Belts 15480 - Accessory Drive Belt - V-Belt, 48 in. Effective Length, EPDM

Part Number
15480
Manufacturer
GOODYEAR BELTS
Description

Accessory Drive Belt - V-Belt, 48 in. Effective Length, EPDM

details

$15.99

In stock

limited availability at this price!

New! No hassle Return Policy details
Free Economy shipping on orders over $499 details
Orders placed before 2pm EST will ship same day
Get it by Thursday, Dec 4
Pay over 3-12 months with Affirm Logo. Learn more

GOODYEAR BELTS part description

Product Description

V-Belt

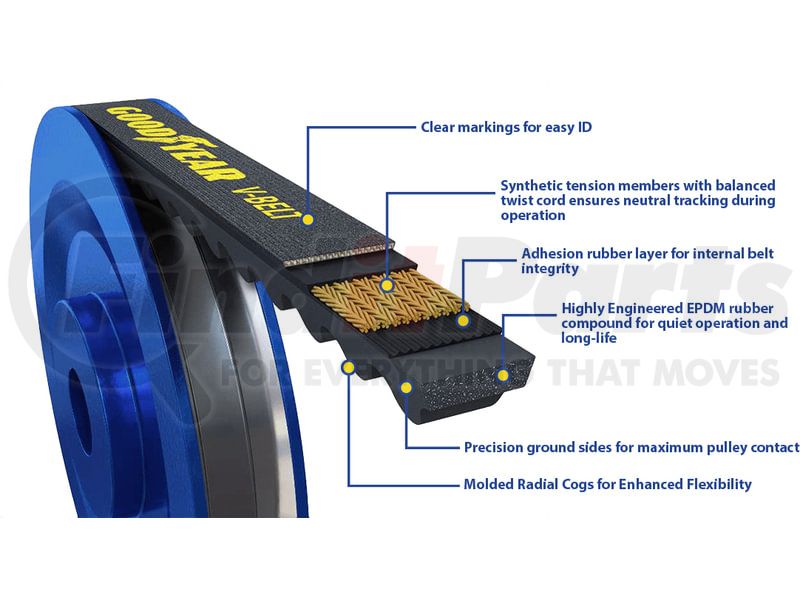

Features & Benefits

  • Meets or Exceeds OEM Specifications
  • Long-life EPDM Rubber Compound
  • Radial Cogged design reduces bending resistance and improves power transmission efficiency, leading to enhanced performance and longevity, ensuring the longevity of automotive engine systems.
  • Radial Cog design to eliminate stress risers that can cause cracking
  • Polyester Cord Reinforcement, providing superior tensile strength and resistance to stretching, ensuring reliable power transmission and reduced maintenance.
  • Proprietary rubber formulation for quiet operation
  • Precision ground sides helps reduce noise and vibration in automotive engine systems, enhancing overall driving comfort and smoothness.
  • Precision ground sides for maximum pulley contact
  • Temperature Resistance, suitable for automotive applications, these belts maintain their performance even in extreme operating conditions.
  • High strength tensile cords designed for minimal tension decay and low maintenance
  • Limited Lifetime Warranty

Product Attributes

V-belt Profile 11A
Top Width (mm) 11.5 MM
Top Width (in) 0.453 IN
Thickness (mm) 8 mm
Thickness (in) 0.315 In
Rib Angle 36⁰ DD
Profile Series 15
Outside Circumference 1225 mm
Outside Circumference 48.25 in
Effective Length 1219 mm
Effective Length 48 in
Cord Material Polyester
Item Weight (lbs) 0.22 LB
Item Weight (kg) 0.1 KG
Belt Material EPDM
Angle 36 DD
Color Black
Construction Cogged
Cross Section Designation 11A
Grade Type OE Performance
Notched Yes
Profile Type 15
Sae Standard J636
SAE Standard J637
Strand Quantity 1
Thickness 0.315 IN
Thickness 8 MM
Top Cogged No
Top Width 0.453 in
Top Width 11.5 mm
Type Automotive V-Belt

Additional Information

Stock Status S
Warranty Time 1
Warranty Special 1 Year Limited Warranty
Warranty Time UOM YR
Warranty Special UOM TX
Country of Origin (Primary) IN
Harmonized Tariff Code (HTS) 4010390000
Harmonized Tariff Code (Schedule B) 4010390000
Canadian Harmonizing Tariff Code 4010390000
UPC 00195199099765
VMRS Code 065005003
UNSPSC 26111801

Part Interchanges

GOODYEAR BELTS 15480 Cross Reference

We have 155 alternatives for the 15480 by GOODYEAR BELTS:

Fits Vehicles

  • Suzuki Aerio (2002)
  • Pontiac GTO (1970)
  • Plymouth Fury III (1968)
  • Plymouth Barracuda (1967-1968)
  • Oldsmobile F85 (1965)
  • Mercury Cougar (1969)
  • Ford Torino (1969)
  • Ford Pinto (1973)
  • Ford Mustang (1969)
  • Dodge Polara (1967)
  • Dodge Coronet (1967, 1969)
  • Dodge Charger (1969)
  • Chevrolet G10 Van (1968)
  • Cadillac Eldorado (1968)
  • Buick Riviera (1974)
  • Buick GS 455 (1972)
  • Lincoln Mark IV (1974-1976)
  • Lincoln Continental (1974-1976)
  • Ford Thunderbird (1974-1976)
  • Pontiac Phoenix (1979)
  • Pontiac LeMans (1972, 1981)
  • Pontiac Grandville (1975)
  • Pontiac Grand Prix (1970-1971, 1976-1977, 1979)
  • Pontiac Grand Am (1975)
  • Pontiac Firebird (1970, 1974-1984)
  • Pontiac Catalina (1976)
  • Oldsmobile Custom Cruiser (1981)
  • Oldsmobile Delta 88 (1977, 1980-1981, 1985)
  • Oldsmobile Cutlass Supreme (1978-1980)
  • Oldsmobile Cutlass Calais (1983)
  • Oldsmobile Cutlass Salon (1978)
  • Oldsmobile Cutlass (1978-1980)
  • Oldsmobile 98 (1980)
  • GMC V1500 (1987)
  • GMC Sprint (1977)
  • GMC S15 (1982-1986)
  • GMC S15 Jimmy (1983-1986)
  • GMC R2500 (1987)
  • GMC P3500 (1981-1982, 1990, 1992-1993)
  • GMC K3500 (1979-1981, 1985)
  • GMC K35 (1978)
  • GMC K2500 (1979-1986)
  • GMC K25 (1975-1978)
  • GMC K1500 (1979-1983, 1985-1986)
  • GMC K15 (1975-1978)
  • GMC Jimmy (1977, 1979-1981, 1983)
  • GMC G3500 (1980-1982)
  • GMC G35 (1977)
  • GMC G2500 (1980, 1983)
  • GMC G1500 (1982)
  • GMC C3500 (1979, 1981-1985)
  • GMC C35 (1975-1978)
  • GMC C2500 (1979-1982)
  • GMC C25 (1976-1978)
  • GMC C1500 Suburban (1981)
  • GMC C1500 (1979-1985)
  • GMC C15 (1975-1978)
  • Chevrolet V30 (1987)
  • Chevrolet V20 Suburban (1987)
  • Chevrolet V10 (1987)
  • Chevrolet S10 (1982-1986)
  • Chevrolet S10 Blazer (1983-1986)
  • Chevrolet R30 (1987)
  • Chevrolet R20 (1987-1988)
  • Chevrolet P30 (1981-1982, 1984-1993)
  • Chevrolet P20 (1981)
  • Chevrolet Nova (1975-1979)
  • Chevrolet Monte Carlo (1975-1978, 1980-1981)
  • Chevrolet Malibu (1975-1981)
  • Chevrolet K30 (1979-1986)
  • Chevrolet K20 Suburban (1977-1979, 1981, 1986)
  • Chevrolet K20 (1975, 1979-1986)
  • Chevrolet K10 Suburban (1975, 1977-1984)
  • Chevrolet K10 (1975, 1979-1986)
  • Chevrolet Impala (1975-1981)
  • Chevrolet G30 (1975-1983)
  • Chevrolet G20 (1975-1983)
  • Chevrolet G10 (1975-1982)
  • Chevrolet El Camino (1975-1978, 1980-1982)
  • Chevrolet Citation (1981-1983)
  • Chevrolet Caprice (1975-1980, 1985)
  • Chevrolet Camaro (1975-1976, 1978-1981, 1984)
  • Chevrolet C30 (1975, 1979, 1981-1986)
  • Chevrolet C20 Suburban (1975-1977, 1979, 1982-1983)
  • Chevrolet C20 (1975, 1977, 1980-1986)
  • Chevrolet C10 Suburban (1976-1983)
  • Chevrolet C10 (1975, 1977, 1979-1986)
  • Chevrolet K5 Blazer (1979-1986)
  • Chevrolet Blazer (1988-1989, 1991)
  • Chevrolet Bel Air (1975)
  • Cadillac Fleetwood (1968, 1982, 1984)
  • Cadillac DeVille (1968, 1980-1982)
  • Buick Regal (1978, 1980)
  • Buick LeSabre (1975-1976, 1980-1981, 1983-1985)
  • Buick Electra (1974-1976, 1978)
  • AM General Hummer (1992-1993)
  • Plymouth Trailduster (1978)
  • Plymouth Sundance (1992)
  • Plymouth Neon (1995-1999)
  • Plymouth Duster (1975)
  • Jeep Wagoneer (1984)
  • Jeep Comanche (1986)
  • Jeep Cherokee (1984-1986)
  • Jeep CJ7 (1980)
  • Jeep CJ5 (1980)
  • Dodge W350 (1984-1985, 1987, 1990)
  • Dodge W250 (1984-1987, 1990)
  • Dodge W150 (1984-1987, 1990)
  • Dodge W100 (1986-1987)
  • Dodge Ramcharger (1978, 1981-1988)
  • Dodge Omni (1984)
  • Dodge Monaco (1978)
  • Dodge Neon (1995-1999)
  • Dodge Diplomat (1989)
  • Dodge Daytona (1990)
  • Dodge Dart (1967-1968, 1975-1976)
  • Dodge Dakota (1990-1991)
  • Dodge D350 (1984-1987, 1990)
  • Dodge D250 (1984-1987, 1990)
  • Dodge D150 (1982-1990)
  • Dodge D100 (1980, 1984-1989)
  • Dodge B350 (1984-1988)
  • Dodge B250 (1984-1990)
  • Dodge B150 (1984-1990)
  • Dodge 400 (1982)
  • Chrysler Town & Country (1982)
  • Chrysler New Yorker (1982)
  • Chrysler LeBaron (1981, 1990)
  • Chrysler Imperial (1981)
  • Alfa Romeo Spider (1984-1985)
