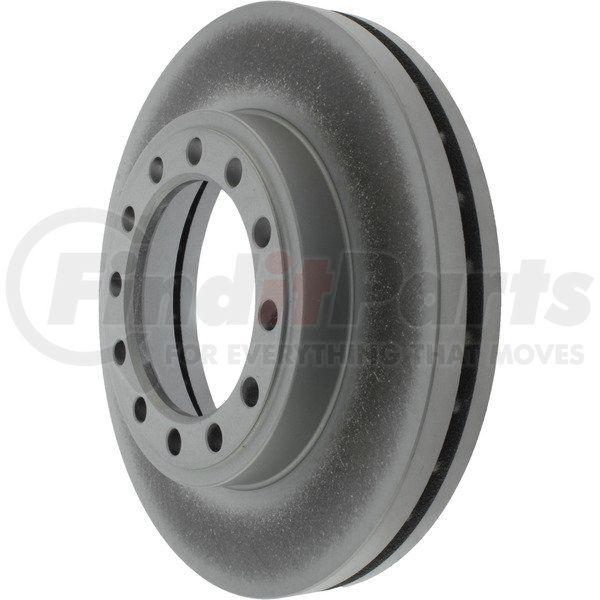

Centric 320.76001F - Centric GCX Rotor with Full Coating
$7849
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 10.680 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 23.500 |
| Notes [cntrc] | Hat Shaped |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Behind the Hub |
| Misc Holes [cntrc] | 0 |
| Discard Thickness | 1.260 IN |
| Discard Thickness | 32.000 MM |
| Nominal Thickness | 35.000 MM |
| Nominal Thickness | 1.378 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 62.500 MM |
| Overall Height | 2.461 IN |
| Outside Diameter | 282.000 MM |
| Outside Diameter | 11.102 IN |
| Mounting Bolt Hole Quantity | 12 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 110.000 MM |
| Center Hole Diameter | 4.331 IN |
| Mounting Bolt Hole Circle Diameter | 136.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.354 IN |
| Mounting Bolt Hole Diameter | 12.600 MM |
| Mounting Bolt Hole Diameter | 0.496 IN |
Fits Vehicles
- Isuzu NPR (1986-1997)
- GMC W4500 Forward (1992-1997)
- Chevrolet W4500 Tiltmaster (1992-1997)
- GMC W3500 Forward (1995-1997)
- Chevrolet W3500 Tiltmaster (1995-1997)
