(888) 312-8812 Login SignupCENTRIC 320.66045F Centric GCX Rotor with Full Coating
$9349
Limited availability at this price!
In Stock
Get it by Monday, Feb 16
CENTRIC 320.66045F Part Description
Manufacturer
Product Description

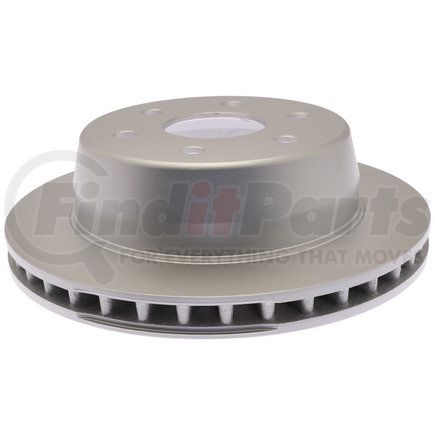

Centric GCX Rotor with Full Coating
Features & Benefits
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.66045F Specifications
Product Attributes
| Max Pb Drum Dia [cntrc] Mm | 211.600 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 20.250 |
| Max Pb Drum Dia [cntrc] In | 8.331 |
| Weight [cntrc] Kgs | 9.200 |
| Disc Mounting [cntrc] | Floating / DIH |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Straight |
| Discard Thickness | 1.122 IN |
| Discard Thickness | 28.500 MM |
| Nominal Thickness | 30.000 MM |
| Nominal Thickness | 1.181 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 95.500 MM |
| Overall Height | 3.760 IN |
| Outside Diameter | 329.700 MM |
| Outside Diameter | 12.980 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 210.100 MM |
| Nominal Drum Diameter | 8.272 IN |
| Bearings Included | No |
| Center Hole Diameter | 3.094 IN |
| Center Hole Diameter | 78.600 MM |
| Mounting Bolt Hole Circle Diameter | 139.700 MM |
| Mounting Bolt Hole Circle Diameter | 5.500 IN |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 16.500 MM |
| Stud/Lug Hole Diameter | 0.650 IN |
CENTRIC 320.66045F Cross References
CENTRIC 320.66045F Fits Vehicles
- Cadillac Escalade EXT (2002-2006)
- Cadillac Escalade ESV (2003-2006)
- GMC Yukon XL 1500 (2000-2006)
- GMC Yukon (2000-2006)
- GMC Sierra 1500 (2001-2006)
- GMC Savana 1500 (2003-2014)
- Chevrolet Tahoe (2000-2006)
- Chevrolet Suburban 1500 (2000-2006)
- Chevrolet Silverado 1500 (2001-2005)
- Chevrolet Express 1500 (2003-2014)
- Chevrolet Avalanche 1500 (2002-2006)
- Cadillac Escalade (2002-2006)
