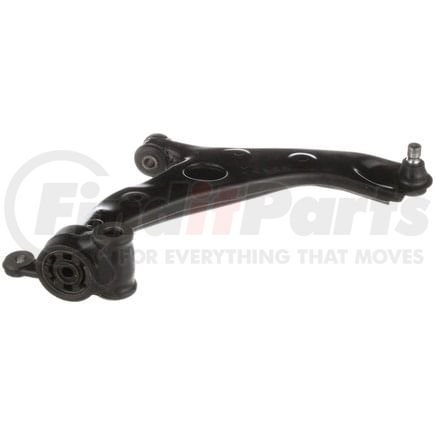

(888) 312-8812 Login SignupDELPHI TC7800 Control Arm and Ball Joint Assembly
Tap to view 13 more
$13399
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 23
DELPHI TC7800 Part Description
DELPHI TC7800 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Grooved |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 1.220 IN |
| Control Arm Maximum Width | 31.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.787 IN |
| Ball Joint Thread Diameter | 20.0 MM |
| Ball Joint Stud Length | 2.756 IN |
| Ball Joint Stud Length | 70.00 MM |
| Control Arm Maximum Length | 5.906 IN |
| Mounting Hole Diameter | 0.925 IN |
| Mounting Hole Diameter | 23.50 MM |
| Bushing Material | Rubber |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Control Arm Maximum Length | 150.01 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604367759 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC7800 Part Interchanges
| Brand | Part Number |
|---|---|
| Mazda | GHP934350M, KD3534350L |
| MOOG Chassis Products | 102-7955 |
| Dorman | 520-339, CB65213, CB65213PR |
| N/A | KD35-34-350G, G46C34350, KD35-34-350D, KD35-34-350F, GHP934350C, GHP934350D, CMS761213, CB65213, GS761213, CB65213PR, RK623522 |
DELPHI TC7800 Fits Vehicles
- Mazda 6 (2014-2020)
- Mazda CX-5 (2013-2016)
