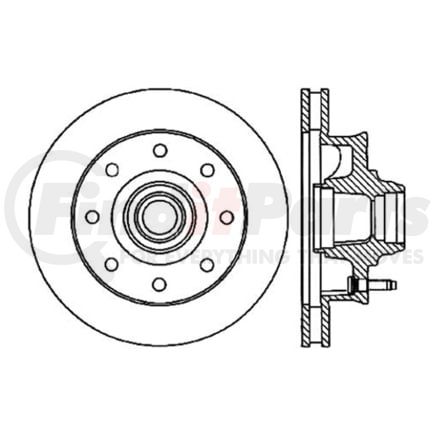

CENTRIC 120.66014 Part Description
Manufacturer
CENTRIC 120.66014 Specifications
Product Attributes
| Inner Seal # [cntrc] | 417.66008 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Inner Bearing # [cntrc] | 410.91035 |
| Vane Style [cntrc] | Straight |
| Disc Mounting [cntrc] | Hub & Rotor |
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Kgs | 16.820 |
| Weight [cntrc] Lbs | 37.000 |
| Outer Bearing # [cntrc] | 415.66000 |
| Outer Race # [cntrc] | 416.66000 |
| Discard Thickness | 30.860 MM |
| Discard Thickness | 1.215 IN |
| Nominal Thickness | 32.700 MM |
| Nominal Thickness | 1.287 IN |
| Hat Finish | Coated |
| Stud Thread Diameter | 14.000 MM |
| Overall Height | 126.100 MM |
| Overall Height | 4.965 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 317.200 MM |
| Rotor Outside Diameter | 12.488 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.500 MM |
| Bearings Included | No |
| Center Hole Diameter | 116.700 MM |
| Center Hole Diameter | 4.594 IN |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Stud/Lug Hole Quantity | 8 |
