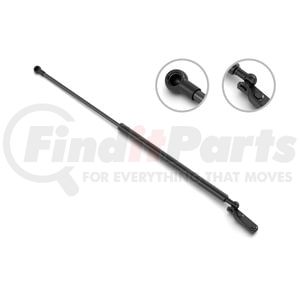

Stabilus 3B214388 - Liftgate Lift Support (R)
$2349
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
STABILUS part description
Lift Support
Product Description
Liftgate Lift Support (R)
Features & Benefits
- For best results, replace in pairs.
- Features a special piston that compensates for cold weather.
- Due to the function of this part it must be mated with a separate part on the opposite side.
- Part coatings tested to automotive standards for corrosion resistance.
- Easy to install and require no special tools.
- Based on the OE design to ensure proper fit form and function.
- For best results replace in pairs.
LIFTGATE LIFT SUPPORT (R)
Product Attributes
| NonVehicle Specific | N |
| Transmission Specific | N |
| Engine Specific | N |
| High Performance | N |
| Small Engine | N |
| Marine | N |
| MotorCycleRV | N |
| IndustrialOff Highway | N |
| Personal Watercraft | N |
| Snowmobile | N |
| Agricultural Equipment | N |
| Heavy Truck | N |
| Medium Truck | N |
| CarLight Truck | Y |
| Application Specific | Y |
| Prop 65 Chemical | DEHP |
| Prop 65 Warning | Warning: This product contains a chemical known to the State of California to cause cancer, birth defects or other reproductive harm. |
| Prop 65 Affected | Yes |
| Type | GAS |
| Maximum Force | 720 NW |
| End 2 Mount Diameter | 10.0 MM |
| End 1 Mount Diameter | 10.0 MM |
| Cylinder Outside Diameter | 22 MM |
| Inner Shaft Diameter | 10 MM |
| Compressed Length | 391 MM |
| Extended Length | 585 MM |
| Maximum Force | 162 LB |
| End 2 Mount Diameter | 0.394 IN |
| End 1 Mount Diameter | 0.394 IN |
| Cylinder Outside Diameter | 0.866 IN |
| Inner Shaft Diameter | 0.394 IN |
| Compressed Length | 15.39 IN |
| Extended Length | 23.03 in |
| End 2 Material | Nylon |
| End 2 Type | Ball Socket |
| End 1 Material | Nylon |
| End 1 Type | Ball Socket |
| Mounting Hardware Included | No |
| EXT_NonVehicle Specific | N |
| EXT_Transmission Specific | N |
| EXT_Engine Specific | N |
| EXT_High Performance | N |
| EXT_Small Engine | N |
| EXT_Marine | N |
| EXT_MotorCycleRV | N |
| EXT_IndustrialOff Highway | N |
| EXT_Personal Watercraft | N |
| EXT_Snowmobile | N |
| EXT_Agricultural Equipment | N |
| EXT_Heavy Truck | N |
| EXT_Medium Truck | N |
| EXT_CarLight Truck | Y |
| EXT_Application Specific | Y |
| EXT_Prop 65 Chemical | DEHP |
| EXT_Prop 65 Warning | WARNING: Cancer and Reproductive Harm www.p65warnings.ca.gov |
| EXT_Prop 65 Affected | Yes |
| Stroke Length | 194 MM |
| Stroke Length | 7.64 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Country of Origin 2 | US |
| Country of Origin 3 | DE |
| Harmonized Tariff Code (HTS) | 8302303010 |
| Harmonized Tariff Code (Schedule B) | 8302303010 |
| UPC | 00194879002101 |
Part Interchanges
Fits Vehicles
- Chevrolet Equinox (2010-2015)
