ATE BRAKE PRODUCTS 605609 Part Description
Manufacturer
Product Description

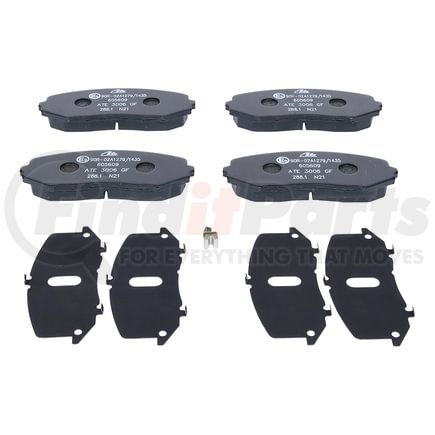

ATE Original Semi-Metallic Front Disc Brake Pad Set 605609 for Suzuki
Features & Benefits
- Accessories are often included in the brake pad package for problem free installation
- Full braking power instantly, no fading with ATE
- Low heat transmission prevents pedal failure
- Optimum comfort behavior avoids squeal and shudder
ATE BRAKE PRODUCTS 605609 Specifications
Product Attributes
| Friction Material Composition | Semi-metallic |
| Mounting Hardware Included | No |
| Pad Shims Included | Yes |
| FMSI Number | 8307-D1188 |
| Pad Wear Sensor Included | Yes |
| Pad Wear Sensor Type | Mechanical |
| Friction Material Attachment | Integrally Molded |
| Inner Pad Friction Material Thickness | 16.40 MM |
| Outer Pad Friction Material Thickness | 16.40 MM |
| Slotted | Yes |
| Chamfered Edges | No |
| Abutment Clips Included | No |
| Prepared For Pad Wear Sensor | No |
| Adhesive Backed Pad Shim | No |
| Backing Material | steel |
| Brake Lubricant Included | No |
| ECE-R90 Certified | Yes |
| Friction Surface Scorched | No |
| Inner Pad Height | 54.70 MM |
| Inner Pad Width | 138.00 MM |
| Outer Pad Height | 54.70 MM |
| Outer Pad Width | 138.00 MM |
| Pad Quantity | 4 |
| Pad Shim Material | Metal |
| Better Brakes Law SAE Environmental Compliance Level | N |
Additional Information
| Country of Origin (Primary) | CZ |
| Harmonized Tariff Code (HTS) | 8708305040 |
| EU | |
| UPC | 04006633349529 |
ATE BRAKE PRODUCTS 605609 Cross References
| Brand | Part Number |
|---|---|
| Bendix | 572584B |
| Bosch | 0 986 494 241 |
| Brembo | P 79 018, P79018N |
| Delphi | LP2001 |
| FMSI | 8307-D1188 |
| Ferodo America | FDB4060, FSL4060 |
| Hella | 8DB 355 012-351, T1600 |
| Jurid | 572584J |
| Raybestos Brakes | EHT1188H, MGD1188CH, PGD1188C, SGD1188C |
| Suzuki | 5520065J00, 5520065J01, 5520065J02, 5520065J20, 5520065J21, 5520065J22, 5520065J23, 5520065J24, 5520065J25, 5520065J26 |
| TRW | GDB3436, GDB3443 |
| Textar | 24346 171 1 4, 2434601 |
| Valeo | 301877, 598877 |
| Wagner Brake | QC1188, ZD1188 |
ATE BRAKE PRODUCTS 605609 Fits Vehicles
- Suzuki Grand Vitara (2006-2013)
